Directions for Use Chapter 2 Mounting and Operating Instructions 7

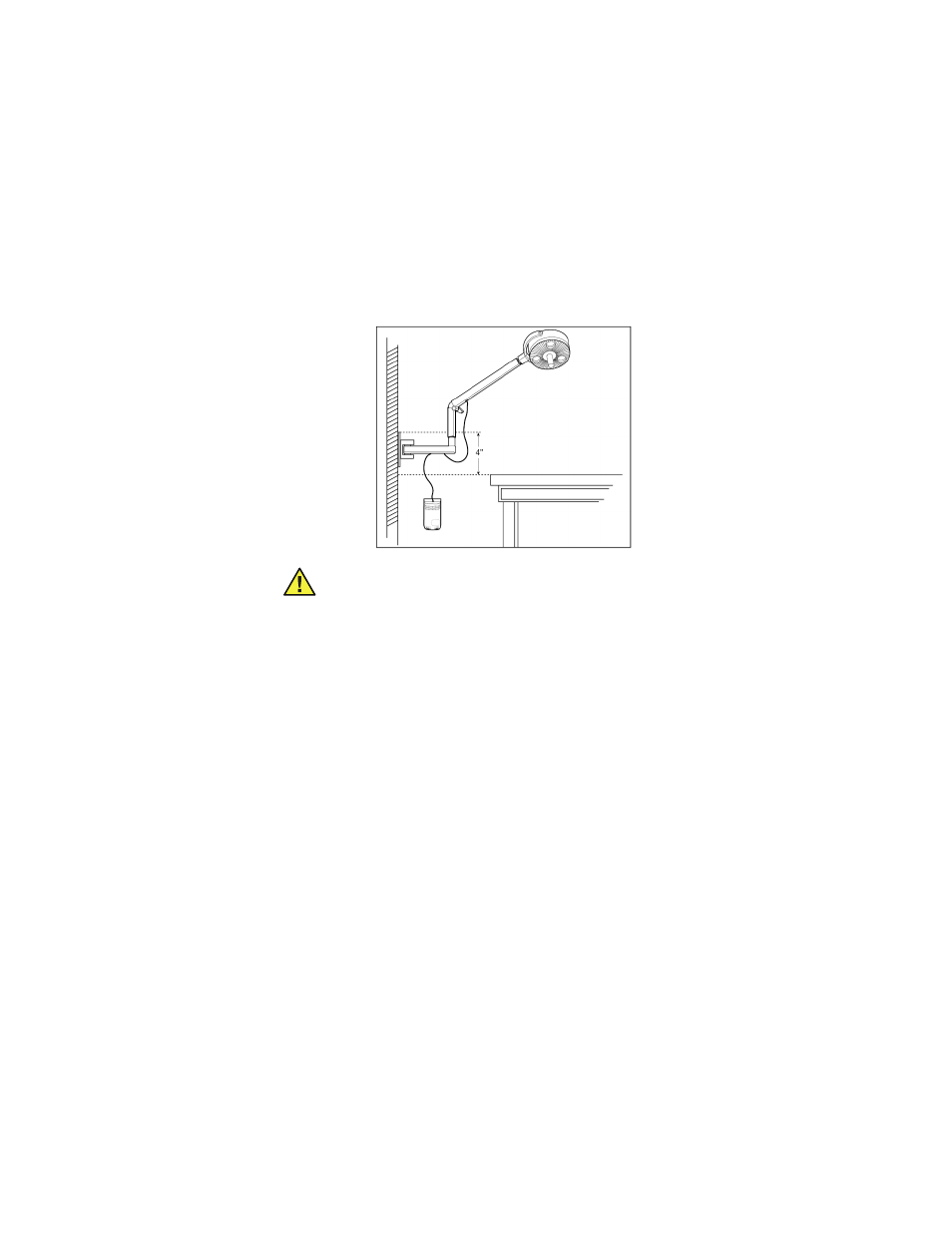

Wall Mount Set-up
The LS200 Procedure Light arm is designed not to go beyond 90°
and the working distance is 24" (60cm). To ensure proper
placement on the wall, locate the top edge of the wall plate 4"
(10cm) above the working surface.
To mount to a wall stud:
1. Remove wall mount assembly and hardware kit from box.
2. Select mounting location on a stud in the wall that is within 8'
(2.4m) of electrical outlet.
3. Using wall plate as a template, place on selected location on
wall, level plate and mark both holes.
4. Remove wall plate and drill pilot holes using 0.12" (3mm) drill
bit.
Caution DO NOT mount into sheetrock. Mount the
LS200 Procedure Light Arm into a wall stud.
Note Use a carpenter’s level to ensure precise, drift-free
movement of the wall plate.
