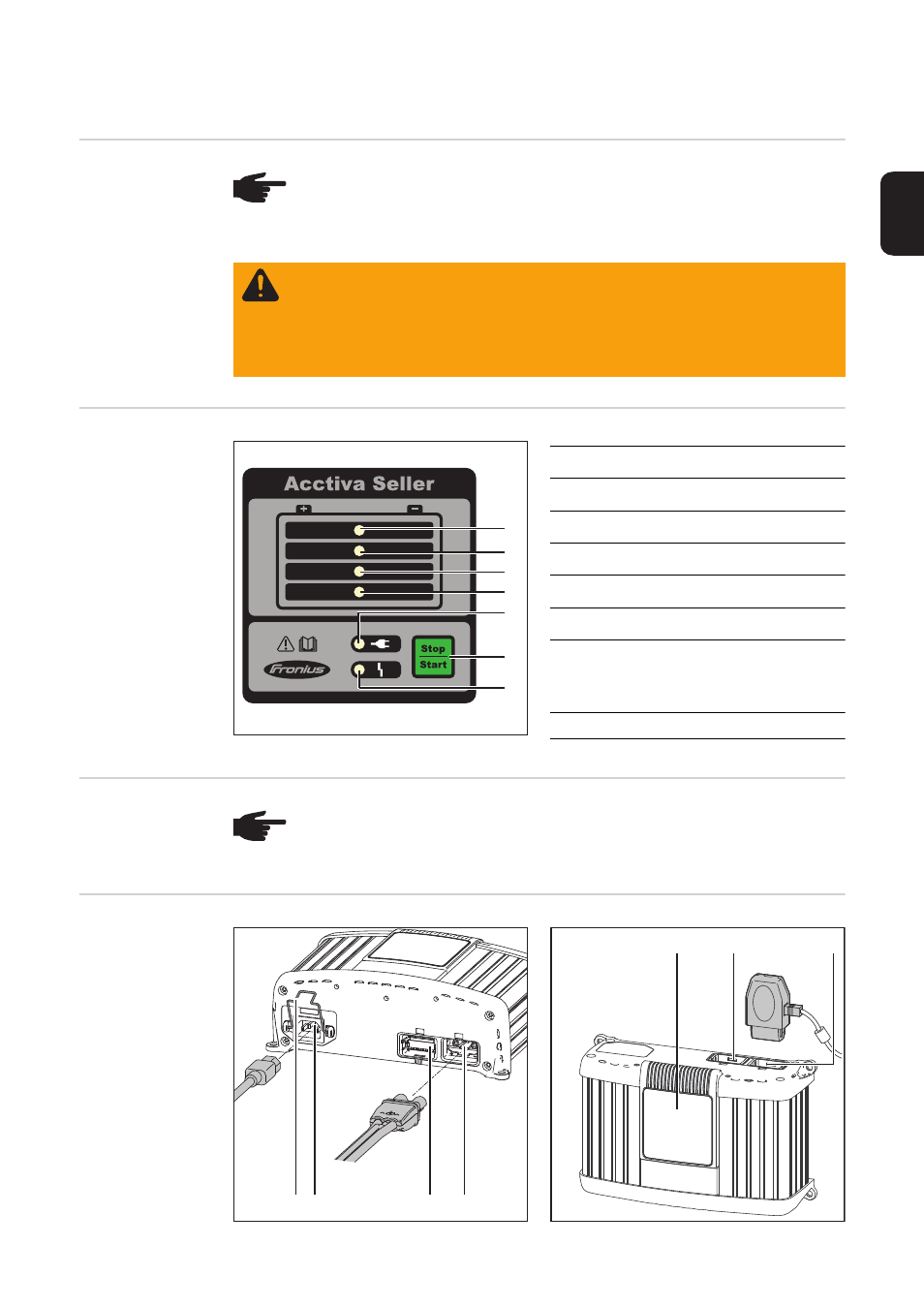

Control elements and connections
General remarks
Control panel
No. Function
(1) 100% charge level indicator
(2) 75% charge level indicator
(3) 50% charge level indicator
(4) 25% charge level indicator
(5) Ready indicator
(6) Stop/Start and setup button
for interrupting and restarting char-
ging
(7) Error indicator
Plugging in op-
tions
Connections
NOTE! As a result of firmware updates, you may find that there are functions
available on your unit that are not described in these operating instructions or vice
versa. Certain illustrations may also differ slightly from the actual control elements
on your device. However, these controls function in exactly the same way.
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. Do not use the functions described until you have thoroughly read and
understood the following documents:
-
these operating instructions
- all the operating instructions for the system components, especially the safe-
ty rules
(4)
(3)
(2)
(1)
(6)
(5)
(7)
NOTE! Danger of damage to charger and accessories. Only plug in options and
system add-ons when the mains plug is unplugged and the charging cables are
disconnected from the battery.
(1)(2) (3) (4)
(6) (7) (5)
