INSTALLATIONS

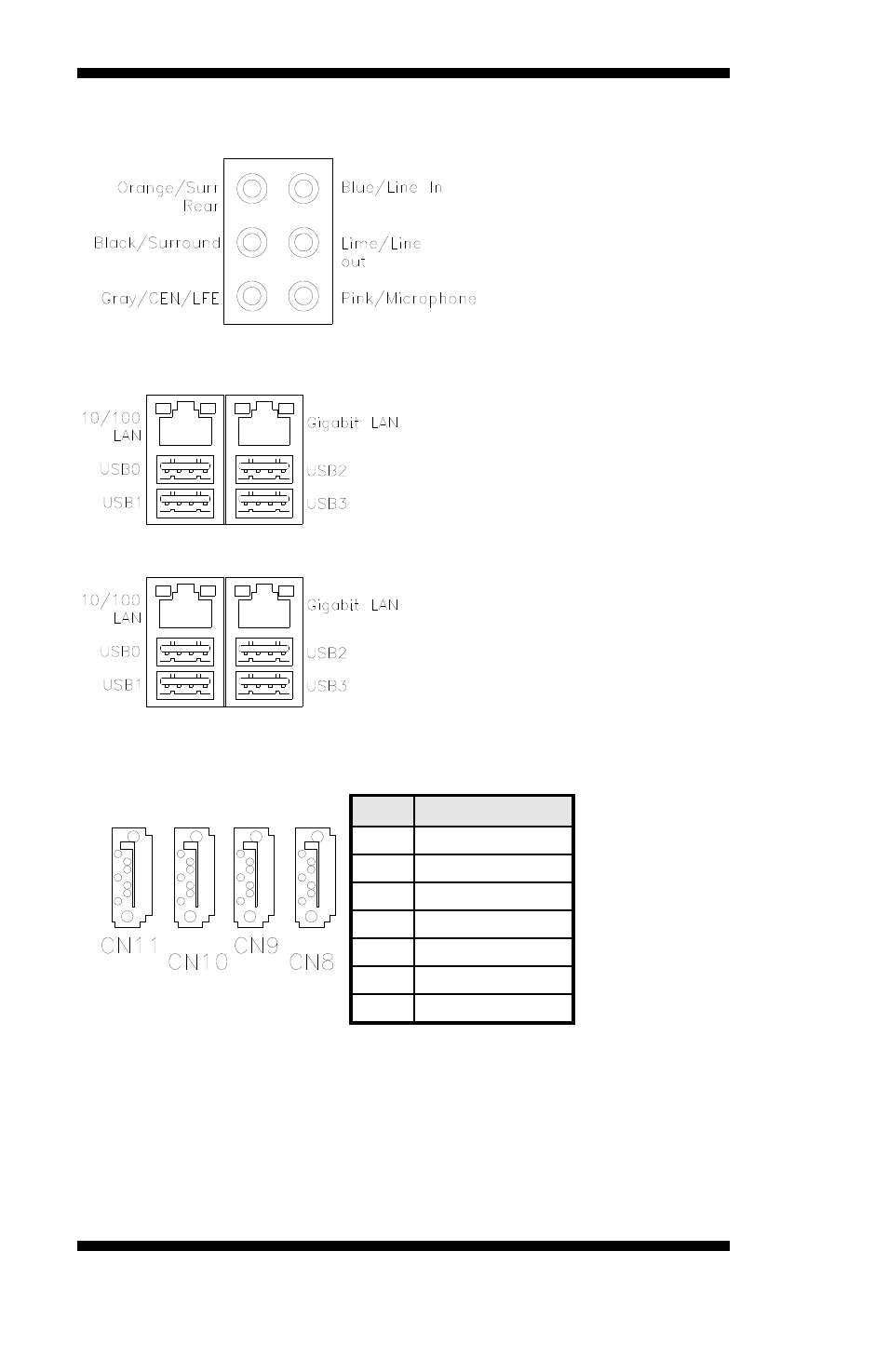

CN5: Audio Connector
CN6: 10/100 RJ-45 and USB0/1 Connector
CN7: GbE RJ-45 and USB2/3 Connector
CN11, CN10, CN9, CN8: SATA0/1/2/3 Connector
Pin #
Signal Name
1 Ground 2 TX+ 3 TX- 4 Ground 5 RX- 6 RX+ 7 Ground
16
MB886 User’s Manual
