Chapter 9
Installing Mini PCI-e Module

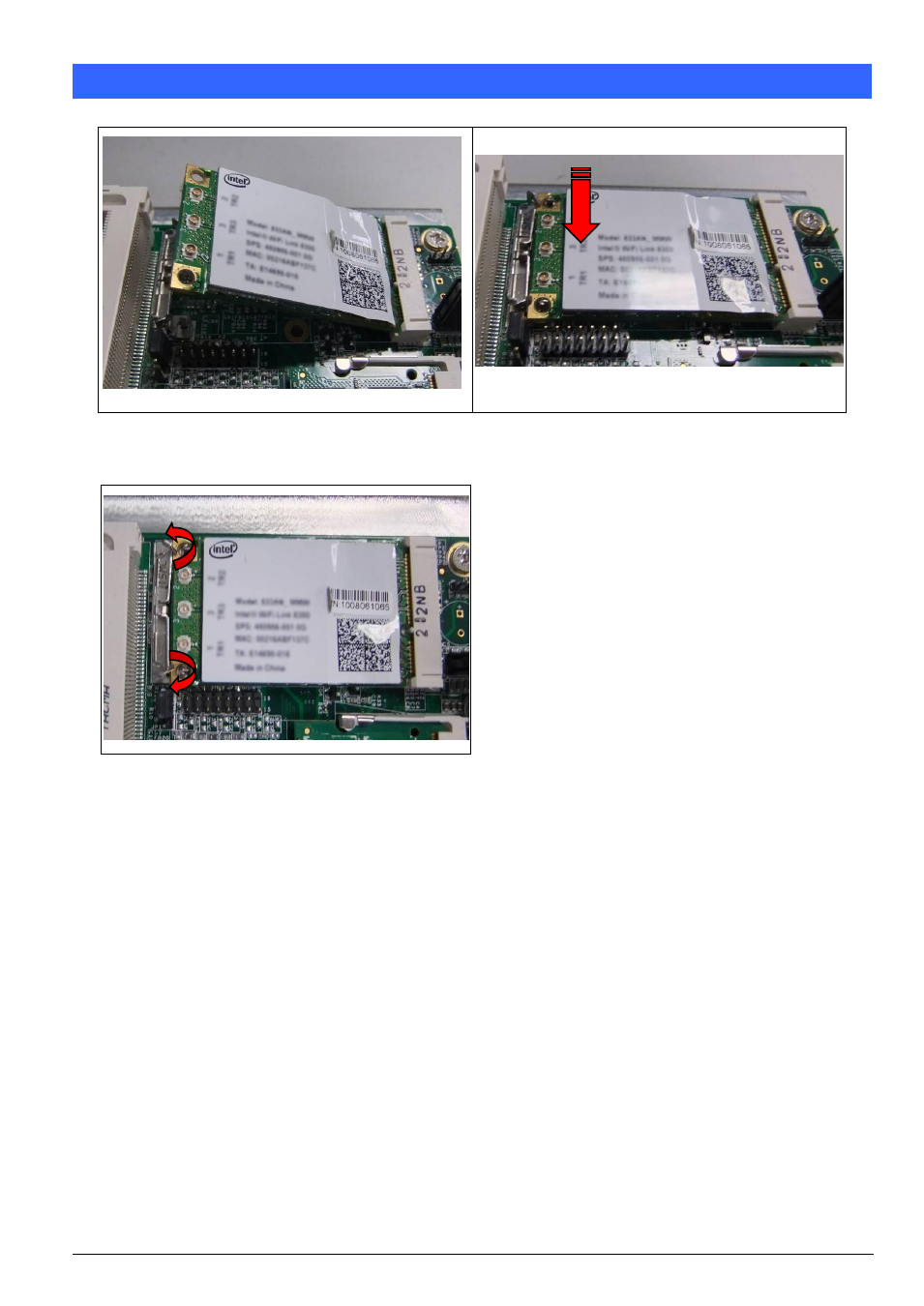

Fig. 9-1 Insert Mini PCI-e module
(Supports USB signal only)
Fig. 9-3 Release two clips to remove module
Fig. 9-2 Push down the module into socket
