Page 27
B

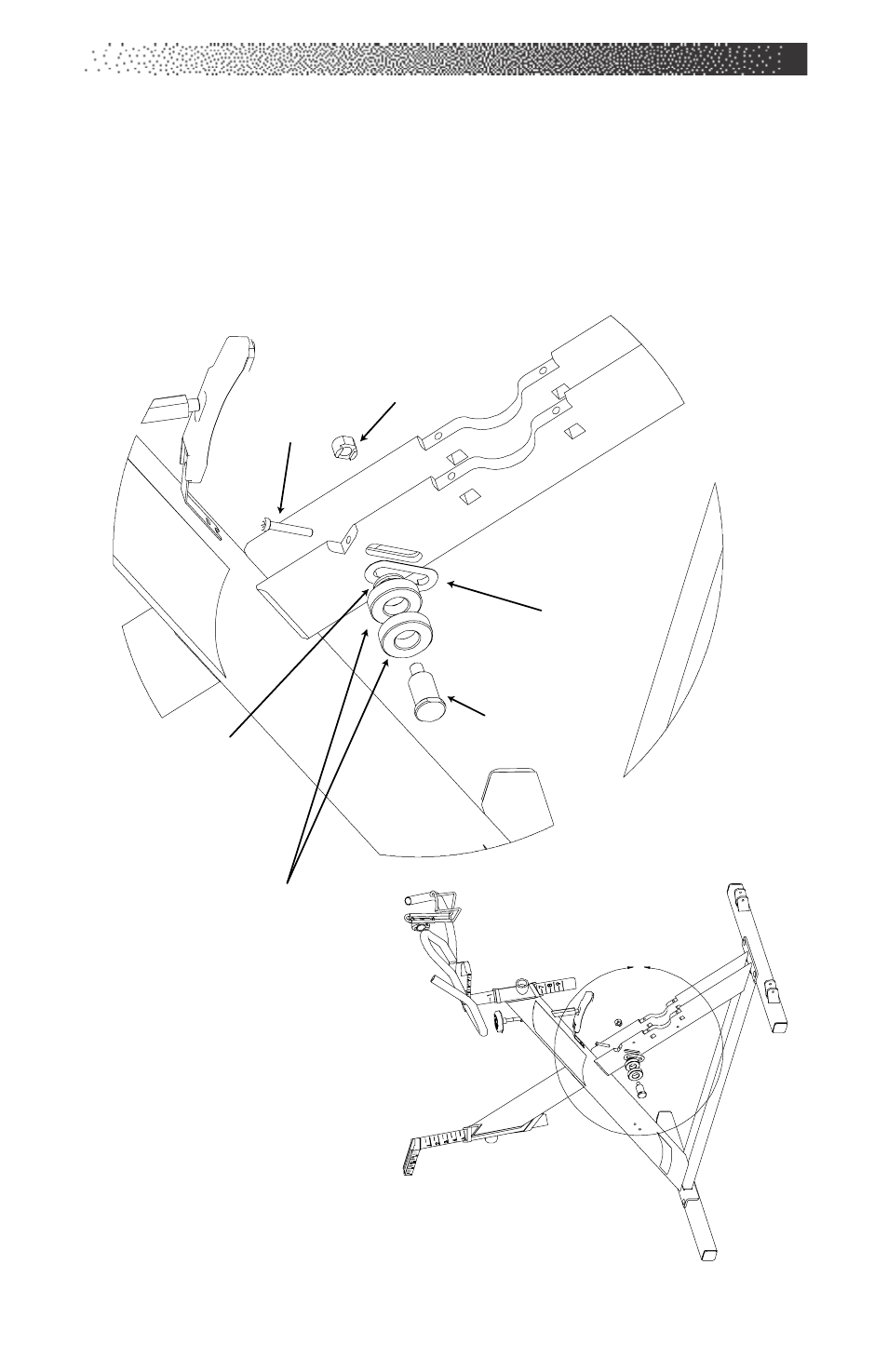

Detail B
Shoulder Bolt 1 x M1245
Bearing, Belt Tensioner 2 x 6004ZZ
Washer, Slotted 1 x 049D
Bolt, Belt Tensioner 1 x M640
Nut, Shoulder Bolt 1 x 41208
Spacer 1 x 2602
Detail B
Figure 4: Belt Tension
FIGURES
