2-1
2. VIDEO PLOTTER
2.1 Overview
If your 2805 radar is for R (Regular) type, the video plotter function is available in
addition to he radar map’s.
Keys for video plotter
ENTER
ORIGIN
MARK
TARGET
DATA
TRAIL
MARK
VECTOR
TRUE/
REL
TARGET
BASED
SPEED
CHART
ALIGN
VECTOR
TIME
AUTO
PLOT
LOST
TARGET
HISTORY
VIDEO
PLOT
RADAR
MENU
E,AUTO
PLOT
MENU
NAV
MENU
1 2 3
4 5 6
7 8
-
CANCEL
0
9

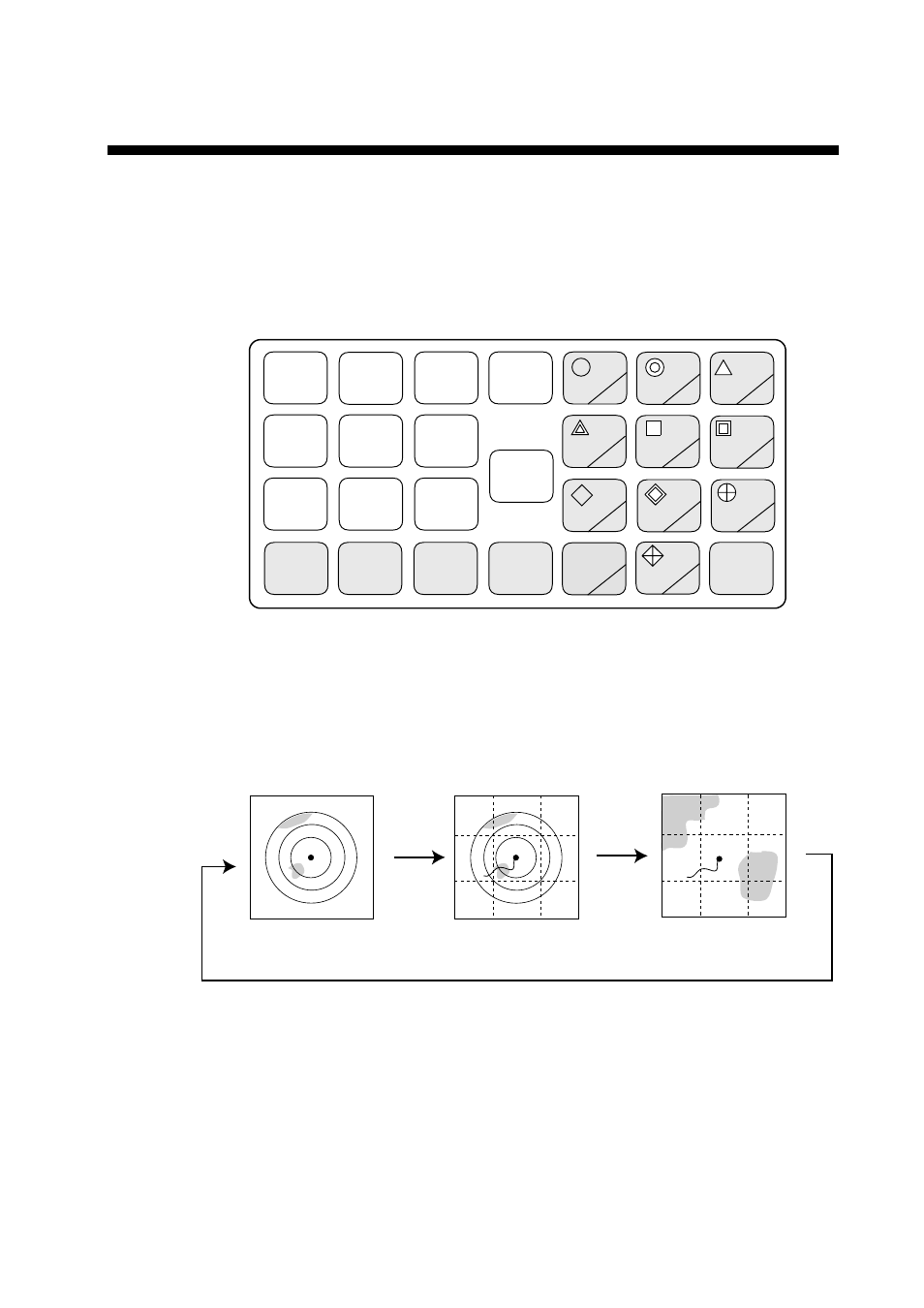

Control panel (right)
2.1.1 Selecting Displays
The RP-25 has three displays: Radar, Video Plotter and Radar/Video Plotter
(Combination). Displays are selected by pressing the [VIDEO PLOT] key, the
keying sequence of which is shown in the figure below.
Radar Display Radar/Video Plotter
Display (Combination)
Video Plotter
Display*
*Exclusive of Deep Sea specification
Displays
Note 1: When a menu appears, displays cannot be selected. I n this case, press
the [NAV MENU] key to close the menu.
Note 2: Video Plotter function is not available when “MAP” appears at the right
side of screen. Press the [VIDEO PLOT] key to select Radar/Video
Plotter or Video Plotter display (“MAP” disappears).
