Mercedes-Benz 2013 M Class - Manual (Page 133)

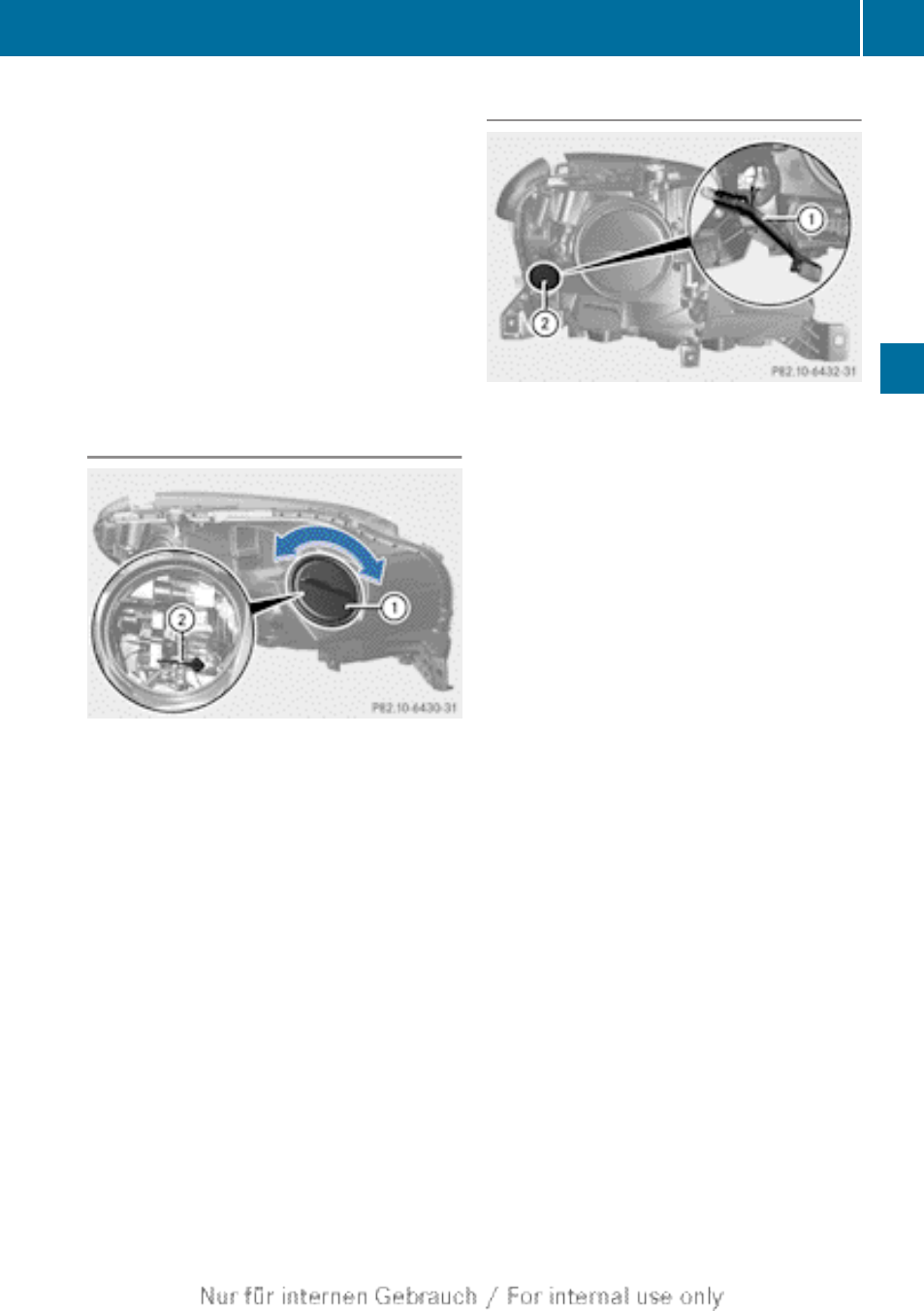

X Turn housing cover : counter-clockwise
and pull it out.
X Pull lever = upwards and remove bulb
holder ;.
X Take the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Simultaneously press bulb holder ; and
pull lever = downwards.
X Align housing cover : and turn it
clockwise until it engages.
Parking lamps/standing lamps
(halogen headlamps)
X Switch off the lights.
X Open the hood.
X Turn housing cover : counter-clockwise
and pull it out.
X Pull out bulb holder ;.
X Take the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Insert bulb holder ;.
X Align housing cover : and turn it
clockwise until it engages.
Side marker lamps
X Remove the cover in the front wheel
housing (
Y page 129).
X Turn cap ; counter-clockwise and remove
it.
X Pull out bulb holder :.
X Take the bulb out of bulb holder :.
X Insert the new bulb into bulb holder :.
X Insert bulb holder :.
X Align cap ; and turn it clockwise until it
engages.
X Replace the cover in the front wheel
housing (
Y page 129).
Replacing bulbs
131
Lights and windshield wipers
Z
