Chapter 3: The Dugan Control Panel
The Dugan Control Panel has both Java and iPad versions. This chapter discusses
the Java version and notes the iPad app’s few differences.
The Dugan Control Panel has three panes. The controls displayed in these panes de-
pend on which Dugan device is selected in the Top Pane. This chapter assumes the
Dugan-MY16 is selected.
The Dugan Control Panel is divided into three panes:

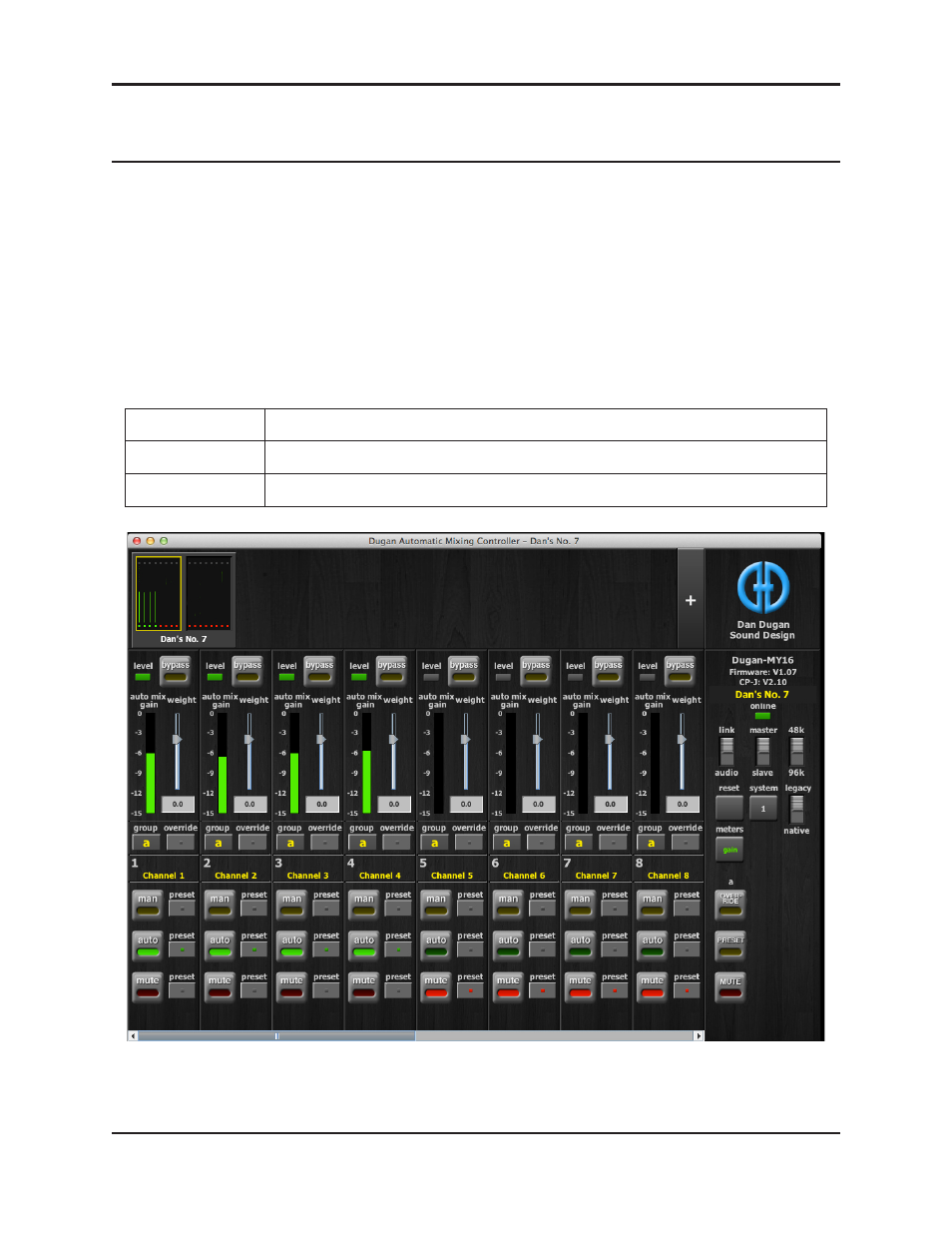

Figure 3-1 Dugan Control Panel
Top Pane
icons for all connected Dugan units
Channel Pane
man, auto, mute, preset, override, group, weight, bypass, and channel name controls
Master Pane
OVERRIDE, PRESET, MUTE, meters, system, and reset controls
