3.3 Card module installation
a) Insert the card module into the FT-C18 chassis along the top and bottom card guides of an
empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided
thumb screws.
b) Repeat the above procedure for all the rest card modules. Unused slots must be covered
with blank panels provided.
c) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
fiber optic cable for optical link, and UTP cables for data input/output (Tx/Rx).
d) Once the chassis is powered up, check that the red POWER LED on the front and back
panels of the card modules are lit. If not, check the power supply cable connections between the
chassis and the power supply socket. For failures of individual card’s POWER LEDs, check the
corresponding card modules, whether they have been inserted properly.
e) With all the signals available at the input and output ports, check the status of LEDs located
on the unit . With correct status of each LED, installation is now completed [for LEDs status, see
Operational Guides
on this manual’s section (5)].
(4) Cable Connections & Setup Procedures
4.1 System Cable Connections
Signal Type Cable Type Connector
Optical Single-mode or Multi-mode fiber ST (or FC) Connector
Data Twisted-pair Cable Screw Terminal Block
Typical System Cable Connections Diagrams:
Standalone Transmitter Standalone Receiver

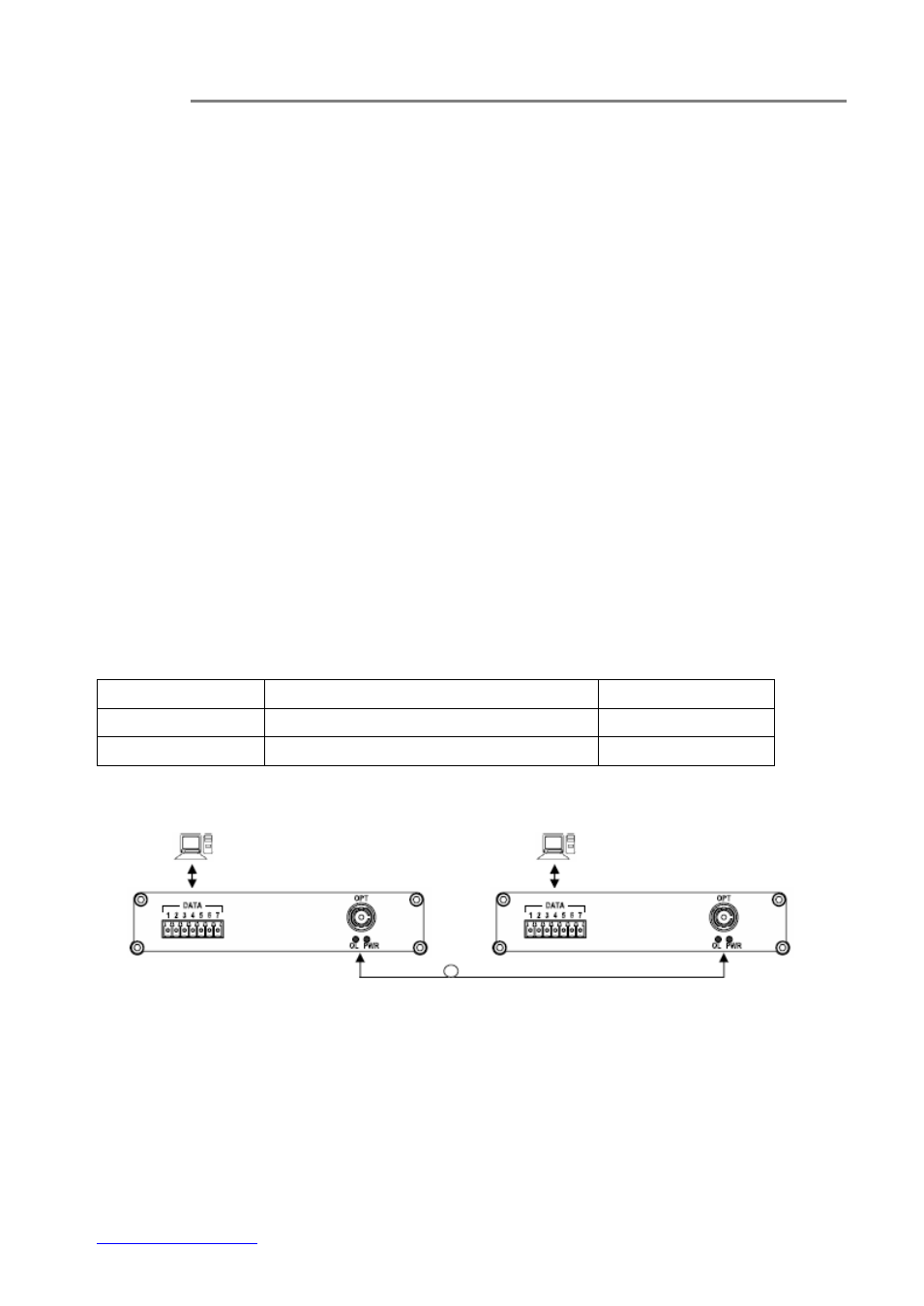

Fig. 4.1 Standalone unit to Standalone unit connection diagram
