UM023902-1013
17
ZMOTION
®
20-Pin Detection and Control Development Kit
User Manual
4. Make sure that the ZMOTION 20-Pin Development Board is powered OFF, then con-
nect the USB SmartCable (Debugger) to P2, as described above.
5. Ensure that the J8 jumper is closed in position 1–2, to control the USB power supply.
6. Apply power to the Development Board by plugging in the USB cable and setting SW1
to the ON position. Next, click the
Reset
icon in ZDS II. Figure 14 indicates the loca-
tion of both the
Reset
and
Go
icons in the ZDS II menu bar.

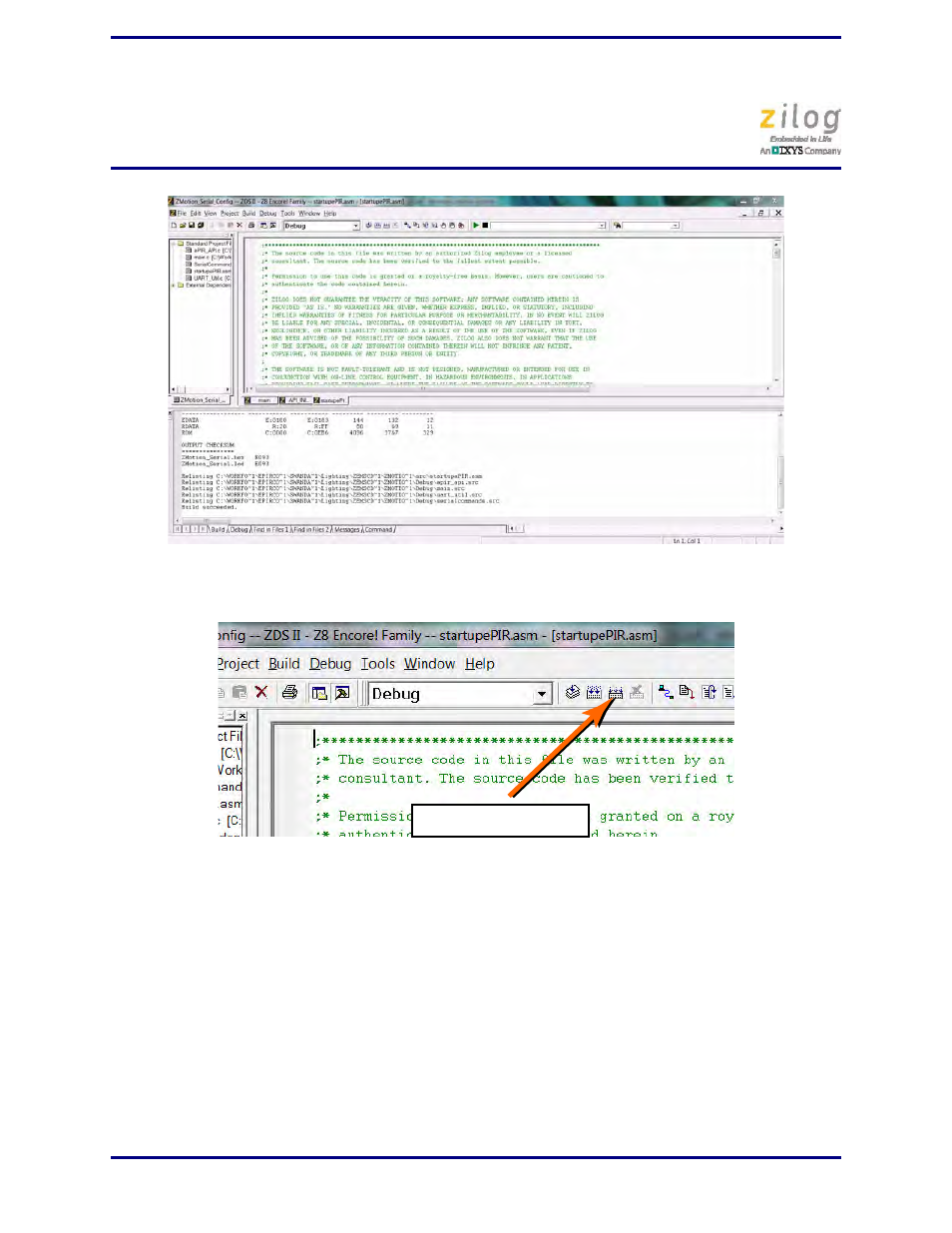

Figure 12. Building the ZMOTION_Serial_Config project in ZDS II
Figure 13. The Location of the Rebuild All Icon
The Rebuild All icon
