3 ST60-S VTR Controller
3. INSTALLATION
a.
Plug the Keypad, Control Panel, Master Control Switcher, or Parallel
Machine Control System into the 15-pin connector, labeled Keypad
Input, on the back of the ST60.
b.
Plug one end of a standard 9-pin, RS422 serial cable into the 9-pin
connector on the back of the ST60.
Plug the other end of the cable into the 9-pin remote connector on the
VTR.
c.
Plug the power supply into the DB9-M connector on the rear of the ST60.
Plug the other end of the power supply into 90-265 VAC 50/60. The
POWER LED on the front of the ST60 will flash for a couple of seconds,
then stay on.
d.
Select REMOTE operation on the VTR’s front panel.
e. Set the record selector switches to the desired record mode.
See RECORD SELECTOR CHART.

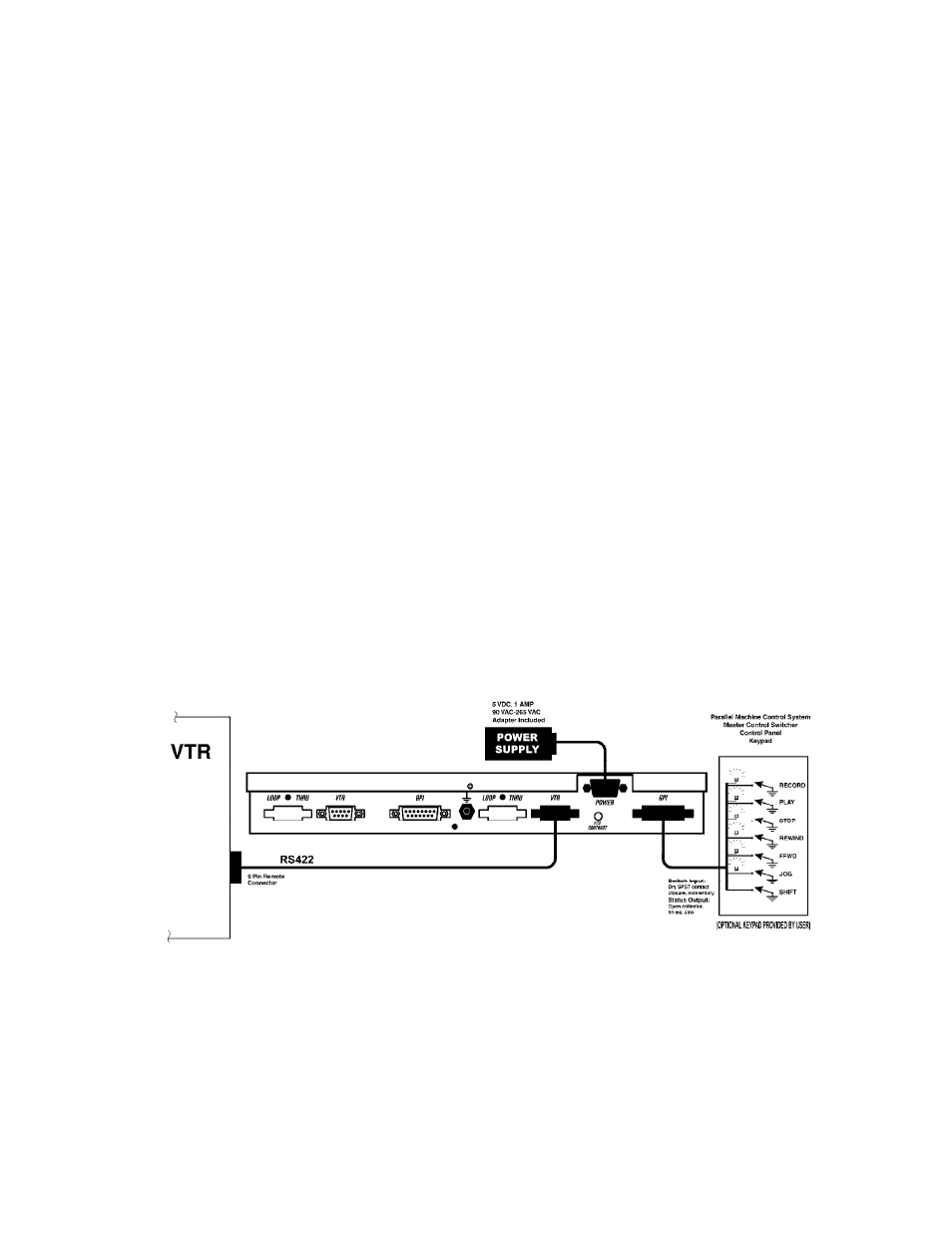

Installation Diagram
NOTE: For AMPEX 1-inch and D2 VTRs, set VTR ID to 0001.
Installation is completed!
