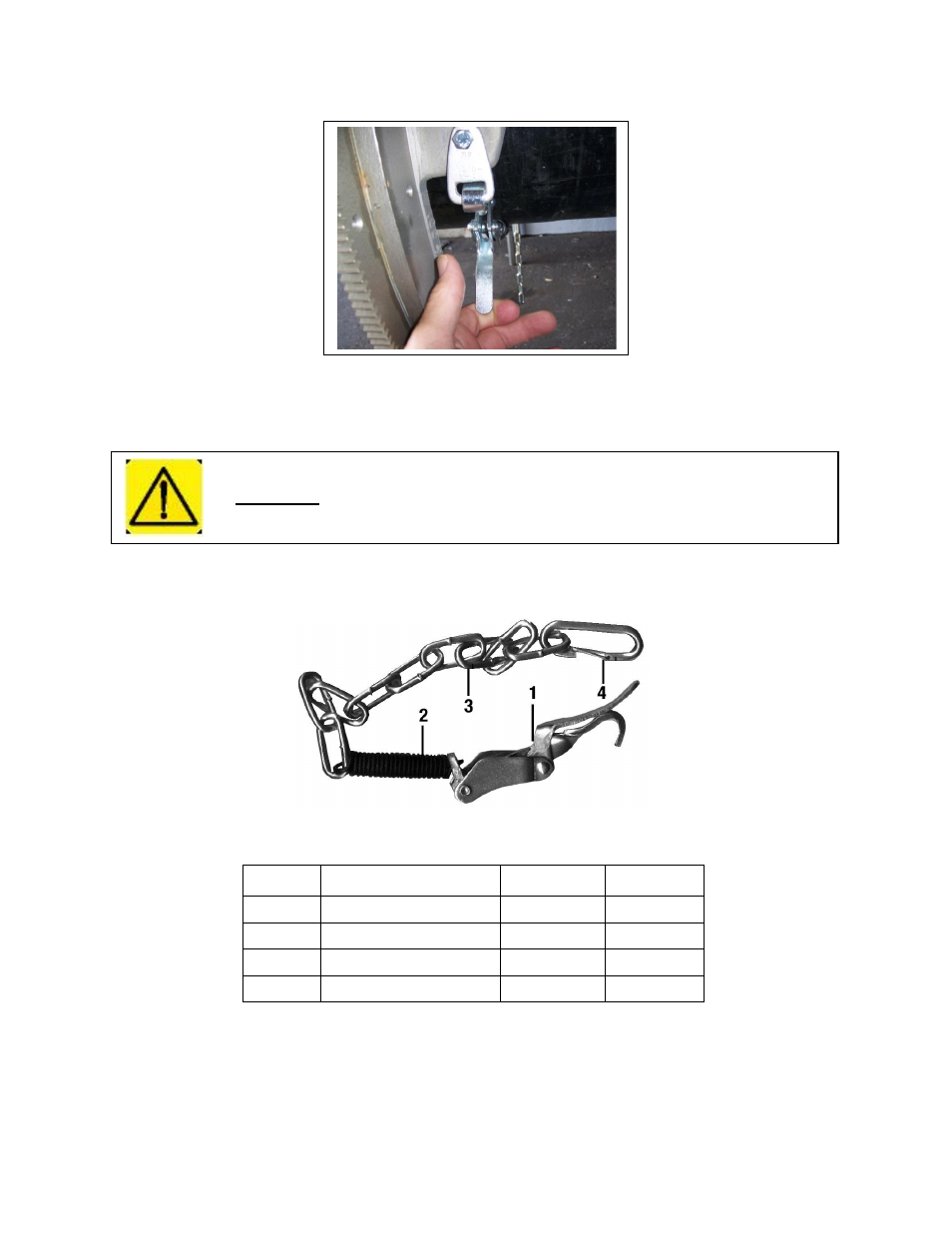

Picture 2 – Closing Boomer
Figure 2: Boomer Assembly Part # 03.0104.011
Table 2 – Boomer Assembly Parts Identification
ITEM # PART DESCRIPTION PART # QUANTITY
1 Boomer 01-0258-001 1
2 Spring 01-0184-003 1
3 Chain 01-0577-005 1
4 Spring Snap 01-0258-003 1
Caution:
Be careful not to get finger caught between the latch handle and boomer
frame.
