10. DISASSEMBLY

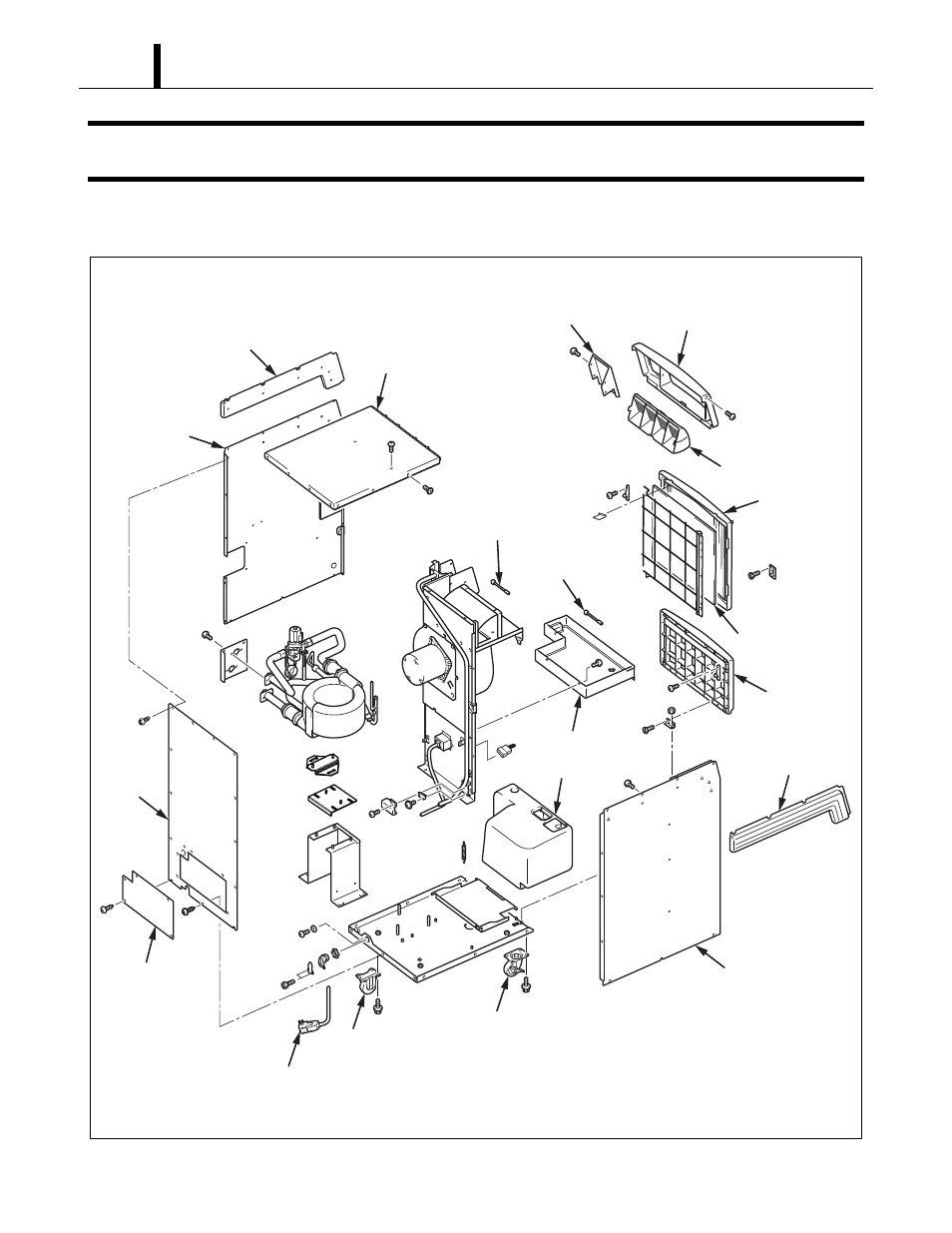

10.1 Parts Construction
ILL00144-00
Control Panel
Room Thermistor
Right Handle
Upper Panel
Right Panel
Rear Panel
Service Panel
Freeze Protection
Thermistor
Drain Pan Assy
Drain Tank
Caster
Caster
Power Cord
Upper Front Panel
Air Outlet Grill
Front Panel
Filter Assy
Filter Element
Drain Tank
Panel Assy
Left Handle
Left Panel
