TASCAM DR-680
19
2 – Names and Functions of Parts

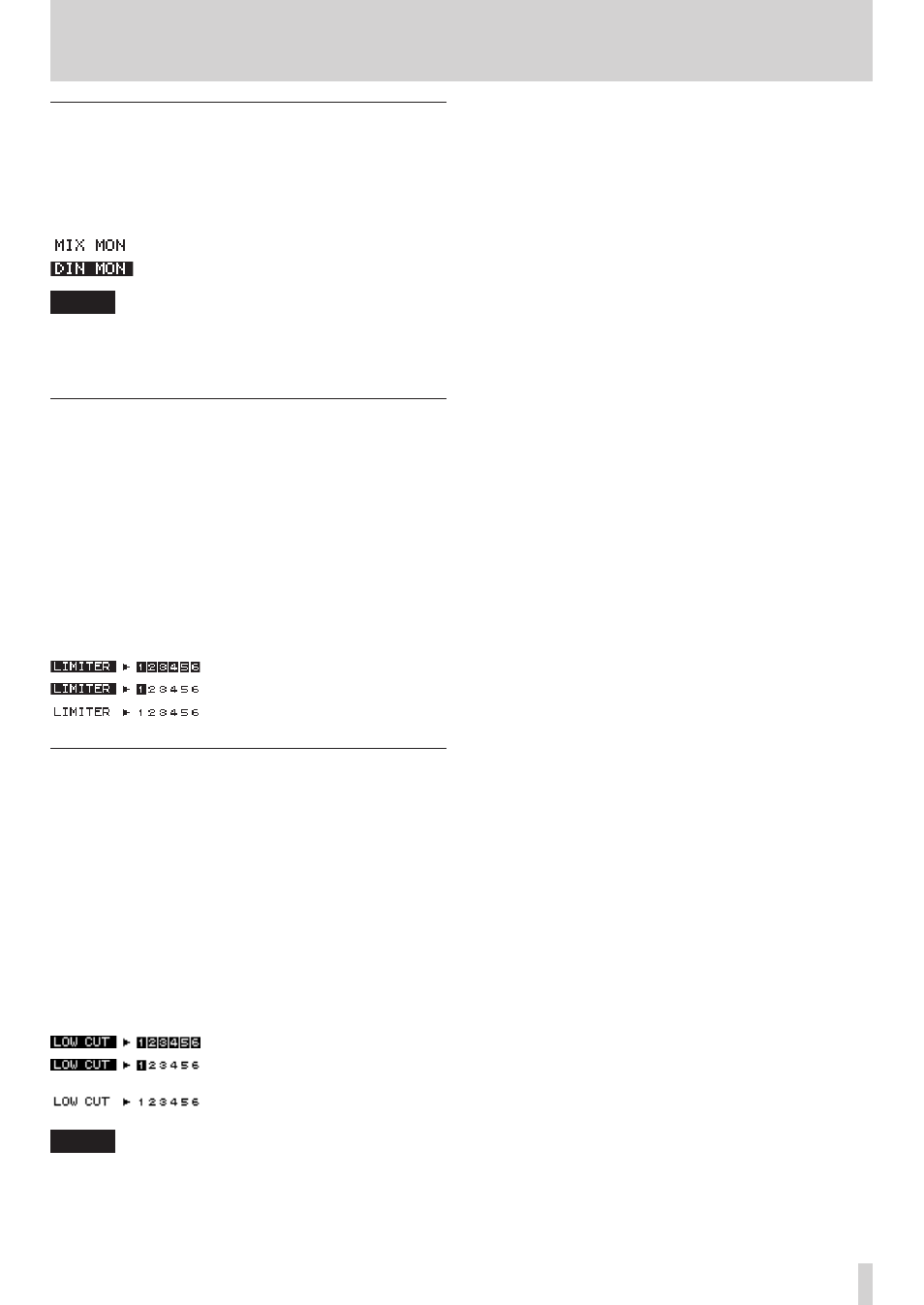

DIN/MIX monitor settings
When the
ST REC
item on the
REC
page of the
MENU
screen is set to
DIN
, the signal to be monitored can be
selected. Press the VALUE/MARK knob to select
DIN MON
or
MIX MON
.
The default value is
MIX MON
.
: Set to monitor the stereo mix
: Set to monitor the digital input
NOTE
When the
ST REC
item on the
REC
page is set to
MIX
, this setting is fixed to
MIX MON
, and it cannot be
changed to
DIN MON
.
Limiter activation
Use the
LIMITER
item to turn the limiter function ON or
OFF for each input independently.
The limiter for an input is ON when its number appears
light on a dark background. The default value is OFF for all
inputs.
Press the VALUE/MARK knob to turn the limiter ON or OFF
for all inputs at the same time.
Press the channel number (1–6) buttons to turn the limiter
ON or OFF for each input independently.
If the limiter has been turned ON for one or more inputs,
the
LIMITER
indicator appears with a dark background.
: Limiter ON for all inputs
: Limiter ON for input 1
: Limiter OFF for all inputs
Low-cut filter activation
Use the
LOW CUT
item to turn the low-cut filter function
ON or OFF for each input independently.
The low-cut filter for an input is ON when its number
appears light on a dark background. The default value is
OFF for all inputs.
Press the VALUE/MARK knob to turn the low-cut filter ON
or OFF for all inputs at the same time.
Press the channel number (1–6) buttons to turn the
low-cut filter ON or OFF for each input independently.
If the low-cut filter has been turned ON for one or more
inputs, the
LOW CUT
indicator appears with a dark
background.
: Low-cut filter ON for all inputs
: Low-cut filter function ON for
input 1
: Low-cut filter OFF for all inputs
NOTE
You can set the cut-off frequency with the
FREQUENCY
item of the
LOW CUT
menu. (See “Using the low-cut
filter” on page 35.)
