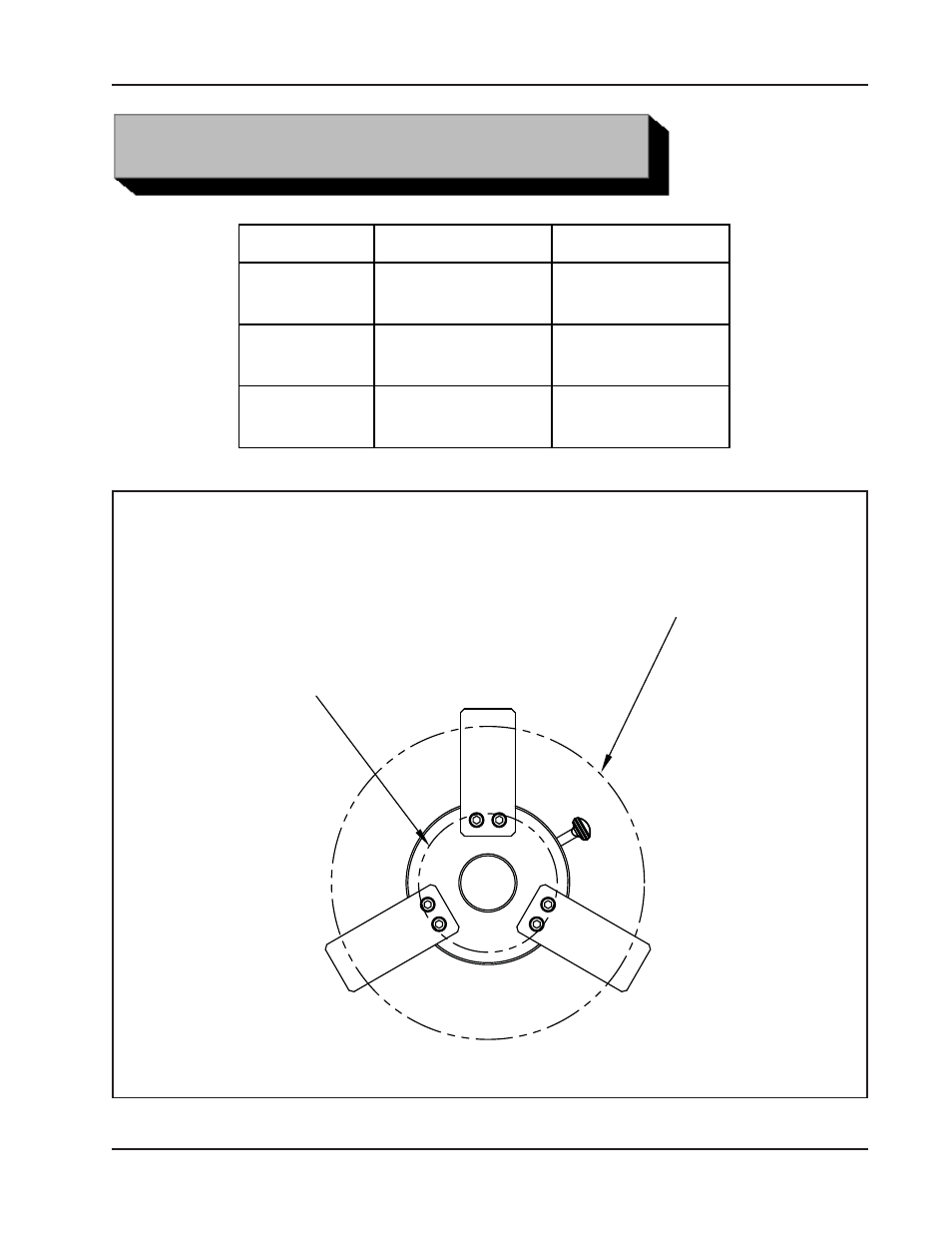

Models 204B, 208B and 214B Squaring Plate
92-1499 : Orig. 100920
SPECIFICATIONS
Minimum and Maximum Mounting Ranges
MODEL MINI. ID MAX. OD
204B
1.50"
(39.4 mm)
4.50"
(114.3 mm)
208B
3.82"
(97.0 mm)
8.73"
214.1 mm)
214B
3.82"
(97.0 mm)
14.00"
(355.6 mm)
Mini. ID
Max. OD
