18

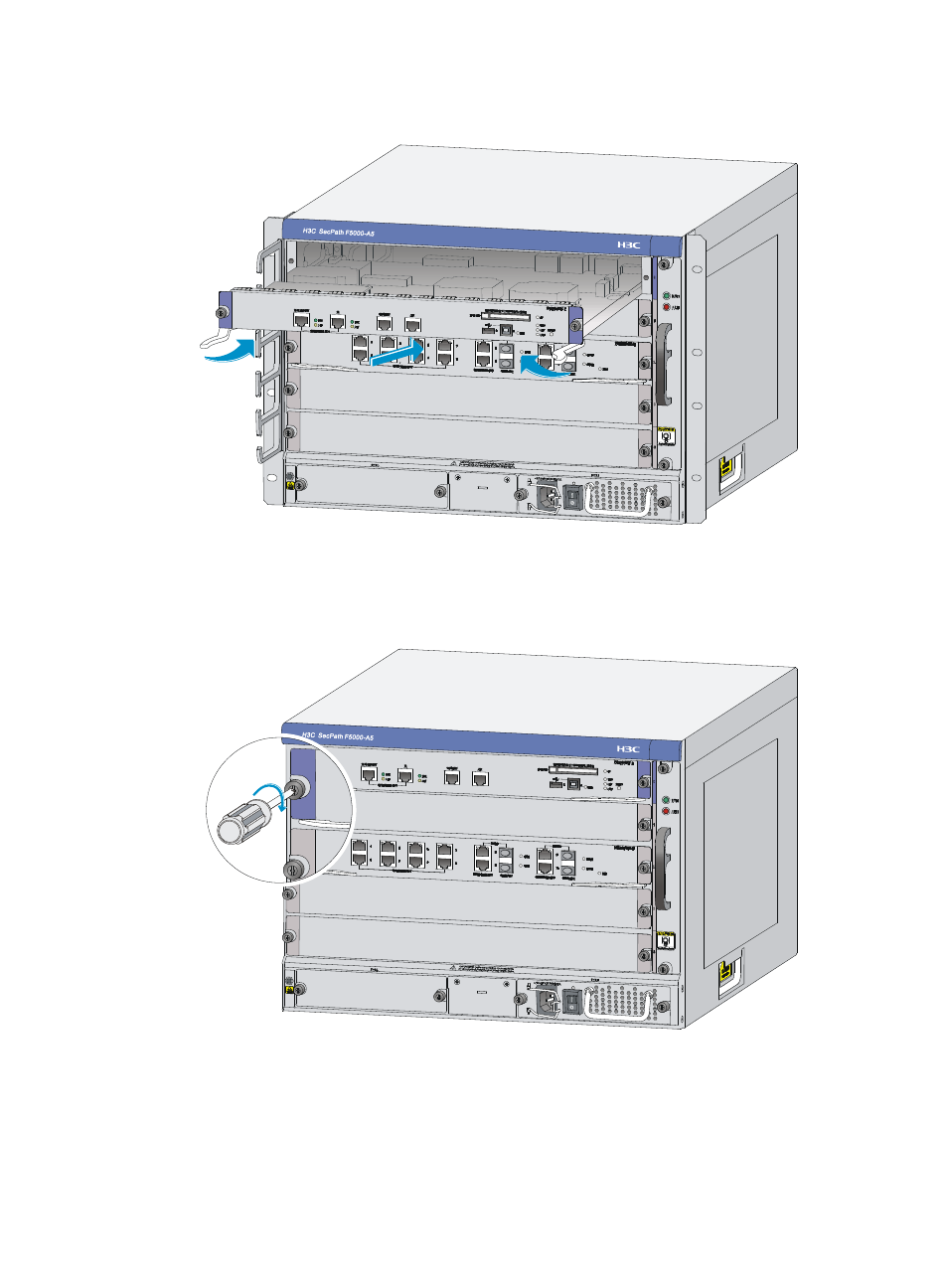

Figure 12 Inserting the MPU into slot
4.
Fasten the captive screws with a Phillips screwdriver.
Figure 13 Fastening the captive screws
5.
The RUN LED (green) flashes fast (at 8 Hz). It flashes slowly (at 1 Hz) after the MPU application is
loaded. This means that the MPU is operating correctly.
