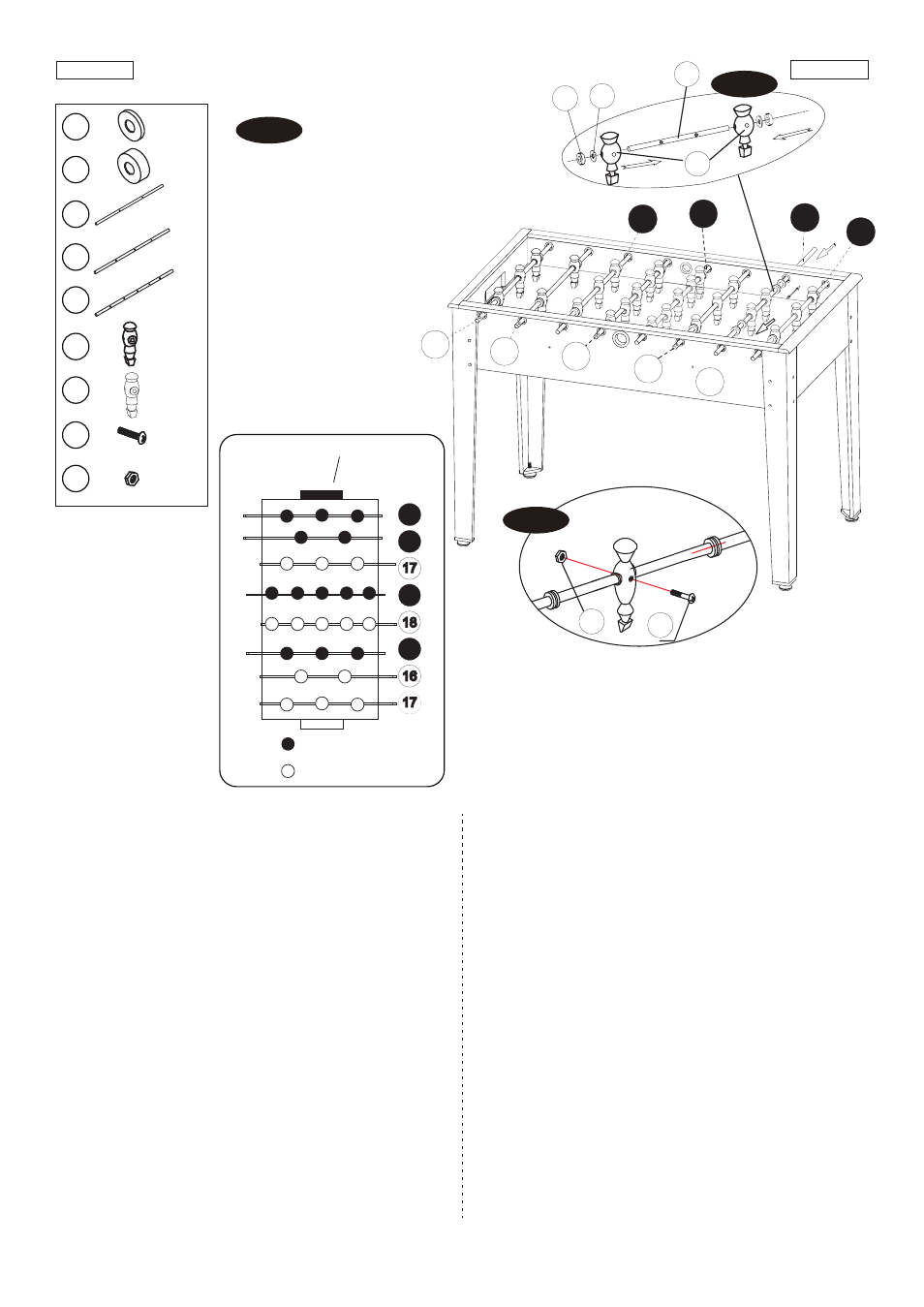

FIG. 4

FIG. 4: PLAYERS ASSEMBLY

9. Slide the Player Rods (#16-18) through the bushings of

one side of the Side Aprons (#1) in the order shown

in FIG.4.

NOTE : The Player Rods have a hole at their end

where the Handles (#10) will go.

10. Place a Foam Bumper (#9), a Rod Washer (#8), either

2,3 or 5 Players (#19 and #20) and then place another

Rod Washer (#8) and another Foam Bumper (#9) onto

the other side of the Side Player Rod. See FIG.4A.

NOTE: Players of the same team color should have

Handles (#10) on the same side, and each team’s

players should be facing their opponent.

11. Now insert the Player Rods through the bushings on

the other side of the Aprons (#1) (at the other side of

the table).

12. Attach the Players to the rod with a Screw (#21) and

a M4 Nut (#23). See FIG.4B.

FIG. 4: MONTAJE DE JUGADORES

9. Deslice las Barras de Jugador (#16-18) por el pasamuro

de un lado del Delantal Lateral (#1) en la orden mostrada

en la FIG.4.

Nota:Las Barras de Jugador hay un agujero a su final

donde está el Tirador (#10).

10. Coloque el Parachoques de Espuma (#9), a la Arandela

de Barra (#8), que sean de 2, 3 o 5 Jugadores

(#19 & #20) y luego coloque la otra Arandela de Barra

(#8) y otro Parachoques de Espuma (#9) sobre el otro

lado del Lado de Barra de Jugador. Vea la FIG. 4A

Nota: El jugador del mismo color de equipo debería tener

Tirador (#10) sobre el mismo lado, y los jugadores de

cada equipo debería afrontar a su opositor.

11. Ahora inserte las Barras de Jugador por el pasamuro

sobre el lado del Delantal (#1) (en el otro lado de la mesa).

12. Coloque los Jugadores a la barra con Tornillo (#21) y

Tuerca M4 (#23).. Vea la FIG. 4B.

www.themdsports.com

1324810

7

(Continúe en la siguiente página.)

(Continued on the next page.)

Español

English

8

9

X 16

X 16

16

17

X 2

X 4

18

X 2

19

X 13

20

X 13

21

X 26

23

X 26

ORDER OF PLAYERS

(Overhead View)

Orden de Jugadores

(Vista Aérea)

17

17

18

16
17

17

18

16

= Black / Negro

= Ivory / Marfil

17

17

17

1

17

18

18

16

16

16

8

19

9

21

23

FIG. 4A

FIG. 4B
