OUTSIDE BACK EXHAUST
(Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1
Tu
rn to
Select
P
ress to E
nt
er
INSTALLATION OVERVIEW
B1.
Prepare Rear Wall
B2.
Attach Mounting Plate to Wall
B3.
Prepare Top Cabinet
B4.
Adjust Blower
B5.
Mount the Oven
B
ATTACH THE MOUNTING
PLATE TO THE WALL
B2

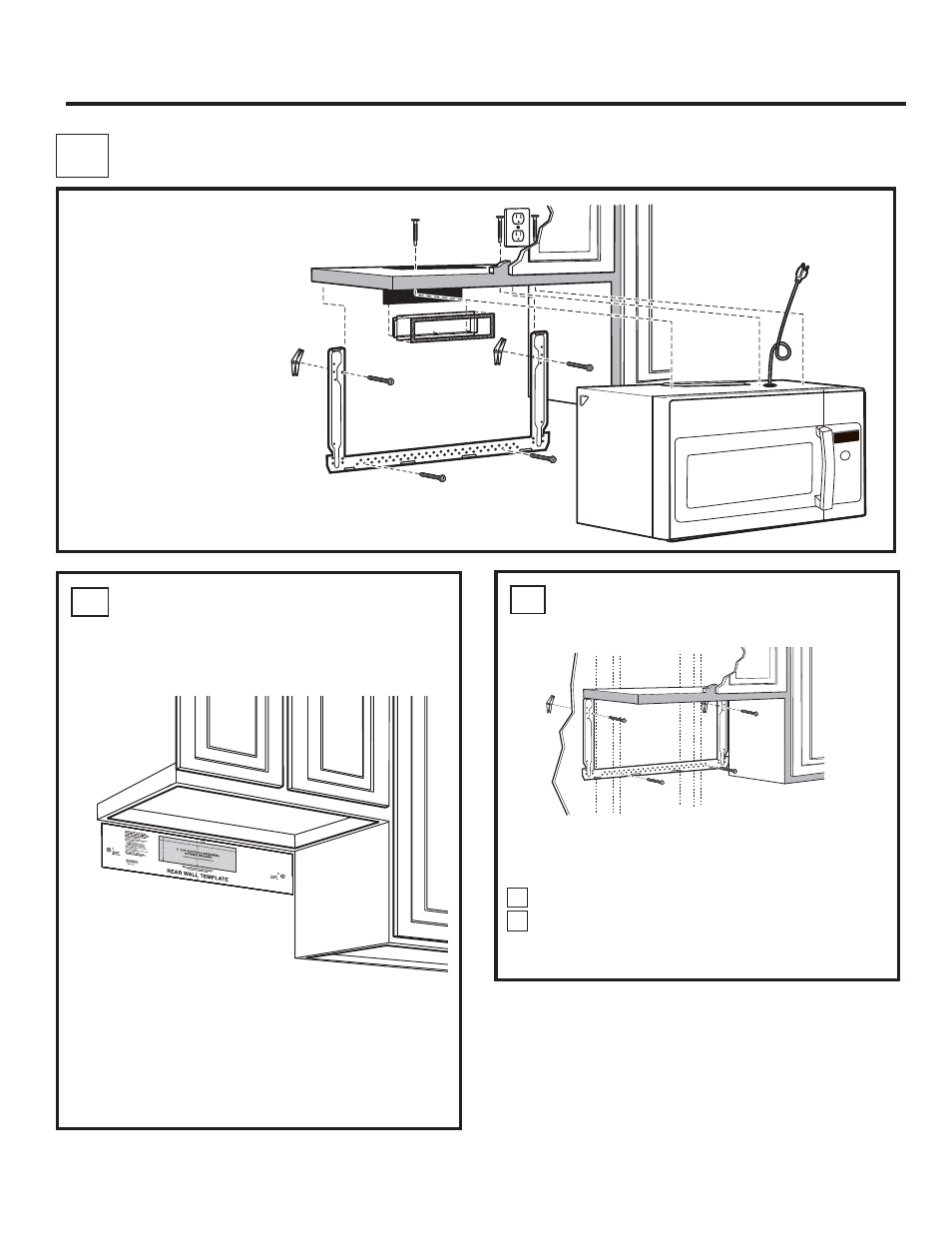

Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to
3
»
4
ƎRQWRHDFKEROW
1
2
You need to cut an opening in the rear wall for
outside exhaust.
•
Read the instructions on the REAR WALL
TEMPLATE.
•
Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
•
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
