LOCATION REQUIREMENTS
Check codes requirements. Some codes limit, or do not permit,
installing dryer in garages, closets, mobile homes, or sleeping
quarters. Contact your local building inspector.
You will need:
■ A separate 30 A circuit.
■ If using a power supply cord, a grounded electrical outlet
located within 2 ft. (610 mm) of either side of dryer. See
“Electrical Requirements.”
■ Floor must support dryer weight of 200 lbs. (90.7 kg). Also
consider weight of companion appliance.
■ Level floor with maximum slope of 1" (25 mm) under entire
dryer. If forward slope is greater than 1" (25 mm), water could
run out from front of filter. Install Extended Dryer Feet Kit, Part
Number 279810. If not level, clothes may not tumble properly
and automatic sensor cycles may not operate correctly.
■ For garage installation, place dryer at least 18" (460 mm)
above floor. If using a pedestal, you will need 18" (460 mm)
to bottom of dryer.
■ The dryer must not be installed or stored in an area where it
will be exposed to water and/or weather.
IMPORTANT: Do not operate, install, or store dryer where
it will be exposed to water, weather, or at temperatures below
40°F (4°C). Lower temperatures may cause dryer to not
shut off at end of automatic sensor cycles, resulting in longer
drying times.

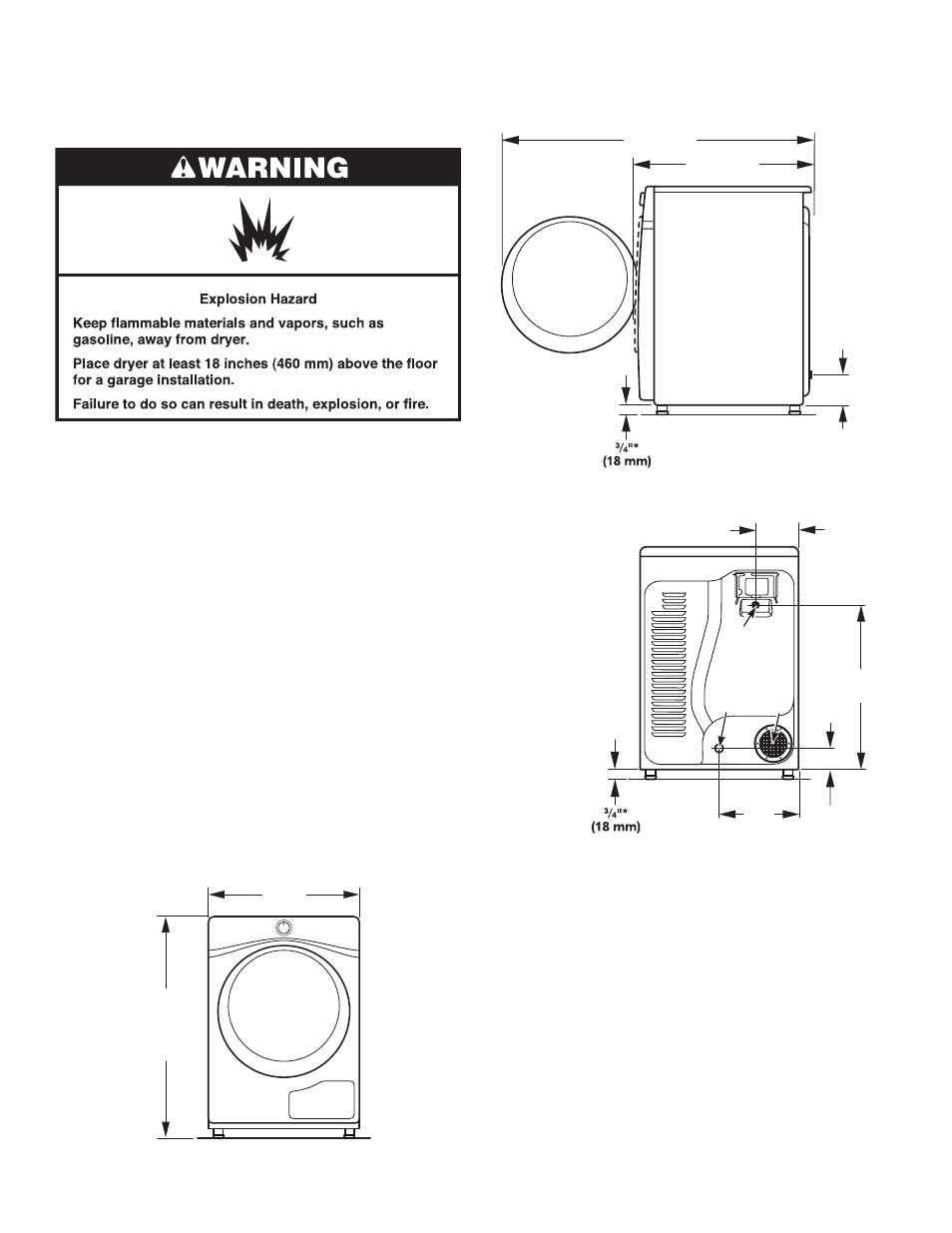

DRYER DIMENSIONS
27"
(686 mm)
38 3 /
4
" Min.
(984 mm)
39" Max.
(990 mm)
Front view:
Side view:
51 " min.
(1314 mm)
31 " min.
(806 mm)
Back view:
13 1 /
2
"
(343 mm)
6 1 /
2
"
(165 mm)
6 1 /
2
"
(165 mm)
29 7 /
8
"*
(759 mm)
NOTE: Allow
clearance behind
dryer for proper
drain hose routing
and cooling fan
ventilation. Push
dryer back as
far as possible
and make sure
drain hose is not
crushed or kinked.
*Approx. measurement
Water
drain
Cooling
fan
IMPORTANT: Do not block cooling fan, as your dryer may not
operate properly.
Power cord/
cable
54 1 /
2
"
(1378 mm)
31"
(787 mm)
5 3 /
4
"
(146 mm)
