Chapter 10 Installing Optional Dual
2.5” HDD Kit
The following is for optional Dual 2.5
” HDD kit:

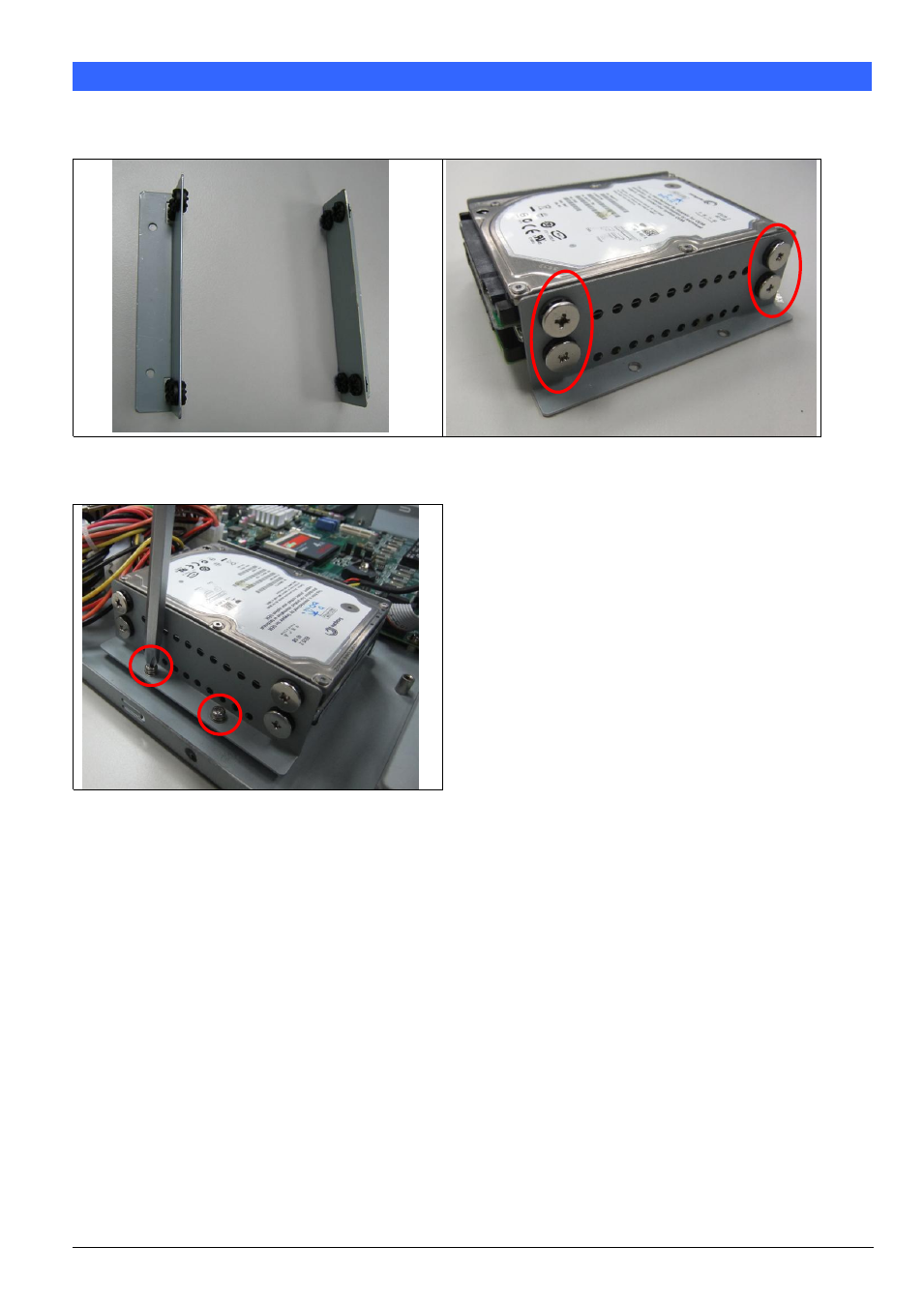

Fig. 10-1 Push eight shock-absorbent pads to
fasten HDD bracket.
Fig. 10-2
Fasten the screws to lock 2.5” HDD
bracket and bracket together.
Fig. 10-3 Fix HDD bracket on chassis with four
screws
