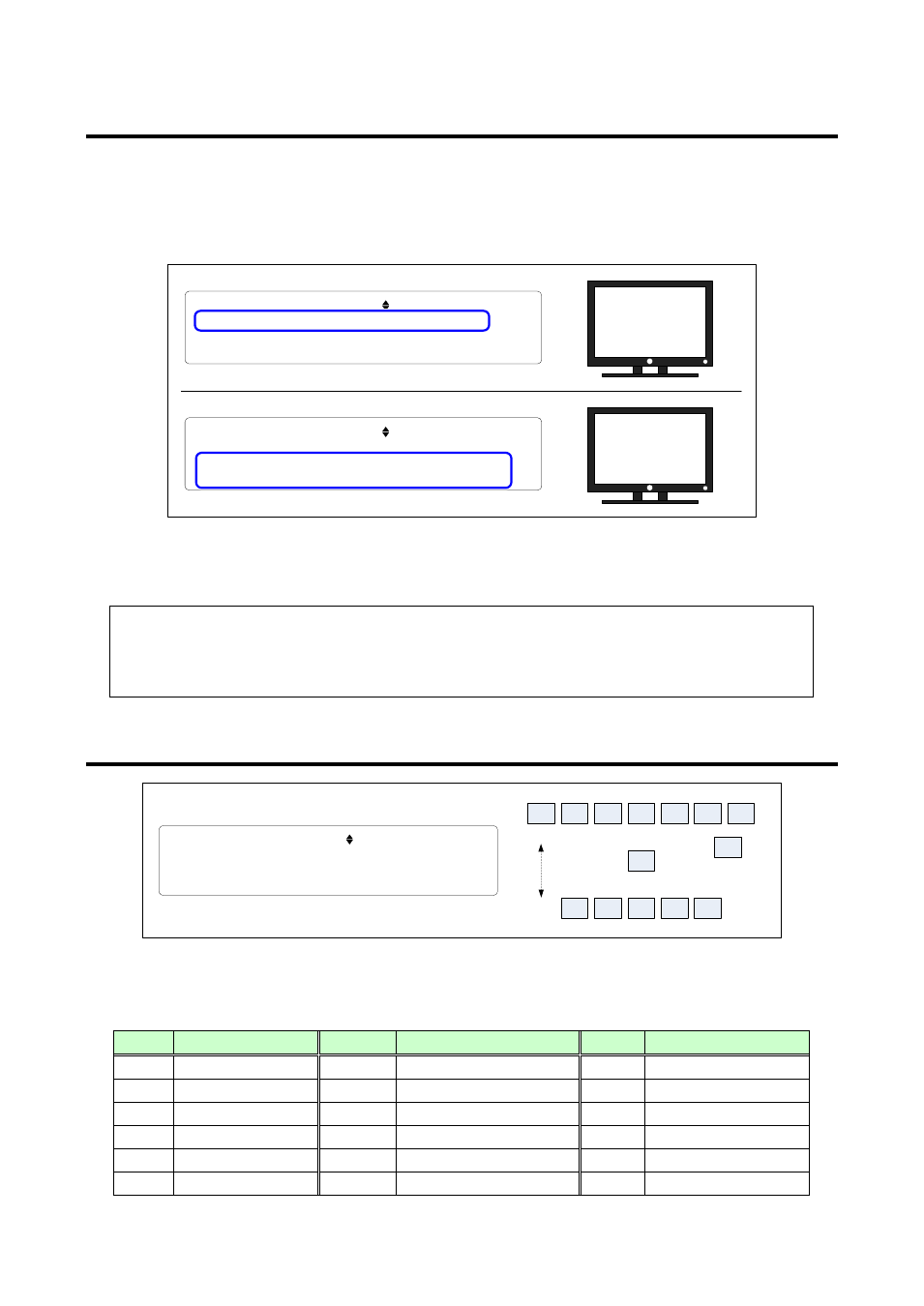

GF-100 User’s Guide
38
7.2.6 Preferred/native resolution
“PREFER”: resolution recommended by the manufacturer of the sink device
“NATIV1” and “NATIV2”: native resolution (the maximum resolution of sink devices’ pixel)
For other supported resolutions, see “7.2.8 Detailed EDID(P.39)”.
Note: Handling preferred and native resolutions differs by manufacturers. The preferred resolution is
sometimes higher than the native resolution due to scaling.
T O P > S I N K S T A T E [ 2 / 4 ] S U M M A R Y 2 T I M I N G
P R E F E R : 1 9 2 0 x 1 2 0 0 p , 5 9 . 9 5 H z , 1 6 : 1 0
N A T I V 1 : 1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 / 6 0 H z , 1 6 : 9
N A T I V 2 : -
T O P > S I N K S T A T E [ 2 / 4 ] S U M M A R Y 2 T I M I N G
P R E F E R : 1 9 2 0 x 1 2 0 0 p , 5 9 . 9 5 H z , 1 6 : 1 0
N A T I V 1 : 1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 / 6 0 H z , 1 6 : 9
N A T I V 2 : -
Preferred resolution
1920x1200
Native resolution
1920x1080
[Fig. 7.5] Preferred/native resolution
<Recommended actions for when the image cannot be displayed on the sink device>
● Sink device: Check the power supply, input switching (if there are some inputs), and operation
using test patterns (P.39).
● Source device: Check the presence or absence of output signals (P.21) and output resolution
(P.21).
7.2.7 Configuration of supported speakers
T O P > S I N K S T A T E [ 3 / 4 ] S U M M A R Y 3 S P E A K
[ - - - - - - F L - - - ] [ - - - - - ] [ - - - F R - - - - - - ]
[ - - ] [ - - - ]
[ - - - - - ] [ - - ] [ - - - - - ]
FLW FL FLC FC FRC FR
LFE
TC
RC RLC RL RR
FRONT
REAR
FRW
RRC
[Fig. 7.6] Speaker configuration
[Table 7.1] Speaker position
Name Position Name Position Name Position
FL Front Left RC Rear Center FRW Front Right Wide
FC Front Center RR Rear Right FLH Front Left High
FR Front Right RLC Rear Left Center FCH Front Center High
FLC Front Left Center RRC Rear Right Center FRH Front Right High
FRC Front Right Center LFE Low Frequency Effect TC Top Center
RL Rear Left FLW Front Left Wide
