8 Monitoring DDC
8.1 Outline
DDC communication between the source device and sink device (hot plug voltage, DDC voltage, EDID, and
HDCP) can be output to a browser or TCP/IP port “1100”.
Connect the sink device and source device to the DDC monitor connectors (in the example below, the source
device is connected to connector A, but it can be connected to the connector B as well).

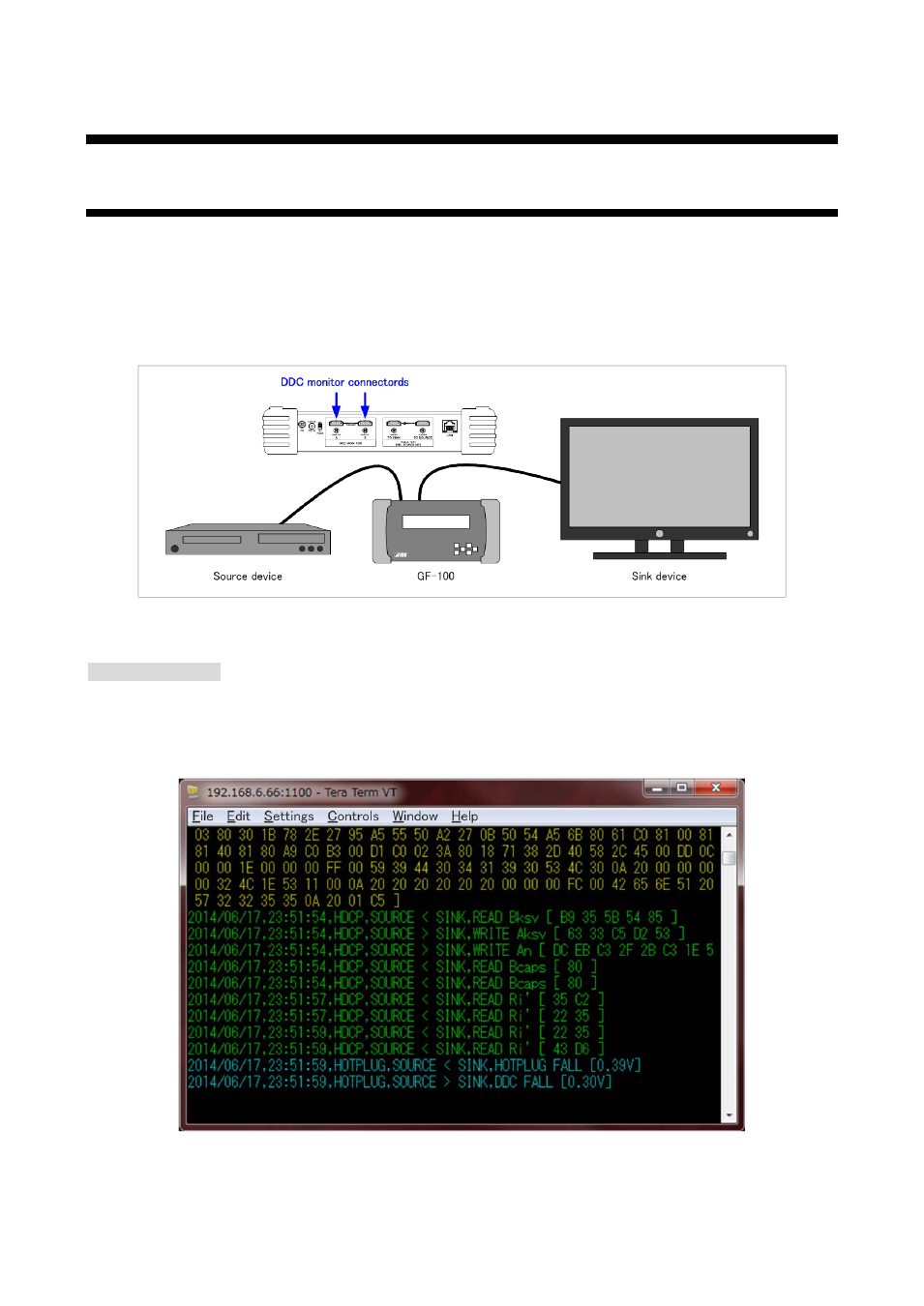

[Fig. 8.1] Connection for monitoring DDC
Terminal software
The communication contents are output to TCP/IP port “1100”.
Hot plug/DDC voltage, EDID, and HDCP are displayed in light blue, yellow, and green,
respectively.(P.47)
[Fig. 8.2] Terminal software for monitoring DDC
