6 I ENGLISH
We recommend saving your telescope box so it can be used to store the telescope when it is not in use Unpack the box
carefully as some parts are small Use the parts list below to verify that all parts and accessories are present
PARTS LIST
WHAT’S IN THE BOX
ASSEMBLING YOUR TELESCOPE
This section covers the assembly instructions for your Travel
Scope Your telescope should be set up indoor the first time so
that it is easy to identify the various parts and familiarize yourself
with the correct assembly procedure before attempting it outdoor
The Travel Scope 70 comes in one box The pieces in the box
are – telescope optical tube, tripod, erect image diagonal, 20 mm
eyepiece, 10mm eyepiece, 5x24 finderscope with bracket (all packed
in the travel backpack) and a bonus Astronomy software download
The Travel Scope 50 comes in one box All items the same as
above except it has a 2x20 finderscope and 8 mm eyepiece
(instead of 10 mm) In addition, the Travel Scope 50 includes a 3x
Barlow Lens – 1 25”
2
1
1. Objective Lens
2. Telescope Optical Tube
3. Tripod Head Platform
4. Azimuth Locking Knob
5. Central Column Locking Knob
6. Tripod
7. Finderscope
8. Erect Image Diagonal
9. Eyepiece
10. Focus Knob
11. Pan Handle 7
3
4
6
8
9
10
11
5

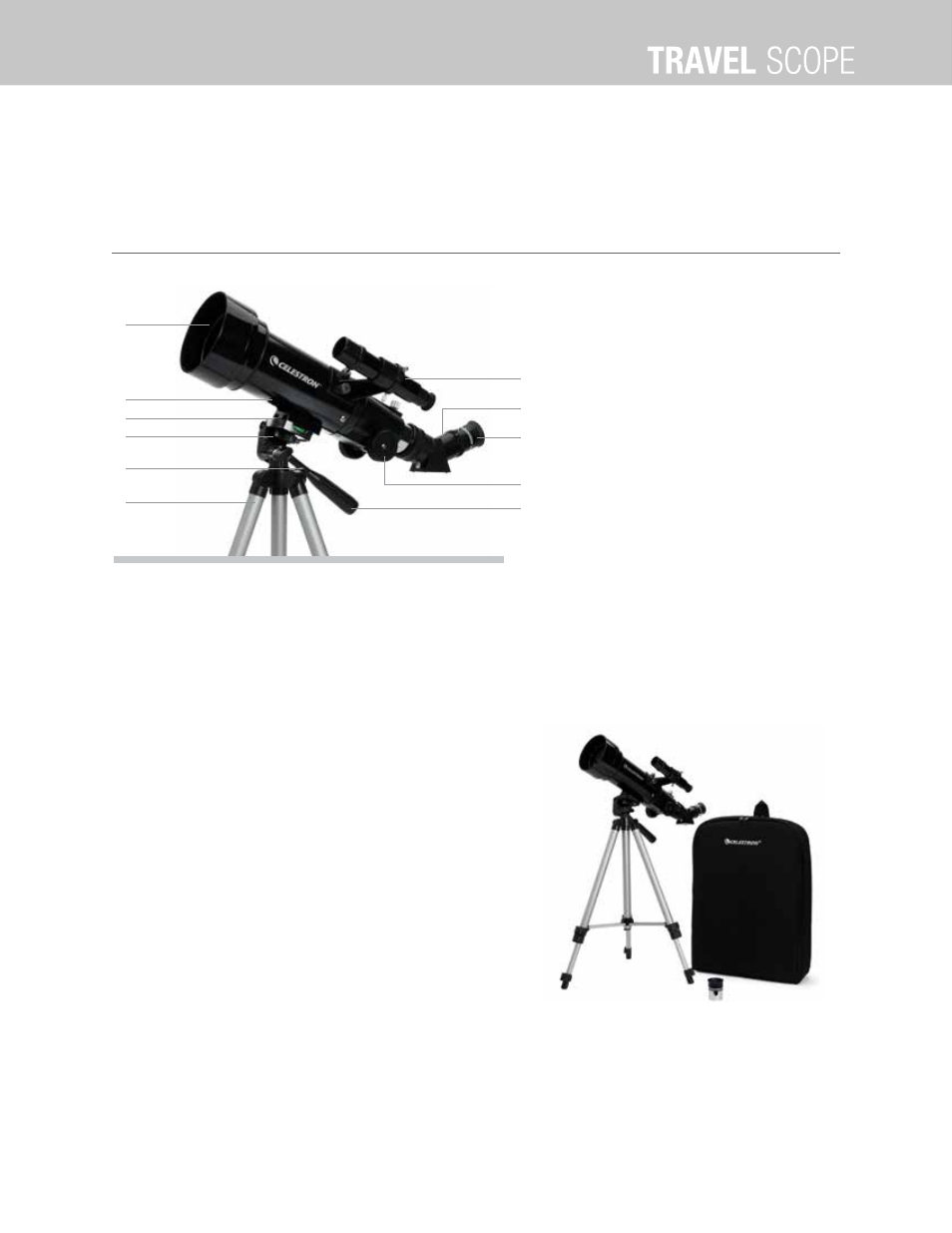

Fig. 2
Fig. 1 Travel Scope 70 (Similar to Travel Scope 50)
