14 BALANCED OUTPUT
Balanced audio output via 3-pin XLR jack.
20
19
16
17
18
15

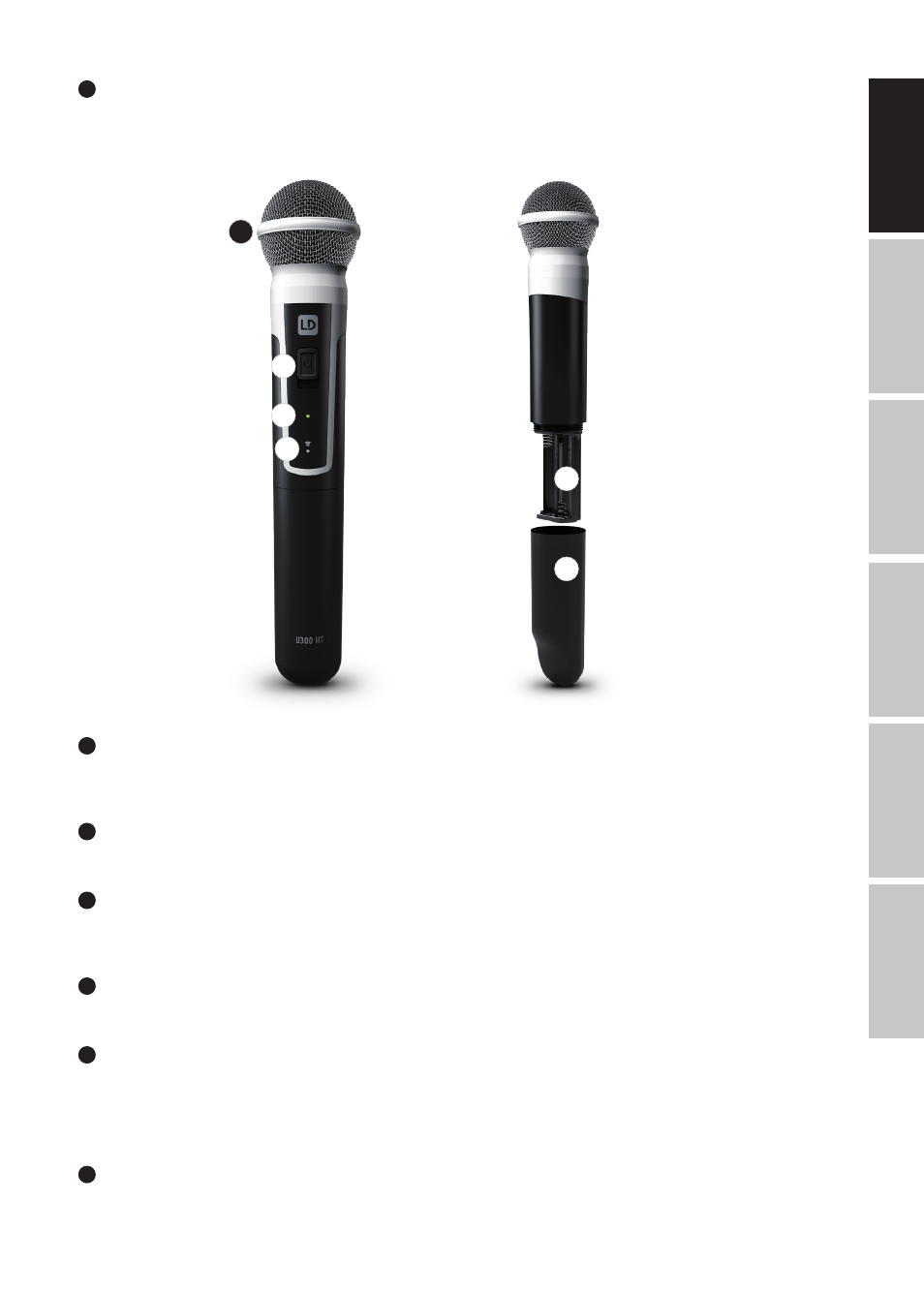

15 MICROPHONE HEAD
The microphone head is interchangeable, the hand-held transmitter is compatible with the microphone heads from the LD U500® series, available
separately.
16 ON / OFF
On/off switch. Move the switch to the ON position to turn on the hand-held transmitter, and to the OFF position to turn it off.
17 STATUS LED
If the charge status of the batteries is sufficient, the LED lights up green when the hand transmitter is switched on. If the LED lights up red, the charge
status is weak. In this case, replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process, the LED flashes green and amber.
18 IR INTERFACE
Infra-red interface for synchronising the radio channel from receiver and transmitter.
19 BATTERY COMPARTMENT COVER
To replace the batteries, open the hand transmitter battery compartment by rotating it anti-clockwise and pulling it from the housing. Remove the used
batteries and replace with new batteries (AA), following the diagram in the battery compartment. Replace the battery compartment cover and rotate it
clockwise to close the battery compartment. If the transmitter is not used for a long period, remove the batteries to avoid damage to the transmitter from
leaking batteries.
20 BATTERY COMPARTMENT
For 2x AA, Mignon
HAND-HELD TRANSMITTER
