STANDARD SPECIFICATIONS

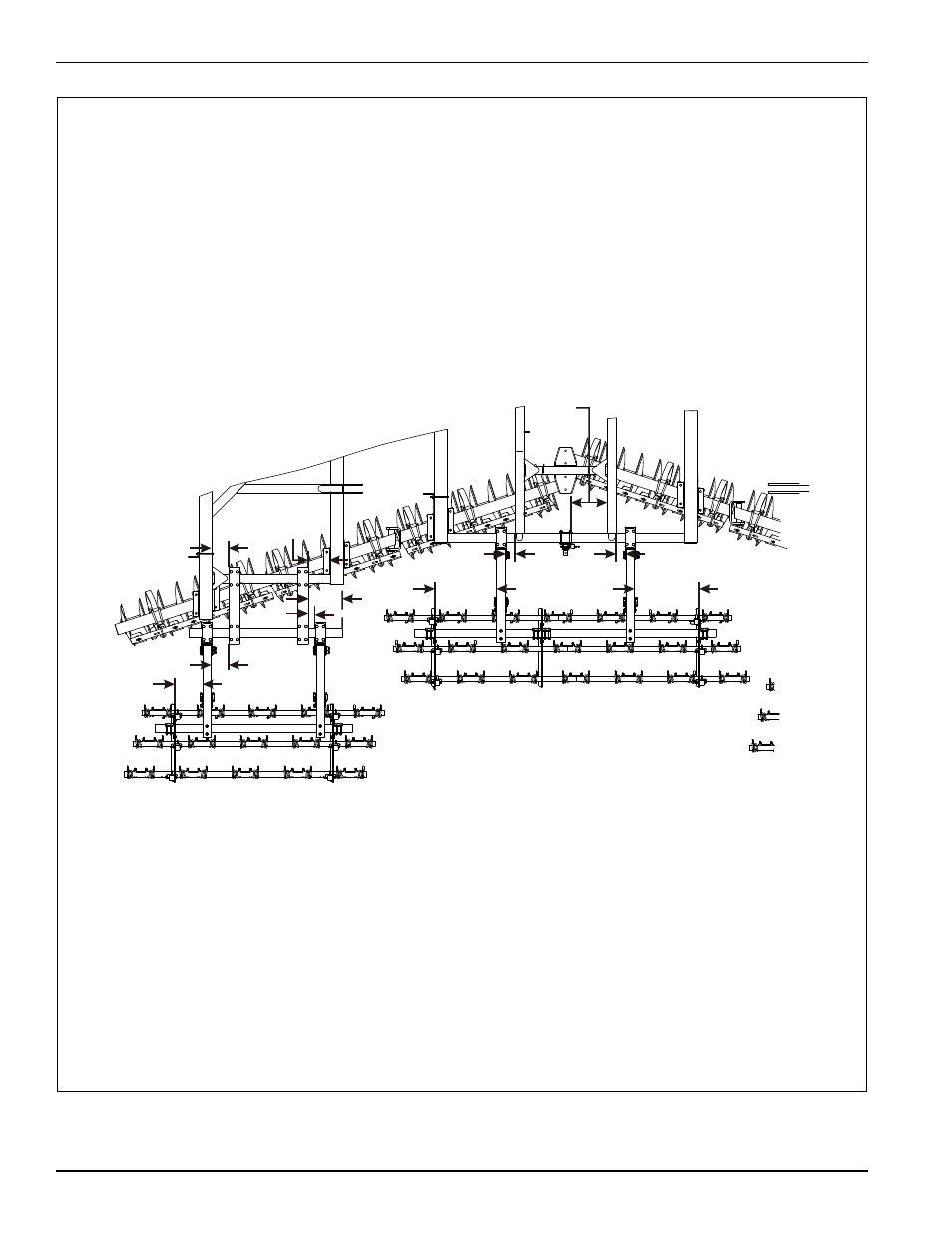

Figure 2-13: Coil Tine Harrow Placement (33' Model)
(Left Half)
7-1/2”
29-3/16”
3”
4”
15-1/2”
16-1/8”
10”
4”
6230-33
6230-33 harrow placement p1
12-11/16”
7-1/2”
28-5/32”
