Chapter 1 Product Introduction
4

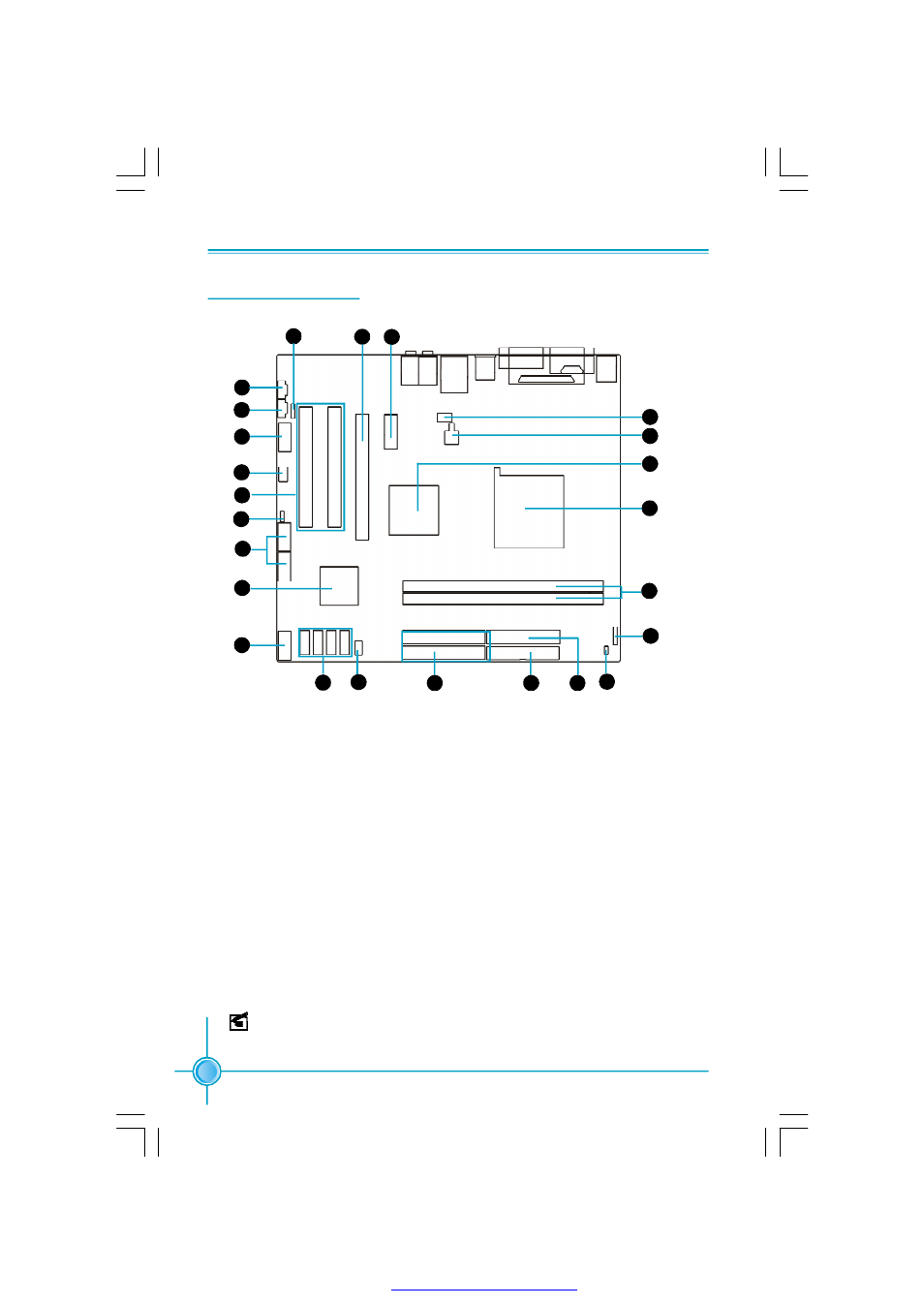

Motherboard Layout
1. CD_IN Connector
2. AUX_IN Connector
3. F_Audio Connector
4. System Fan Connector
5. PCI Slots
6. Clear CMOS Jumper
7. Front USB Connectors
8. South Bridge: SiS
® 966/966L Chipset
9. Front Panel Connector
10.SATA II Connectors
11. SPI Connector (optional)
12. IDE Connectors
13.FDD Connector
14.ATX 24-pin Connector
15. INTR Connector
16. IrDA Connector
17. DDR DIMM Slots
18. CPU Socket
19. North Bridge: SiS
® 761GX
20. ATX 12V Power Connector
21.CPU_Fun Connector
22. PCI Express x1 Slot
23. PCI Express x16 Slot
24. S/PDIF_OUT Connector
Note: The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
