Chapter 2 Installation Instructions
CPU
This motherboard Supports AMD ® Socket AM2 Athlon TM 64x2 Dual-Core,Athlon TM
6 4 and Semp ro n TM 6 4 P ro c esso r w ith H yper-T hansp ort Tech nolog y.
For the detailed CPU support list qualified on this motherboard,please visit the
webside:http://www.foxconnchannel.com

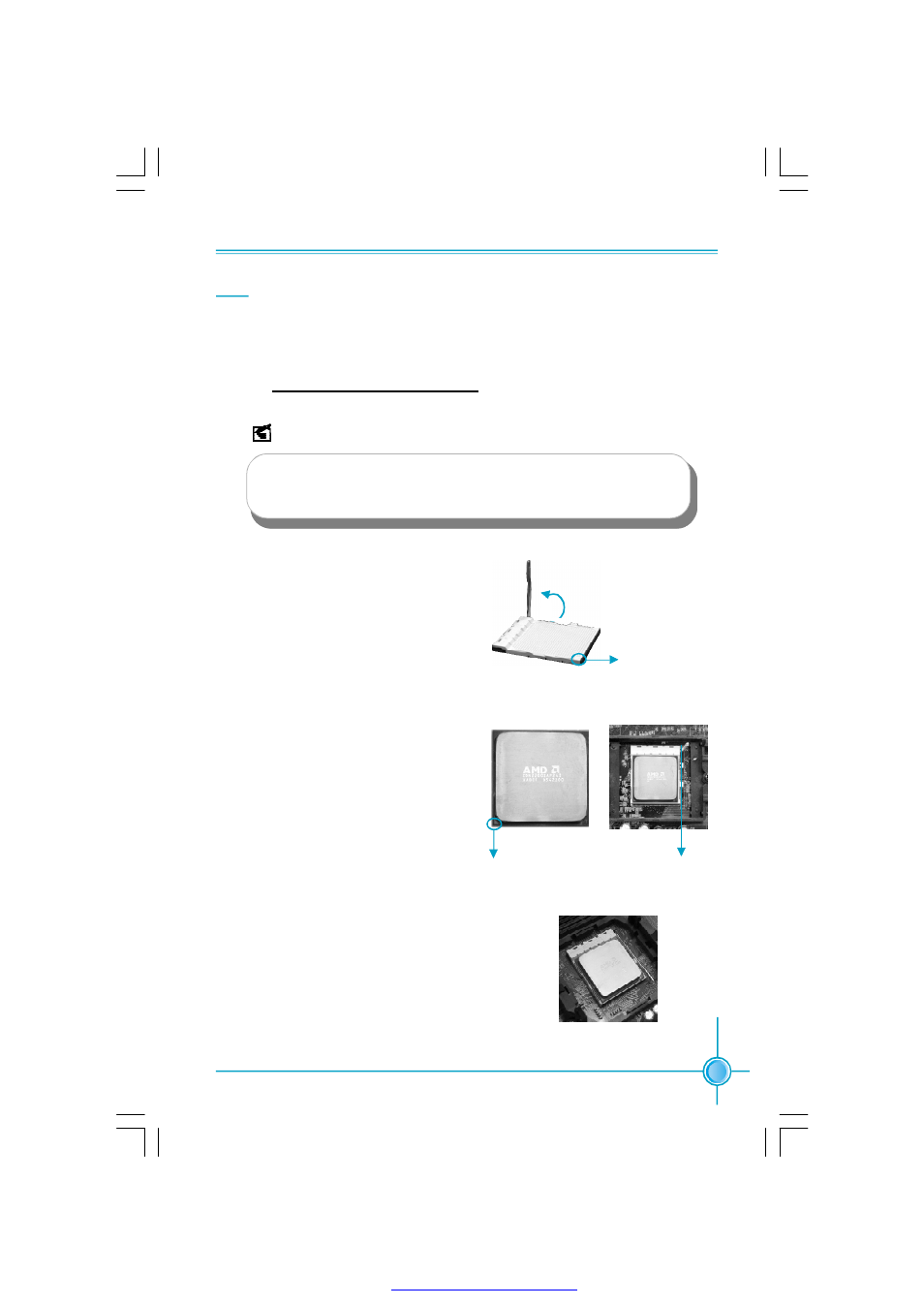

Installation of CPU
Follow these steps to install the CPU.
1. Unlock the socket by pressing the le-
ver sideways, then lift it up to a 90 o
angle.
2. Align the cut edge to the gap in the
base of the socket. Carefully insert
the CPU into the socket until it fits in
place.
3. W hen the CPU is in place, press it
firmly on the socket while you push
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.
Note :
Please makesure that your CPU has the heatsink and the cooling
fan . Please install them properly befor turning on.
Gap in the base
90 o
Push down the socket
lever to secure the CPU.
Cut edge
