The S rotary switch increases (clockwise adjustment) or decreases (counter-
clockwise adjustment) the oscillation stroke speed. The increments of
adjustment and the minimum and maximum allowable stroke speeds are
dependent on the preferred units of measurement (see the Oscillator Motor
Setup Screen later in this manual for details).The current value is displayed on
the LCD screen. Speed adjustments can be changed at any time before or
during operation and will take effect immediately.
PROGRAMMING BUTTON:
The Program push button changes the control state from running
(operational) mode to programming mode, and back to running
mode. While-ever the control is in programming mode, the
program icon on the lower right corner of the LCD screen will
appear as follows:
NOTE: programming can only be accessible while the PIPE
KAT
®
is stopped and not welding.
OSCILLATOR CONTROL PROGRAMMING
There are two levels of programming mode:
 General Programming Mode: To access the General
Programming Mode, push the Programming Button
for a minimum of two (2) seconds, but no more than
ten (10) seconds. The screens that are accessible
under this mode are:
o Feature/Set-up screen and;
o 10 x Auto cycle storage screens.
 Advanced Programming Mode: this second level of
programmable features is meant only to be used by
higher level and/or qualified users and requires that
the Program push button be pressed for more than
ten (10) seconds. The screen that is accessible under
this mode is:
o Motor Setup screen
To change state either from programming mode (any screen) to running (operational) mode,
press the Programming Button once (it does not need to be pressed for any specific duration).
The various values and settings will be saved.

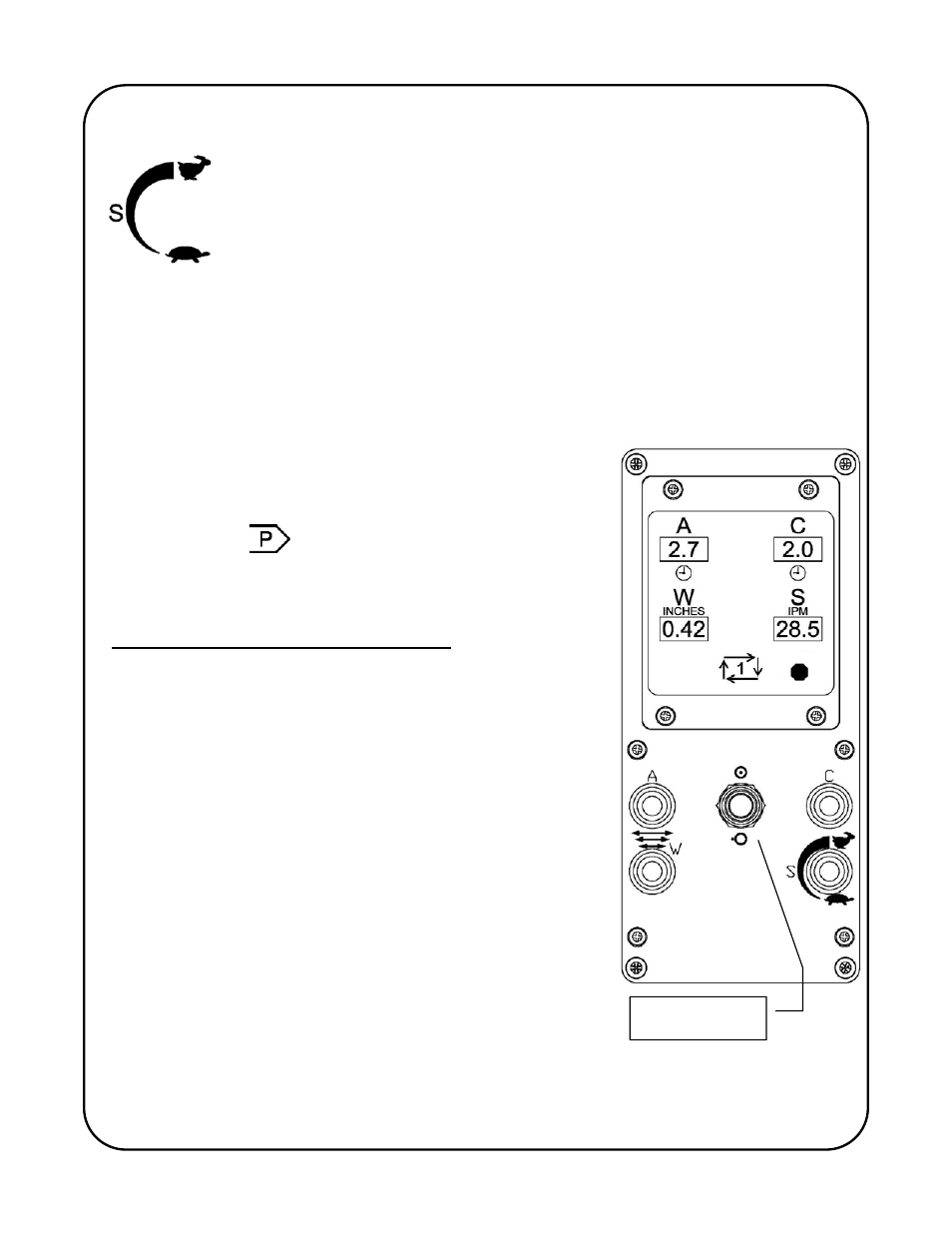

PROGRAMMING
