22

Follow the operating instructions for the pump and in-
structions below:

à

Protect the housing from coming into direct contact
with the condensation.

à

Check the operating current of the pump and the
power supply for consistency.

à

Connect the pump securely to the control line.

à

Only use the alarm contact together with a contactor
or relay to switch off the outdoor part.

à

Do not open the pump housing.

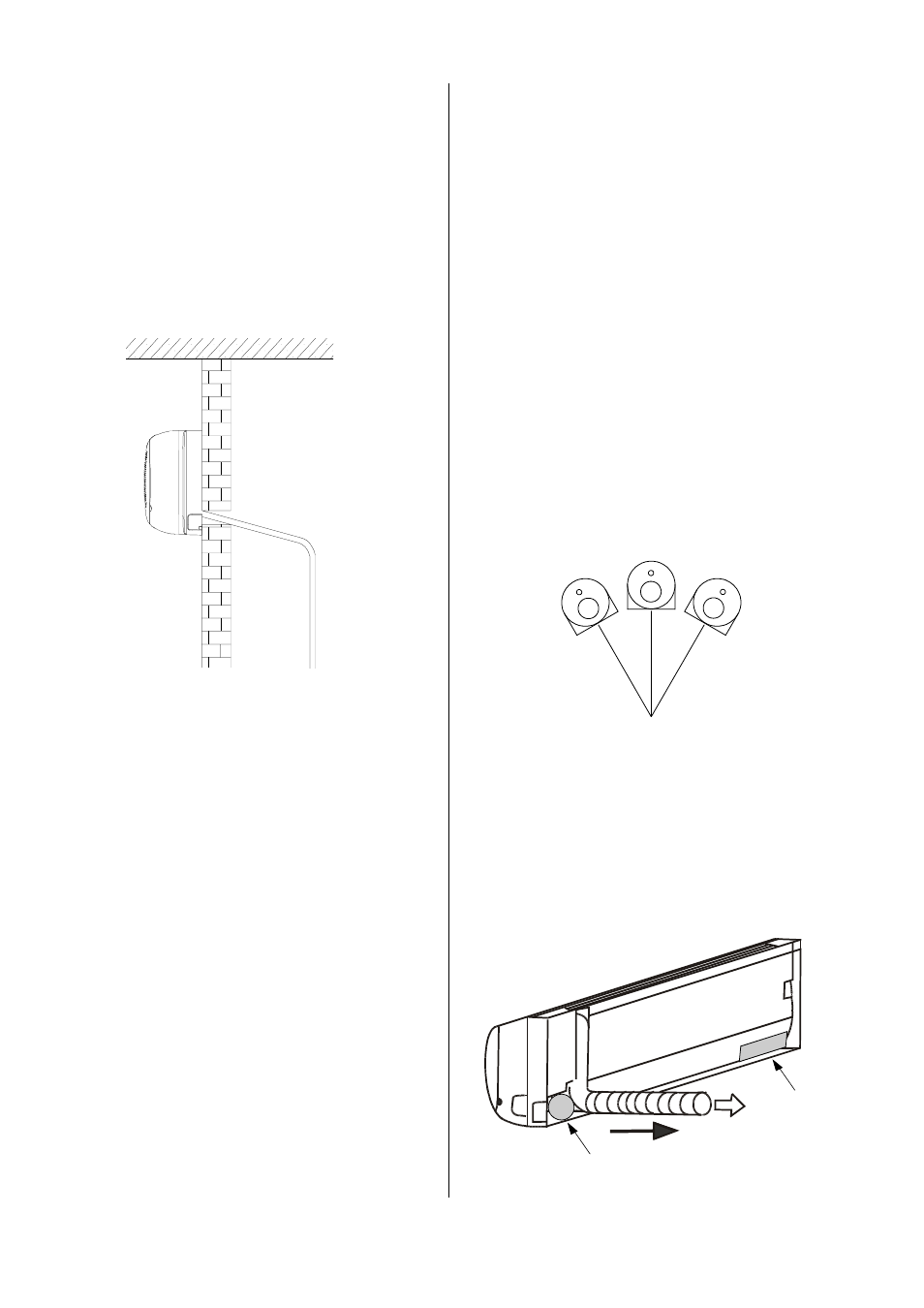

Reservoir with sensor

The reservoir collects the condensation. A sensor
switches the pump on when a specific water level has
been reached.

The electronic sensor allows the reservoir to be rotated
by up to 30° on its access.

Rotation of the axis up to 30°

to the right and left

Possible assembly positions:

Pump

The pump is attached to the right side of the unit (seen
from the back) using the supplied, self-adhesive strips.

Condensation hose on the indoor unit

Ensure the following before laying the condensation
hose:

à

The condensation drainage line is generally placed in
the same guideway as the refrigerant lines.

à

If as a result of structural design conditions, it is nec-
essary to have a different guideway for the conden-
sation hose, the hose can also be guided to the in-
door unit through a different drain.

à

Make sure there is an adequate incline for drainage.
It must be at least 2 %!

à

If the condensation is being guided to a drainage
line, please install a siphon-like hose guideway which
acts as an odour seal.

à

If the unit is being operated at outside temperatures be-
low 0°C, the lines must be placed in such a way that
they are protected from frost.

à

If the supplied condensation hose is not long
enough, it can be attached to standard hoses with a
17 mm inner diameter.

à

Always use suitable hose clips.

à

After the hose has been laid, check to make sure
that condensation can drain freely.

2 % incline

Using an external condensation pump

The condensation pump which can be purchased as an
accessory (Ref. No. 1613167) transfers the condensa-
tion which accumulates in the indoor unit to drains that
are placed in inconvenient locations, even if the drain is
located above the unit. The pump can be installed in-
side the unit.

The condensation pump consists of 2 components:

à

The reservoir with sensor

à

The pump

Reservoir

Pump
