Model 5152 User Guide

Issue 4, September 2013

Studio Technologies, Inc.

Page 37

Model 5152

Video Generator/Audio Embedder Module

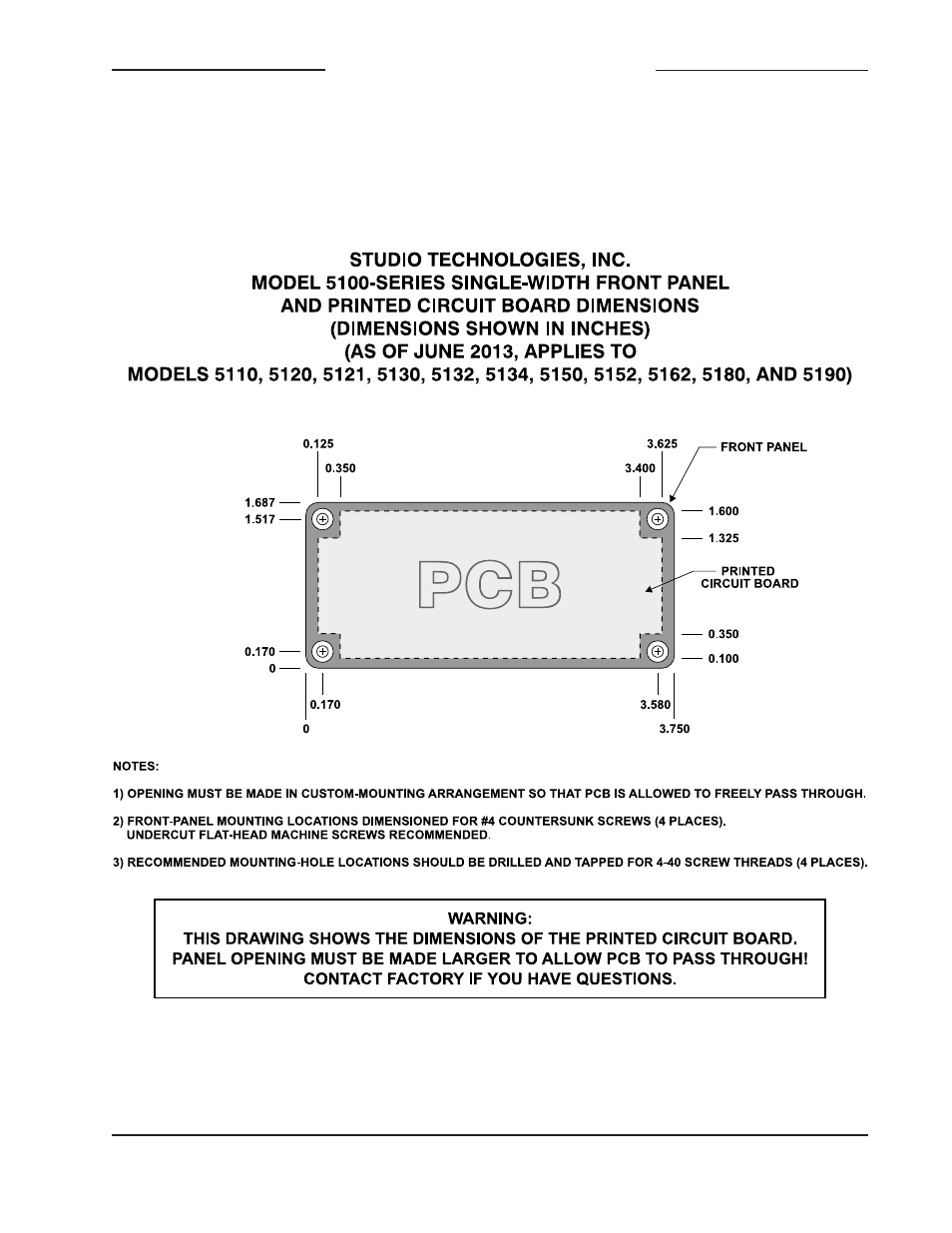

Appendix C–Model 5152 Front Panel and Printed
Circuit Board (PCB) Dimensions
