Editing machining positions
1 1 2
1 3
1 4
1 5
1 6

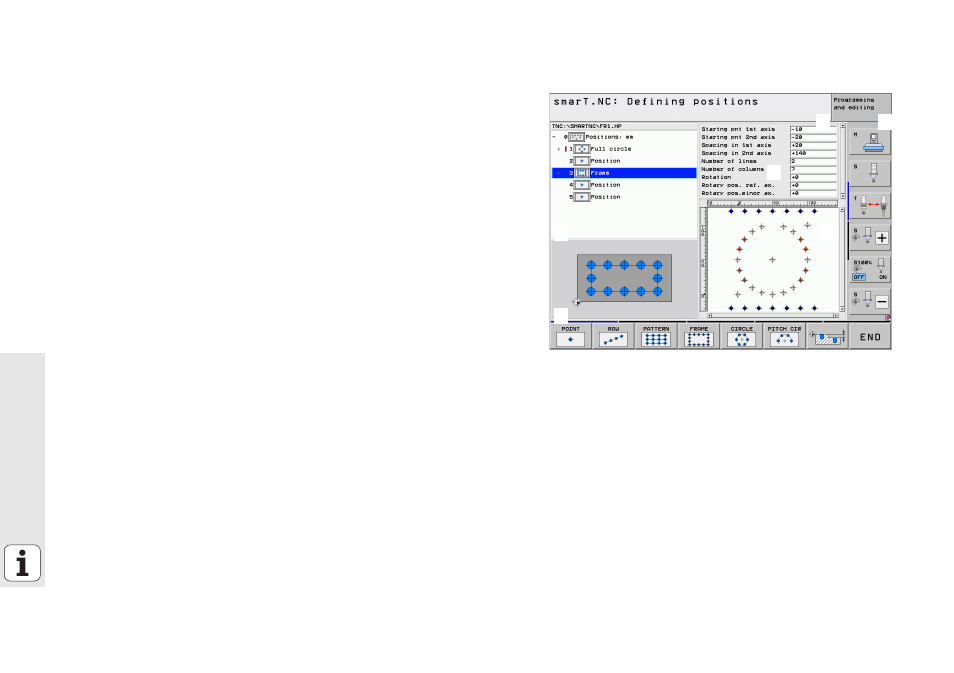

1 Header: Operating mode text, error messages
2 Active background mode of operation
3 Tree view in which the defined working patterns are shown in a
structured format
4 Form window with the appropriate input parameters
5 Support graphics window, in which the input parameter currently
active is displayed
6 Graphics window, in which the programmed machining positions are
shown immediately after the form is saved
