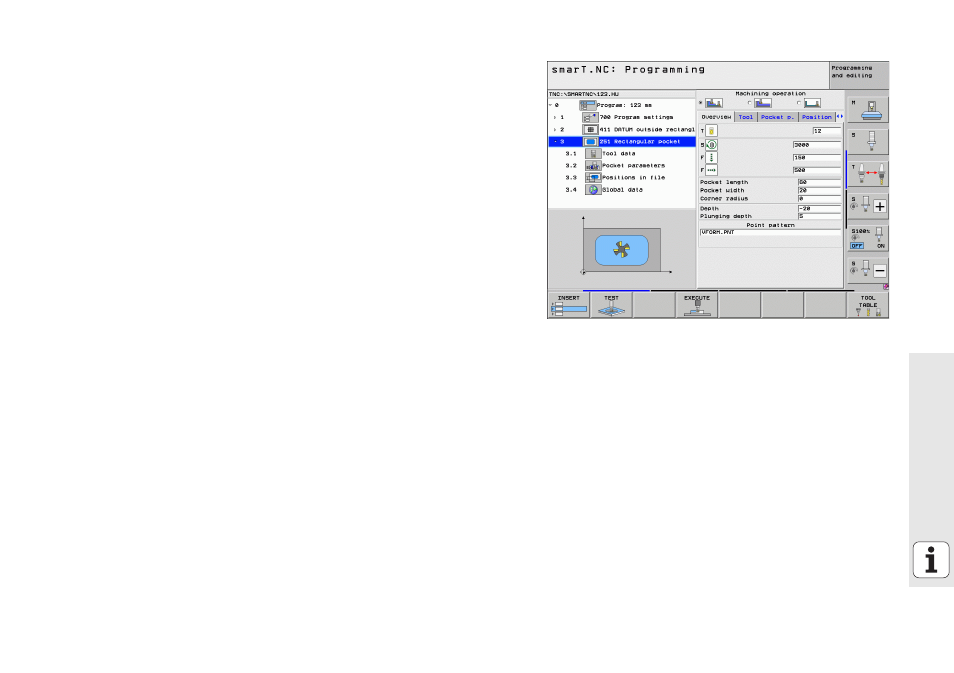

Mouse operation
Using the mouse is also very easy. Please note the following specifics:
„ In addition to the mouse functions familiar from Windows, you can also
click the smarT.NC soft keys with the mouse
„ If multiple soft-key rows are present (represented by lines directly
above the soft keys), you can activate a row by pressing the
corresponding line
„ In the tree view, click the arrows pointing to the right to show detail
forms, and click the arrows pointing down to hide them again
„ In order to change values in a form, click any input field or option box,
and smarT.NC automatically switches to editing mode
„ To exit the formula again (to end the editing mode): Click anywhere in
the tree view. Then smarT.NC asks whether to save changes in the
form
„ If you move the mouse over any window element, smarT.NC displays
a tooltip. The tooltip contains brief information on the respective
function of the element
