Circles, To probe a circle – HEIDENHAIN IK 5293 User Manual
Page 89
Advertising
75
Quadra-Chek
®
5000
To probe a circle (3 points)

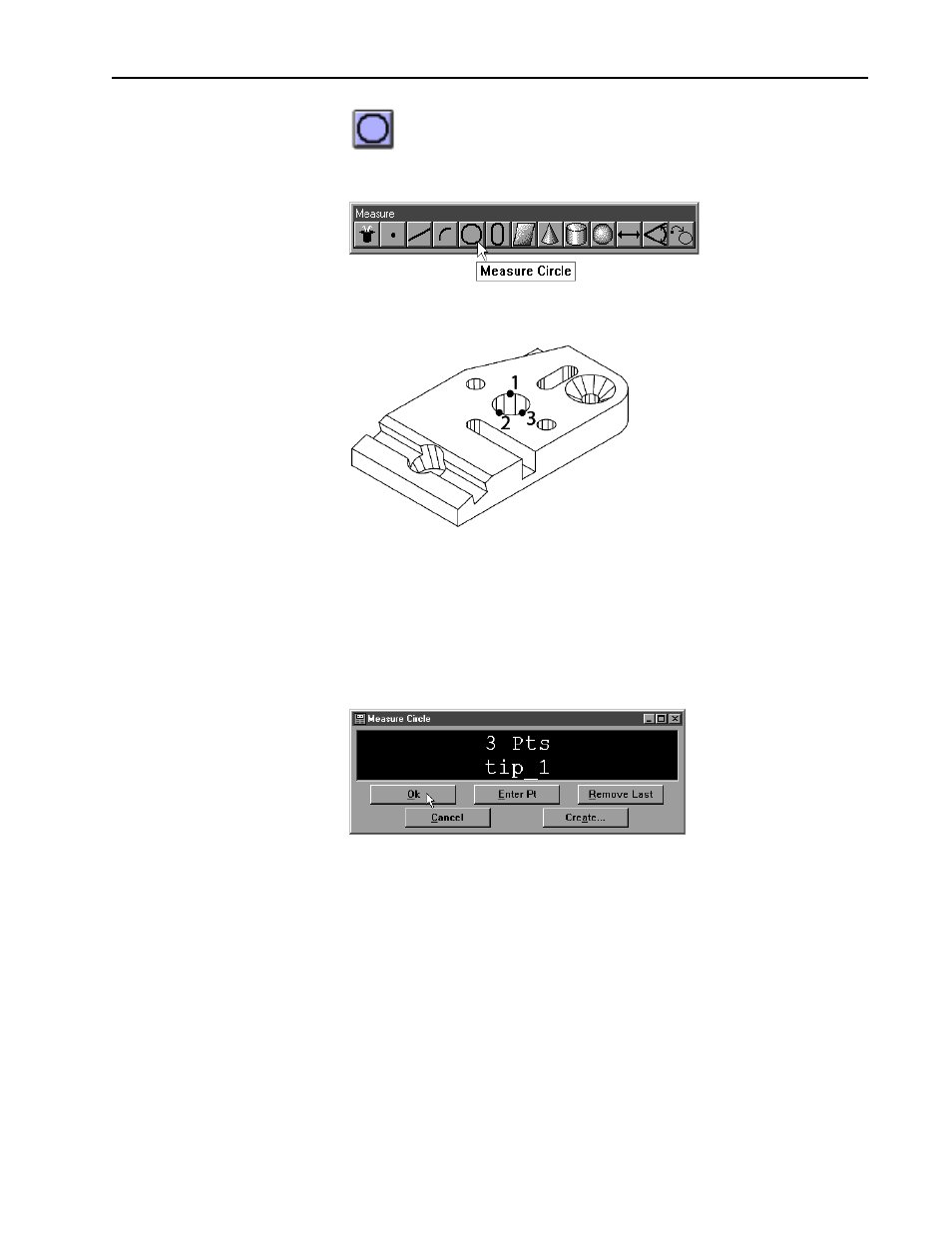

Step 1
Click the circle button on the measure toolbar.
Step 2
Probe a point on the edge of the circle
Step 3
Probe the second point approximately 120 degrees from the first point.
Step 4
Probe the third point approximately 120 degrees from the second point.
Step 5
Click OK in the dialog box.
