Locate the section of shrink wrap material and wire connectors that are
provided in the brake kit. Place a shrink wrap section over the wires
before splicing them together. Connect the wires to each other using
the crimp connectors provided. Once the connections have been made,
center the shrink wrap material over the splices. Using a heat gun heat
the shrink wrap material until it is shrunk down and creates a water tight
seal over the connections.
Place all excess wire into the center frame tube and insert the rubber
grommet.
Repeat this process on the brake on the other side of the trailer.
Repeat this process on the second axle brakes.

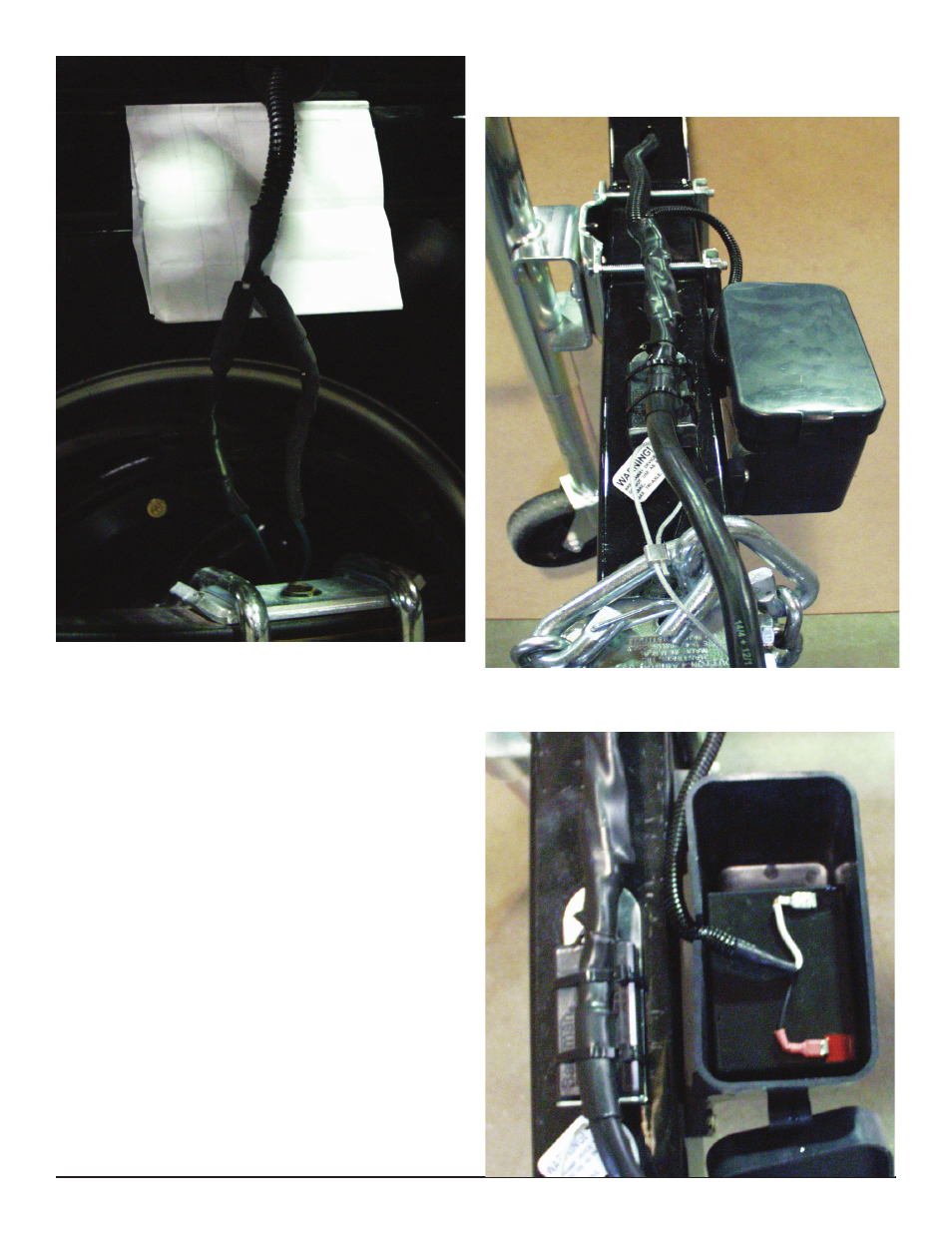

BREAKAWAY SWITCH
Place the breakaway switch on the tongue harness so it is located behind
the decal on the top of the tongue. Align the mounting hole in the
breakaway switch with the hole pre-drilled in the tongue at this location.
Secure the breakaway switch to the tongue using the self-tapping screw
provided.
BATTERY BOX
Locate the battery box. Position it on the side of the tongue aligning the
holes in the battery box with the pre-drilled mating holes in the side of
the tongue. Secure in place using four (4) self-tapping screws provided.
