DSMC2 V-LOCK BATTERY MODULE

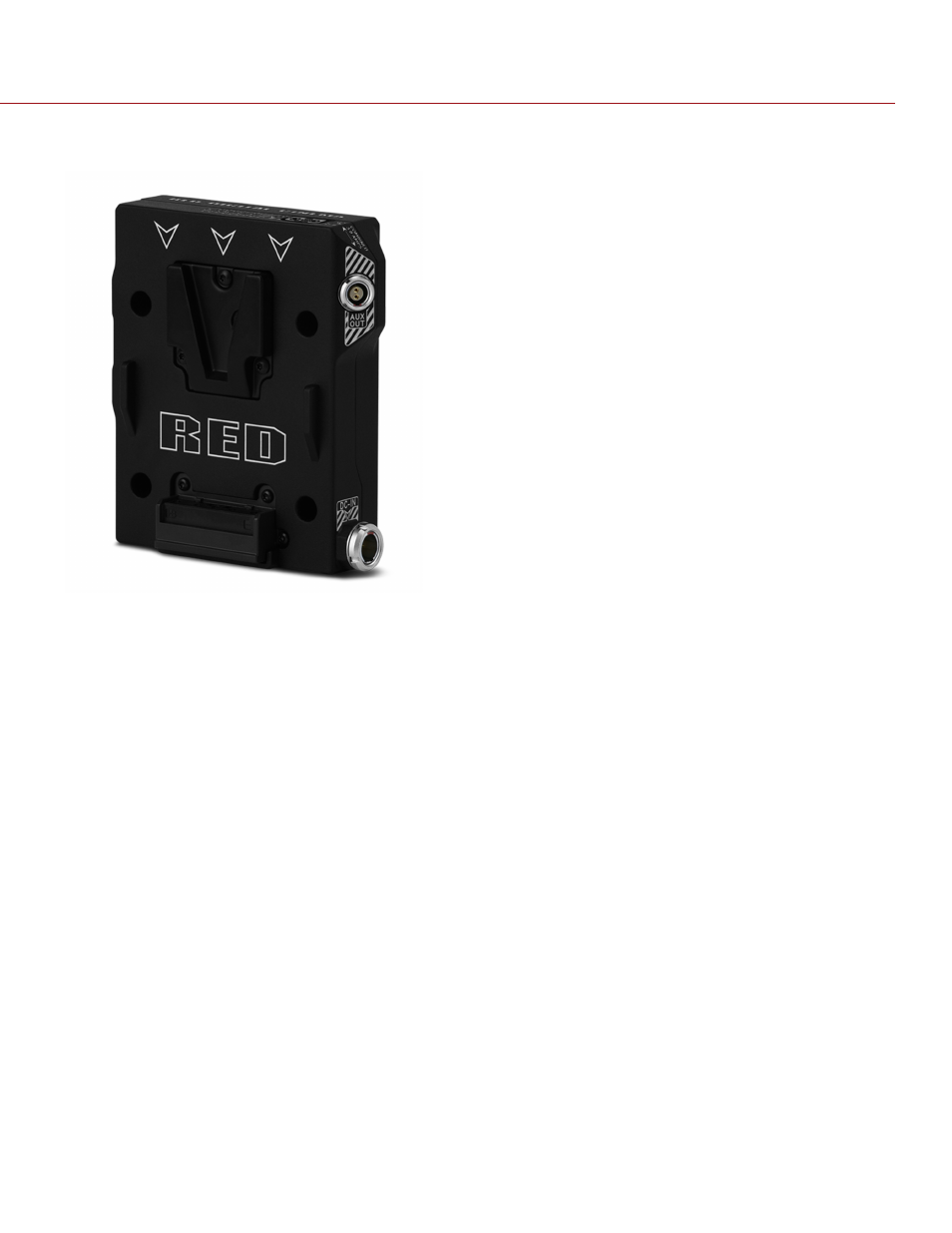

Figure: DSMC2 V-Lock Battery Module
The DSMC2 V-Lock Battery Module is a low profile cable-free module that enables you to power your DSMC2 BRAIN
and camera accessories using RED BRICK, REDVOLT-V, or other standard V-Lock batteries. The V-Lock mount and
protected release button ensure ongoing power even during mobile shoots.
This DSMC2 battery module offers a P- Tap connector on top and an auxiliary port on the side for powering
peripherals and accessories. Together the P-Tap and auxiliary connectors support a maximum combined current of
3.8 Amps.
This module also offers a DC IN power port that can be used to power the camera system when the module is
attached to the BRAIN. When DC IN power is supplied to the module, and the camera is turned off, this module can
also trickle charge the attached V-Lock battery.
Manufactured from robust aluminum alloy, this DSMC2 battery module offers a blend of utility and power support in a
lightweight and space-saving form factor. The DSMC2 V-Lock Battery Module is an ideal power solution for use with
most DSMC2 expanders. Alternatively, connect the DSMC2 V-Lock Battery Module directly to your DSMC2 BRAIN for
a low-profile, battery-only power configuration.
NOTE: This design of the DSMC2 V-Lock Battery Module (720-0052) replaces the earlier version of the module (720-
0049), which did not have the AUX OUT and DC IN ports. All other functionality is the same.
