Operation Instructions SKM 1-03/-04/-05/-06 and 2-03/-04
Chapterl 3: Programming
8
© AXING AG | Switzerland | Reserving change in design and type - We cannot be held liable for printing errors
2014-09-17
3
Programming
The programming of the modules is done by means of the remote control SKZ 10-00 included in the
scope of delivery of SKS x-xx..
Select main menu (also exit without saving changes)
Exit menu (and saving changes)
Numeric bottuns
Confirm selection
Decrease audio level | cursor left
Inecrease audio level | cursor right
upwards side by side | Selects a character in service name
downwards side by side | Selects a character in service name
Change channel | cursor up
Change channel | cursor down
3.1
Preparation
During initial operation and all programming of the modulator module, a monitor must be connected to the
monitoring outputs (see Fig. 4).
3.1.1
Control switch
To control the unit first slide the front panel switch to ON position.
When programming is ready, the front panel switch must be in OFF position. This will prevent accidental
changes to be made while controlling other units

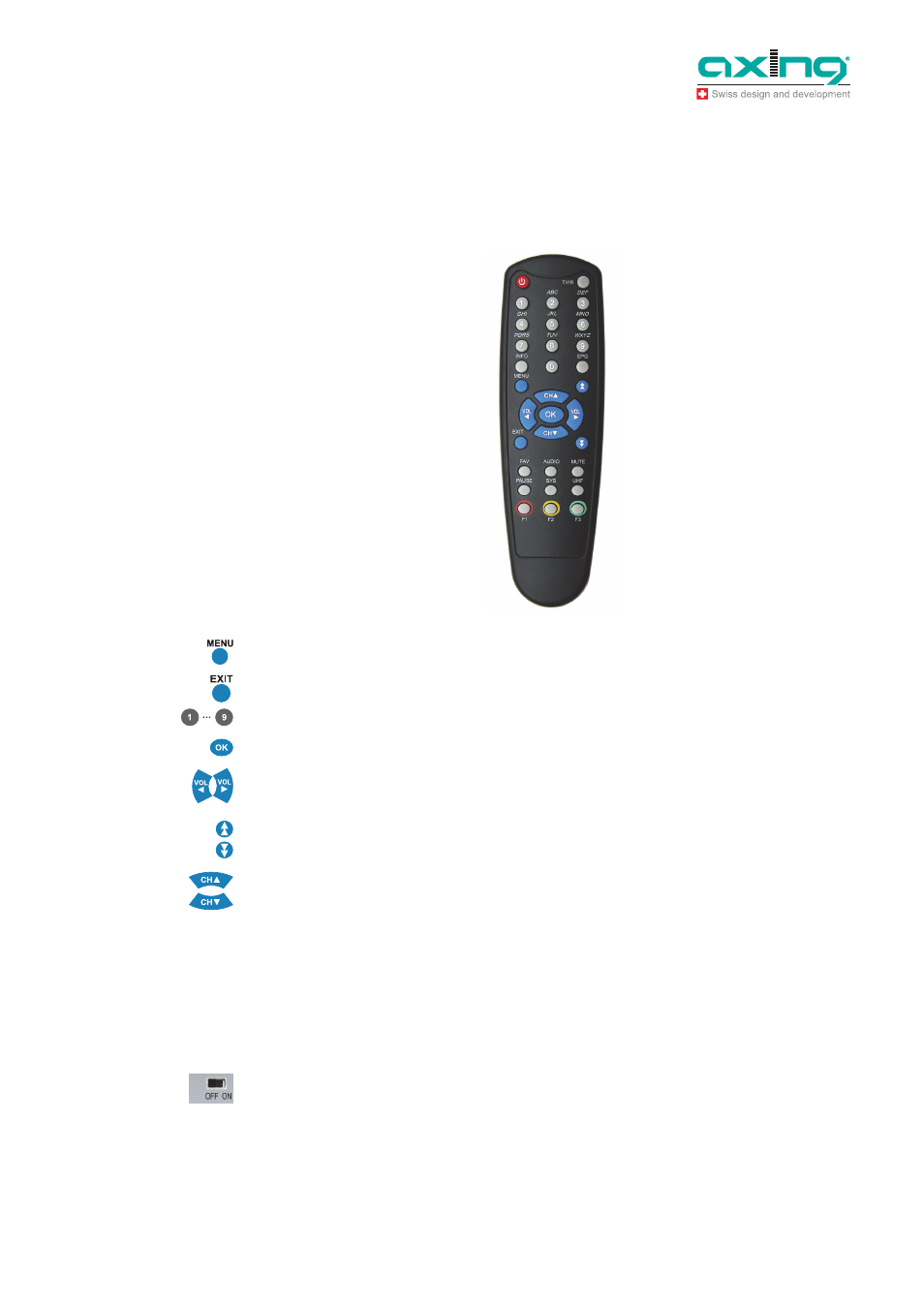

Fig. 6: Remote control
