Power SuPPly ComPonent rePlaCement
9-20
powermax
105 Service Manual
5. Remove the upper two T20 screws from each
side of the power supply.

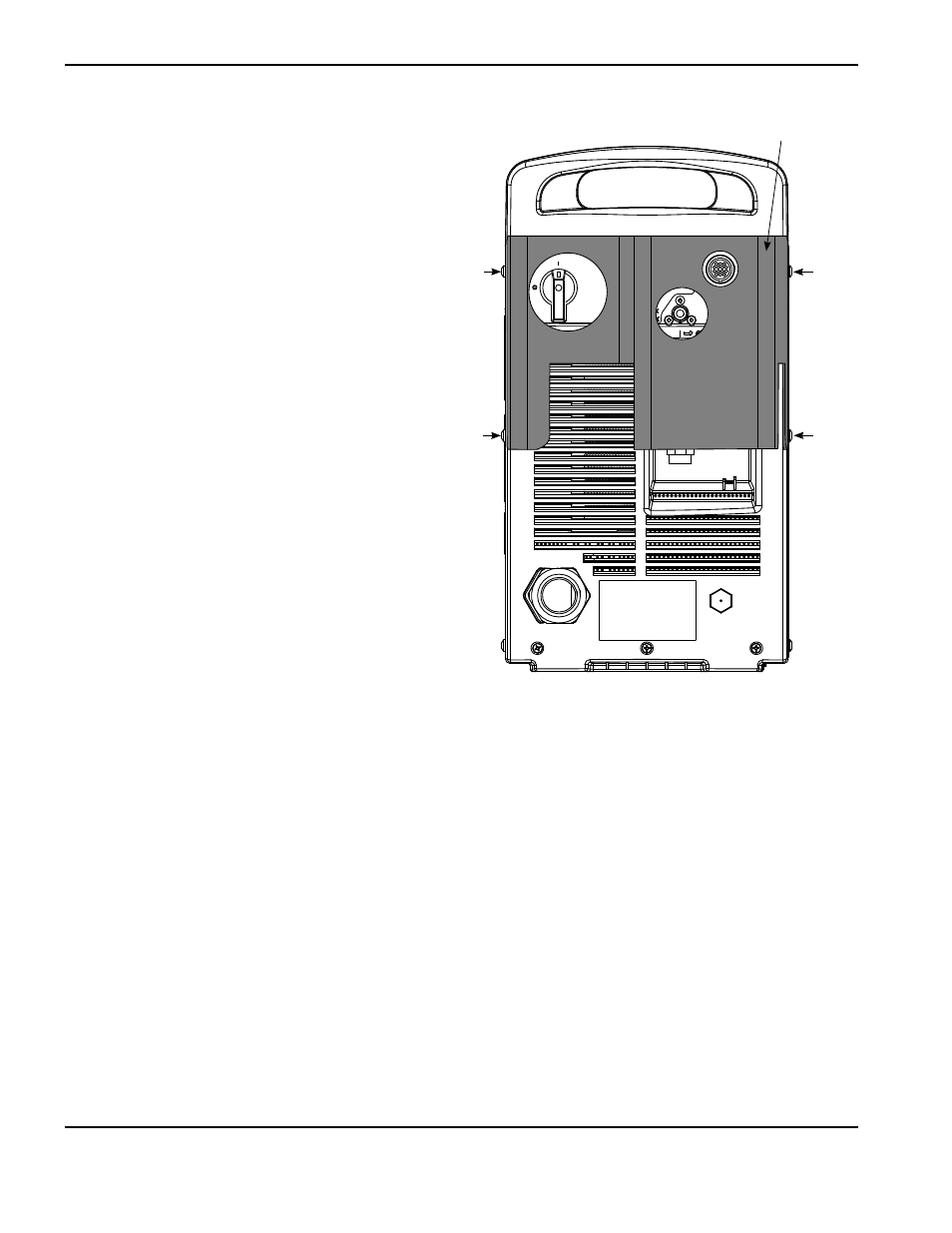

6. Place the filter cover over the filter on the rear
of the power supply, aligning the screw holes
with the holes in the power supply cover.
7. Install the four T20 screws, provided in the
kit, through the filter cover and power supply
cover. Tighten the screws to 23 kg cm
(20 in.-lbs).
Screw
Screw Screw
Screw
Filter cover
