Chapter 2 - Installation
2.2 Mounting the viewfinder support
To mount the LDK 4020, LDK 4021 or LDK 4025 viewfinder on top of the SuperXpander/
Xpander you need to install the viewfinder support that was supplied with the viewfinder.
Mounting procedure
1. Remove the camera if it is already mounted.
2. Place the viewfinder support on top of the SuperXpander/Xpander and align the pins in the
left and right supports with the holes in the SuperXpander.
3. Make sure that the support is aligned properly.
4. Using the four Torx screws supplied, secure the viewfinder support to the SuperXpander/
Xpander (reach inside the unit and secure from underneath).
5. Attach the viewfinder support connector to the socket at the right front side.
6. Use the two internal cable clamps to guide the cable along the inside of the
SuperXpander/Xpander.

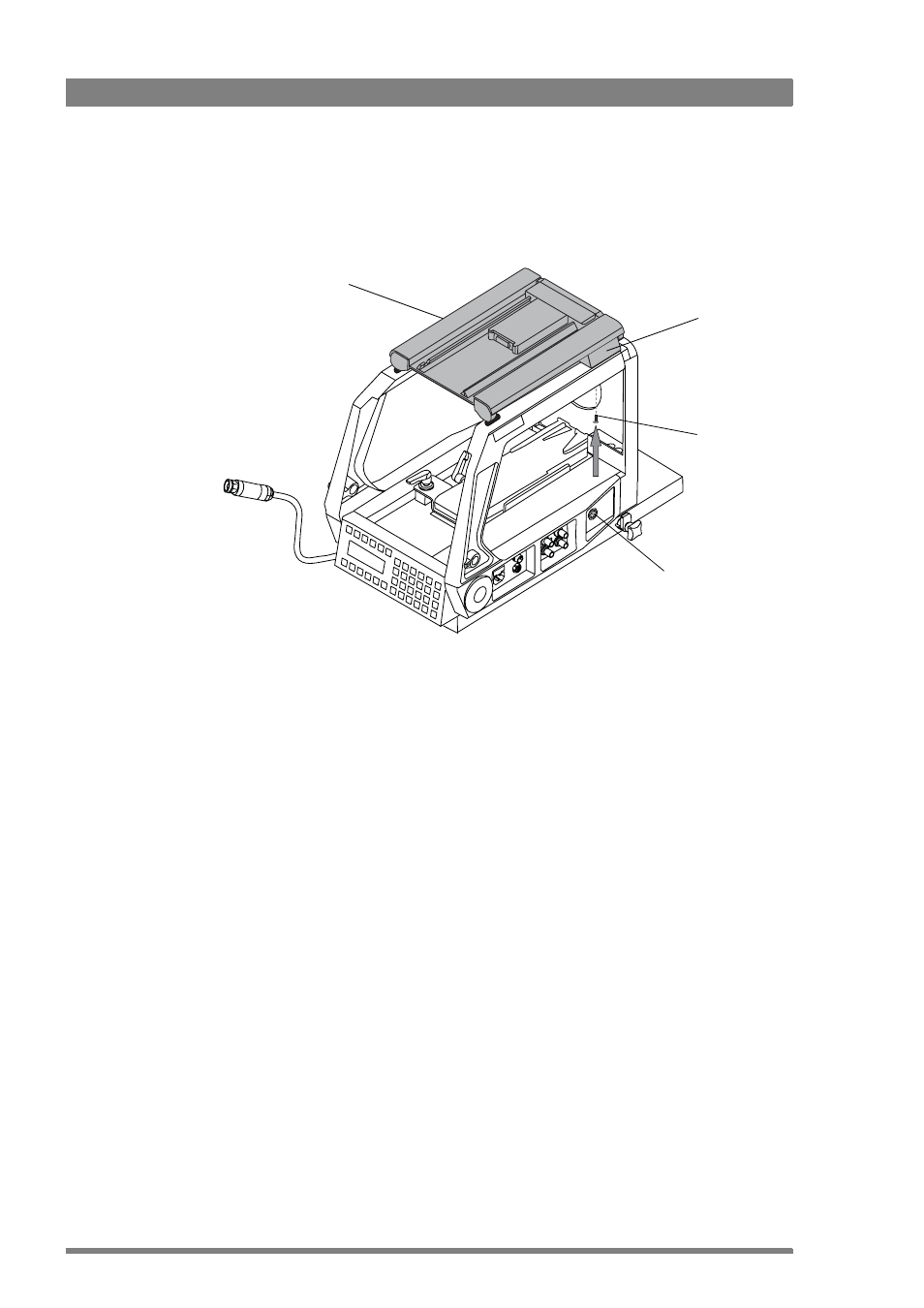

viewfinder
support
support (right
side)
viewfinder
socket
Torx screws
