70 2 Manual Operation and Setup
2.4 D
a
tu
m Set
ting (Without a 3-D T
o
uc
h Pr
obe)
Activating the datum from the preset table in the Manual
operating mode

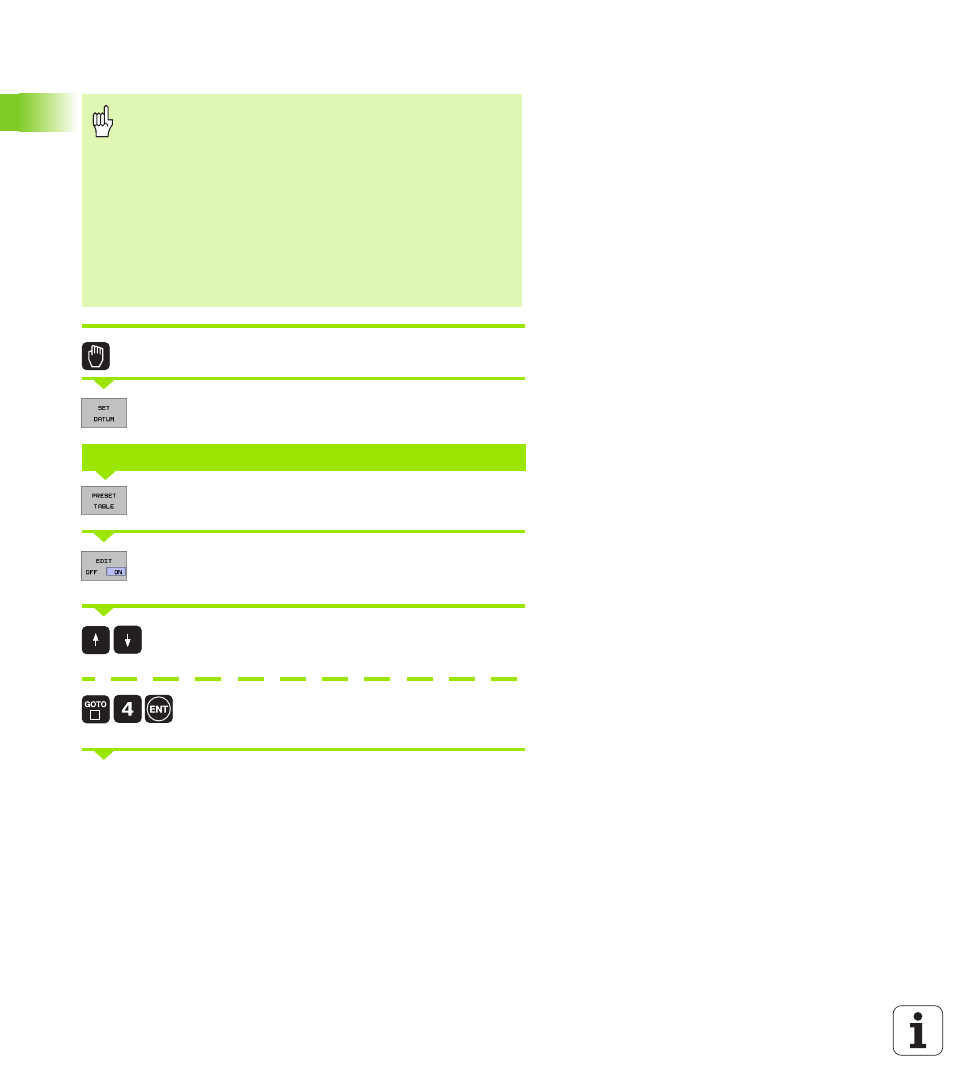

Select the Manual Operation mode.
Call the function for setting the datum
Call preset table
Release the preset table for editing: Set the EDIT
OFF/ON soft key to ON.
With the arrow keys, select the datum number that
you want to activate, or
With the GOTO key, select the datum number that
you want to activate. Confirm with the ENT key.
When activating a datum from the preset table, the TNC
resets all coordinate transformations that were activated
with the following cycles:
„ Cycle 7, Datum Shift
„ Cycle 8, Mirroring
„ Cycle 10, Rotation
„ Cycle 11, Scaling
„ Cycle 26, Axis-Specific Scaling
However, the coordinate transformation from Cycle 19,
Tilted Working Plane, remains active.
DATUM SET X=
