Quick Guide
For the first time, select the new operating mode
and create a new program

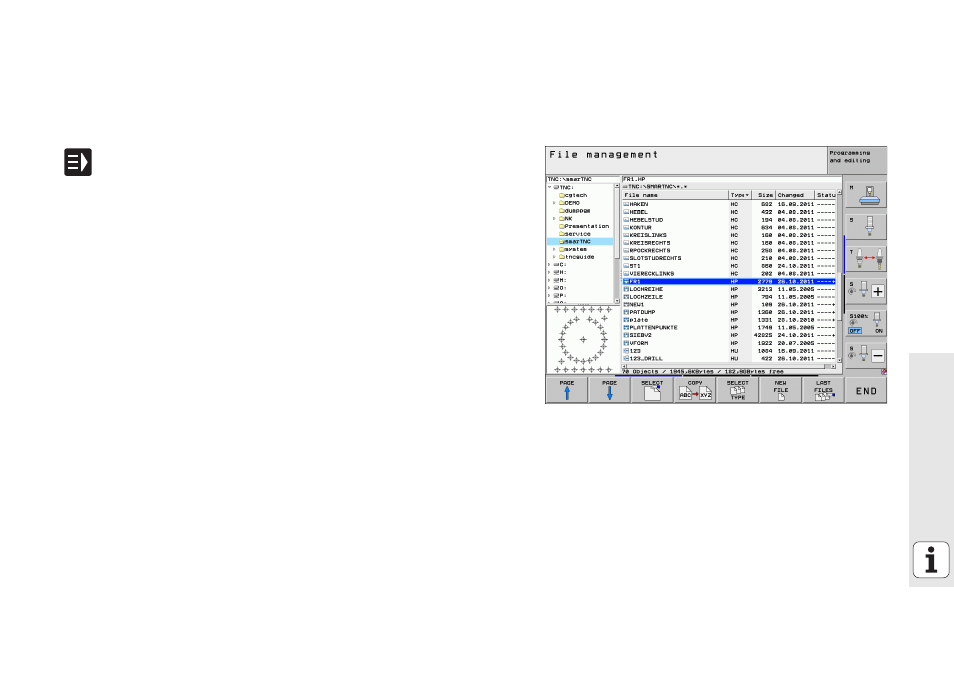

U Select the smarT.NC operating mode: The TNC is found in
the file management (see figure at right). If the TNC is not
located in the file management: Press the PGM MGT key
U In order to write a new machining program, press the NEW
FILE soft key. smarT.NC opens a pop-up window
U Enter a file name with the extension .HU, and confirm with
ENT
U Confirm with the MM (or INCH) soft key or screen button.
smarT.NC creates an .HU program with the selected units
of measurement and automatically inserts the program
header form. This form contains in addition to the workpiece
blank definition the most important presettings valid for the
rest of the program
U Select the standard values and save the program header
form: Press the END key: You can now define the working
steps
