Checking the Installation

1.

On the LEX and REX units, check that the Power, Activity, Link and Host LEDs are on.


For direct connect, if the Host or Link LEDs are permanently off, then the cabling between the LEX

and REX units may not be installed properly or is defective.


For network connect, if the Link LED is blinking, then the network connection between the LEX

and REX unit is not complete and there may be faulty cabling, network components,

misconfigured network components, or the LEX and REX may need to be re-paired

together (see the section on pairing a LEX and REX unit).

2.

For Windows users (XP, 7, 8, 8.1, 10), open Device Manager to confirm that the Ranger 2304GE-LAN has

been installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the “+” sign.

If the Ranger 2304GE-LAN has been installed correctly, you should find it listed as a “Generic USB Hub”.

To open Device Manager in Windows XP:

Right click “My Computer” then select: Properties >> Hardware tab >> Device Manager

To open Device Manager in Windows 7:

In Windows Explorer, right click on “Computer” then select: Manage >> Device Manager

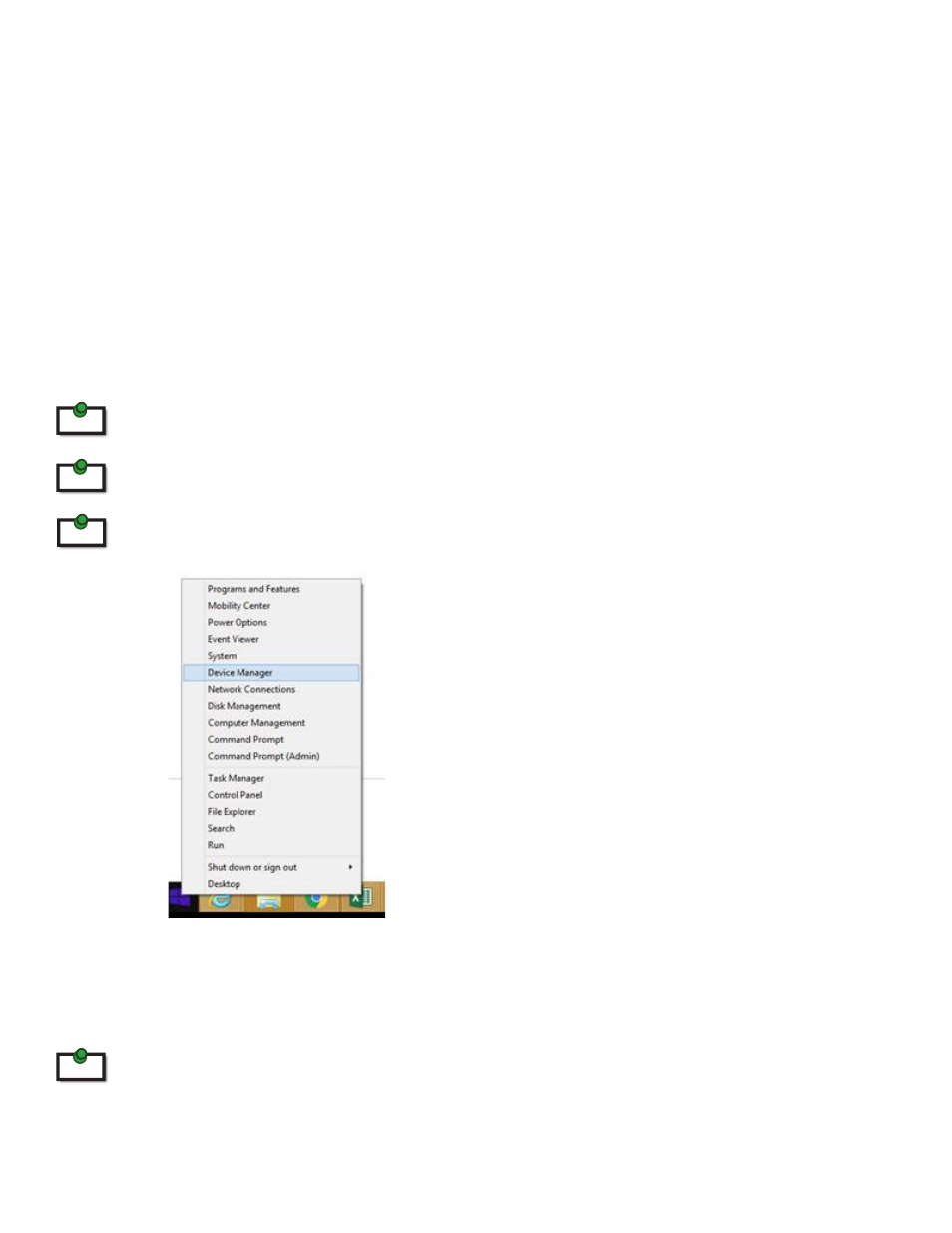

To open Device Manager in Windows 8, 8.1 or 10:

Right click the Start Menu and then select: Device Manager

3.

For OS X users, open the System Profiler to confirm that the Ranger 2304GE-LAN has installed

correctly. In the left hand column under Hardware, select “USB” and inspect the right hand panel. If

the Ranger2304GE-LAN has been installed correctly, you should find it listed as a “Hub” under the USB

High-Speed Bus/USB Bus.

To open System Profiler in OS X:

Open the Finder, select Applications, then open the Utilities folder and double click on the System Profiler icon.

4.

If the Ranger 2304GE-LAN is not detected correctly or fails to detect, please consult the

Troubleshooting Section in this guide.
