- 44
Select the equipment you want to connect or remove
equipment you no longer use in the AV equipment
selection.
Select equipment/connection.
Yellow button: Connect/disconnect equipment.
A Camcorder / camera is connected to the TV set addition-
ally in the following example.
OK Proceed.
The connection diagram is displayed again. Connect the
equipment to the corresponding connections of the TV
set as shown in the connection diagram.
➠ The accessory equipment should be connected to the
TV set with the power off (disconnected from the
mains). See also the instructions in the operating
manual of the equipment to be connected.
OK Proceed.
Operating additional equipment
Connection wizard
The connection wizard serves to connect accessory equipment optimally
to the TV set, make changes to the wiring of the devices or remove mo-
mentarily logged in equipment. The exact process of the wizard depends
on the choice of equipment.
➠ New equipment should not be connected until it has been logged in
in the Connection wizard first.
➠ DVD recorder at AV2 is preset at the factory.
Call TV menu.
 Select Connections,
go to the menu line below.
Select New devices/modifications.
OK calls the wizard.
➠ The connection wizard can be exited at any time with
the END button.
OK Proceed.
The connection diagram shows the currently logged in
equipment.
OK Proceed.
continued on next page
p
OK
END

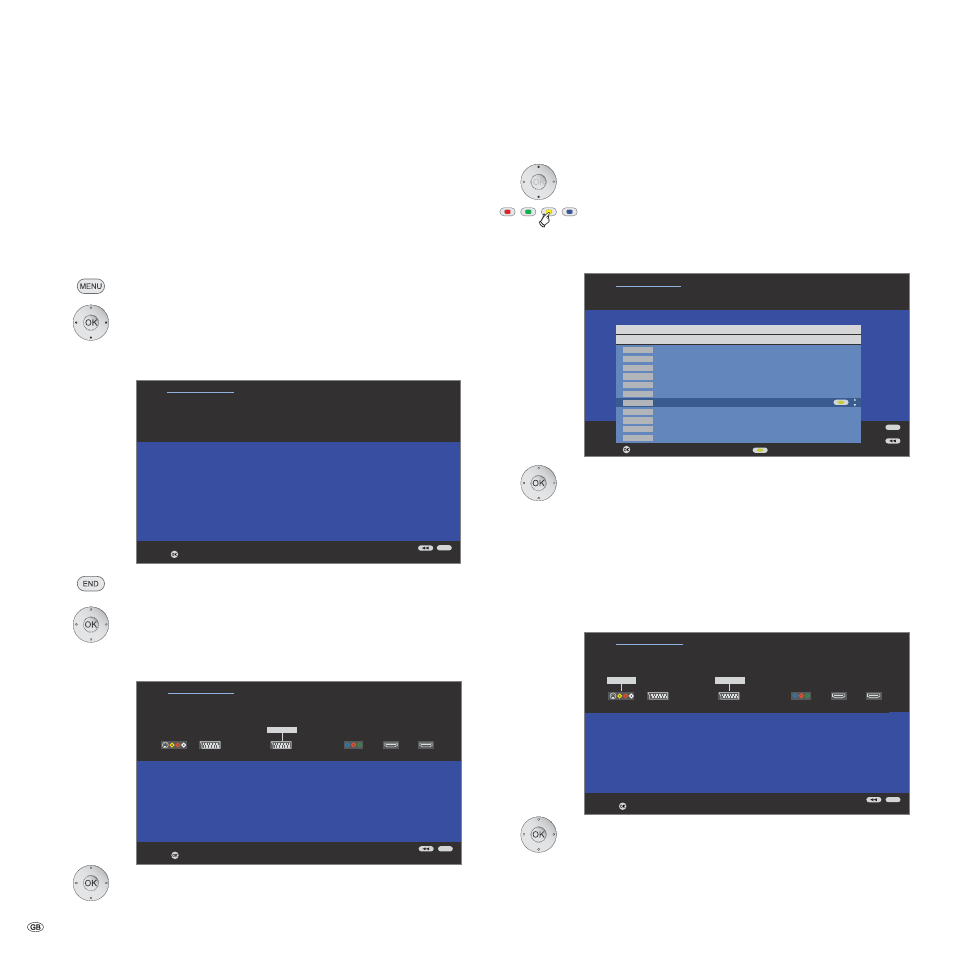

Connection wizard
Connect the satellite dishes or cable/terrestrial antennas of your AV
equipment (recorder, decoder, ...) to the TV set according to the enclosed
operating manual. The connection wizard assists you when you connect your
equipment to the TV set via the AV sockets AV1, AV2 and AVS or via the
SD/HD-COMPONENT IN or HDMI1/2(DVI)* socket.
Proceed
OK
END
Connection wizard
Specify all new AV devices to be connected and all connection changes to the
existing devices here.
Proceed Connect/disconnect
New devices/modifications
AV equipment selection
DVD player
&& ~ ‡
Video
recorder
Satellite receiver
SetTopBox/dBox
Decoder
¢~ ‡ £ ¢
Other device(s) to AV1/2/S
Device to COMP.IN
Device to HDMI1/DVI
Device to HDMI2/DVI
DVD
DVD ³
VCR
SAT
STB
Decoder
Camera
AV
COMP.IN
HDMI/DVI
HDMI/DVI
OK
END
Connection wizard
Now the TV set assumes that you have connected the following equipment:
Proceed
AVS AV1 AV2 COMP. IN HDMI1 HDMI2
DVD ´
OK
END
Connection wizard
Please connect your equipment as shown in the diagram.
Proceed
AVS AV1 AV2 COMP. IN HDMI1 HDMI2
DVD ´ Camera Connection
diagram
AV equipment
selection
