- 50

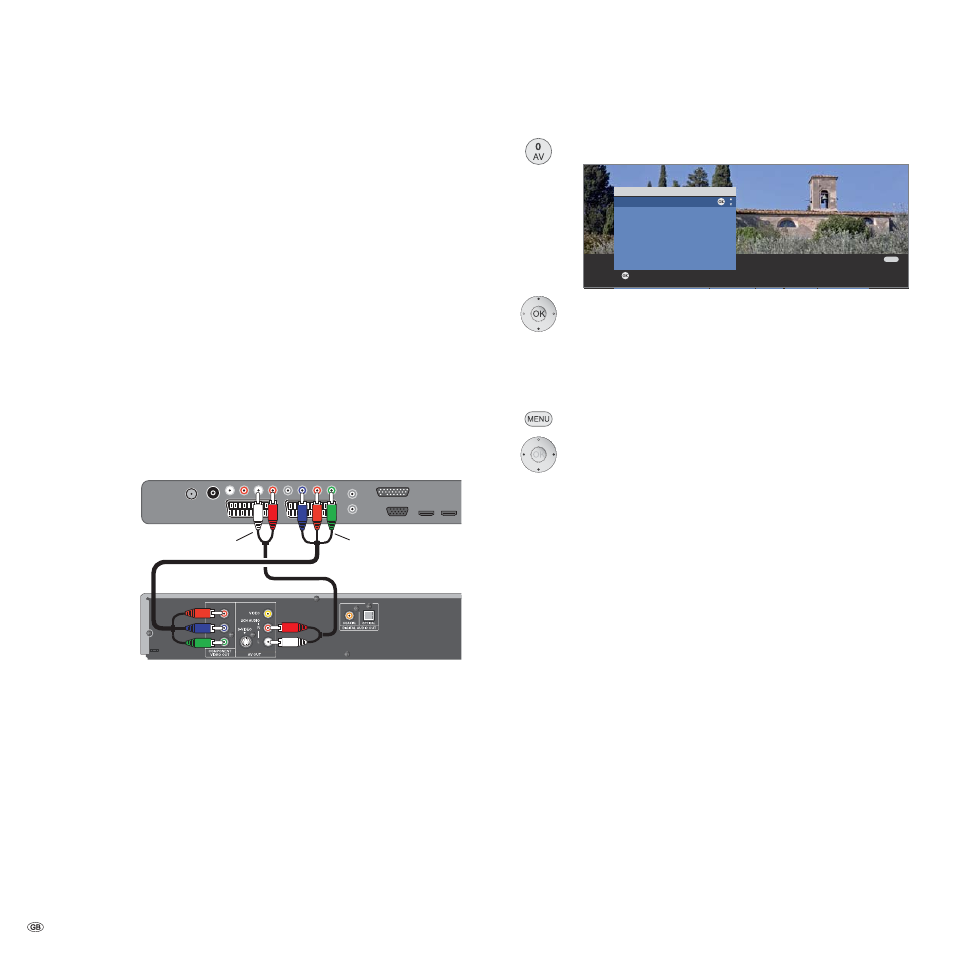

Operating additional equipment
Devices to the Component IN connection
DVD players/recorders or a Set-Top-Box with Component Video con-
nections can also be connected to the Cb/Pb Cr/Pr Y sockets (SD/HD-
COMPONENT) of the TV set instead of to the EURO-AV sockets.
The connecting cable with three cinch plugs each transfers the picture
information with a better quality than a EURO-AV cable. You need another
cable for the sound transmission.
Connecting the device
➠ Device to COMP. IN is registered with the connection
wizard.
Switch off all equipment before connecting.
Connect the Component Video outputs of the external
device by a triple cinch cable to the Cb/Pb Cr/Pr Y sockets
of the TV set.
Connect the analogue audio outputs of the external
device to the AUDIO IN1 L/R sockets of the TV set by a
dual cinch cable.
Alternatively, connect the digital audio output of the exter-
nal device to the AUDIO DIGITAL IN socket of the TV set
with a cinch cable.
The digital audio input can be assigned to the COMP. IN
socket by TV menu  Connections  Miscellaneous  Assign
digital audio input, see page 53.
Playback from the device
Call AV selection.
Select COMP. IN socket,
OK switch over.
Adapt geometry (only possible with certain signals)
This can be used to position the picture correctly and move the position of
the picture (horizontally and vertically) so that it fills out the whole screen.
Call TV menu.
 Select Geometry,
go to the menu line below.
Select the desired setting,
 go to the menu line below.
Make settings.
TV set
Set-Top-Box with
COMPONENT OUT
Cb/Pb Cr/Pr Y AUDIO IN1 L/R
Connection
example of a
Set-Top-Box
OK
OK
END
Switch to ...
COMP. IN
HDMI2/DVI
HDMI1/DVI
PC IN
AVS
DVD-REC
AV1
VIDEO
AV selection
