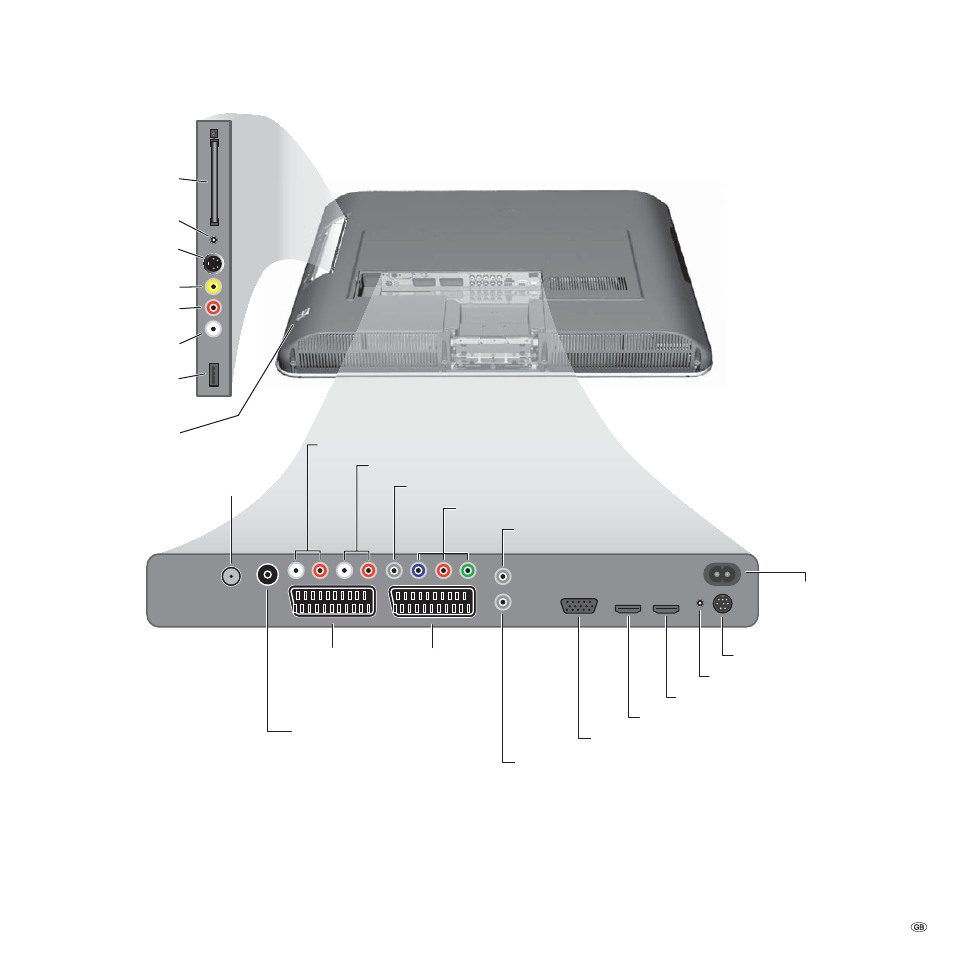

Connections rear side of the device
(1
See page 66 for equipment and upgrade possibilities.
Factory setting:
AV2: DVD recorder
You can change this during the
initial installation (page 11) or in
the connection wizard (page 44).
Before you connect other devices
or make any changes, please start
the connection wizard (page 44)
and the sound components wizard
(page 51), and then follow the
instructions that are displayed on
the TV set.
in
th
B
o
th
a
(p
in
th
ANT-TV
Antenna/cable
analogue/digital
(Tuner 1)
mains switch
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO OUT L/R - audio output left/right (analogue)
AV1
Euro-AV
socket 1
AV2 (RGB)
Euro-AV
socket 2
220-240V~ 50/60Hz
mains connection
SERVICE - service socket
PC IN - VGA/XGA input
HDMI2 - HDMI (DVI) input 2
AUDIO DIGITAL IN - digital audio input
AUDIO DIGITAL OUT - digital audio output
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
Headphones
connection
S-VHS connection (AVS)
(e.g. for camcorder)
Video in (AVS)
Audio in right (AVS)
Audio in left (AVS)
AUDIO IN1 C - centre audio input (analogue)
HDMI1 - HDMI (DVI) input 1
USB connection
(USB stick/card reader)
ANT SAT
(1
Satellite antenna
(Sat tuner 1)
AUDIO IN2 - audio input (analogue)
Common Interface
(CI-Slot)
