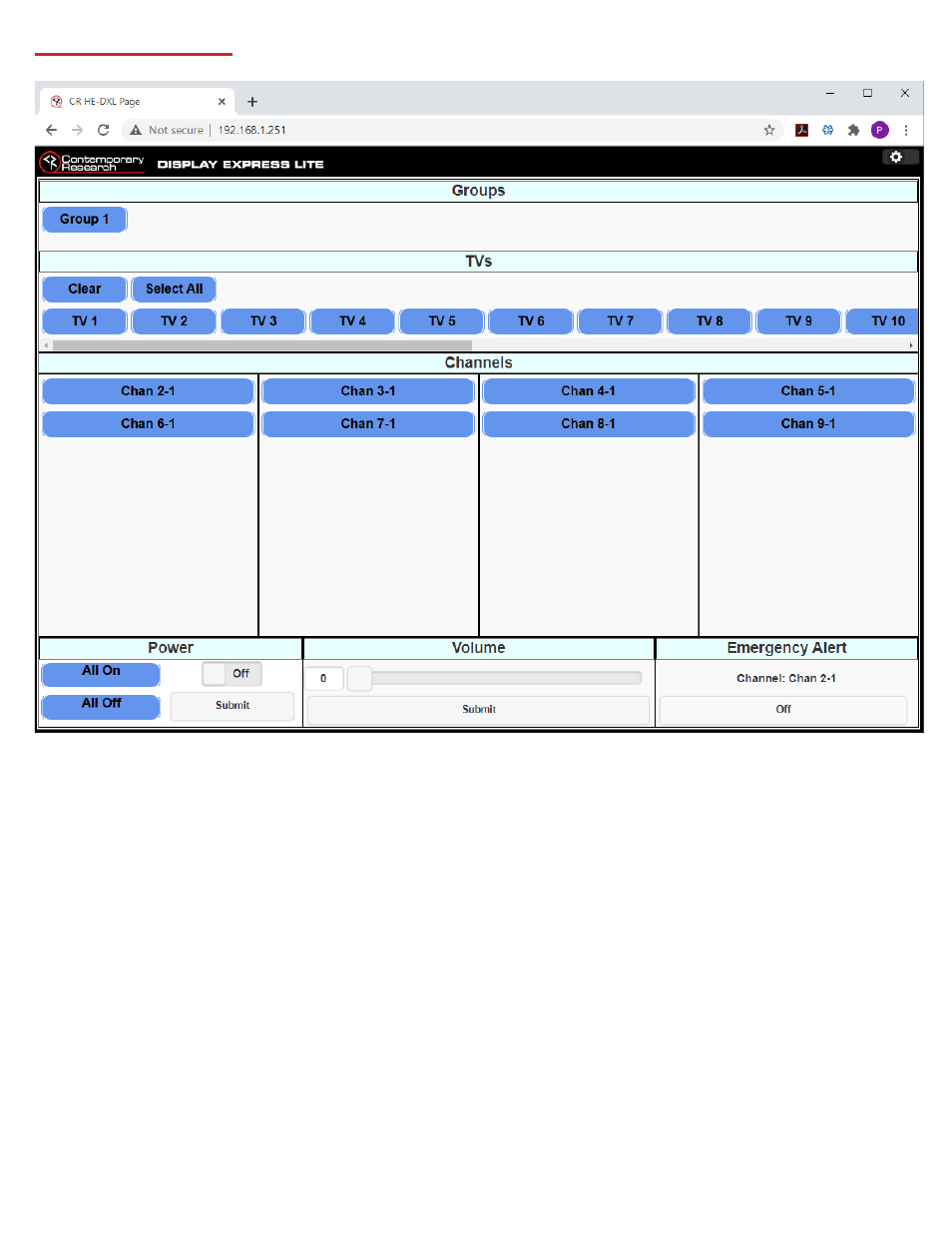

Display Express Lite
Display Express Lite is a web page that is hosted in the ICE-HE-DXL Display Control Center and can be accessed by any device with an internet
browser. This will allow for easy system control from any computer, smart phone, or tablet. The Display Express Lite web page is accessed
by entering the IP address of the ICE-HE-
DXL in the browser’s address bar. The page will scale to fit the screen of the control device.
Operation is simple. Select a Group, TV, or multiple TVs and select an action. The action can be a channel selection, volume, or power
command. Selecting the Clear button will clear the selected Groups or TVs.
Display Express Lite by default will send the iCC-Net control commands via RF and UDP broadcast data packets.
Display Express Lite supports control of up to 128 of any combination of display controllers, tuner/controllers, IPTV decoder/controllers, or
tuners. The display controllers, tuner/controllers, IPTV decoder/controllers, or tuners are represented by the TV buttons on the screen. The
user can select from up to 32 source channels as well as control volume and power for the displays. For convenience, global All On and All
Off buttons are available.
The default configuration has 20 TVs in one group and 8 source channels.
