9.3.4 Mounting SEQUENZA 5 B to SEQUENZA 5 B
To setup a SEQUENZA 5 B speaker with
a further SEQUENZA 5 B speaker, you
must use the L-bracket provided with the
speaker.

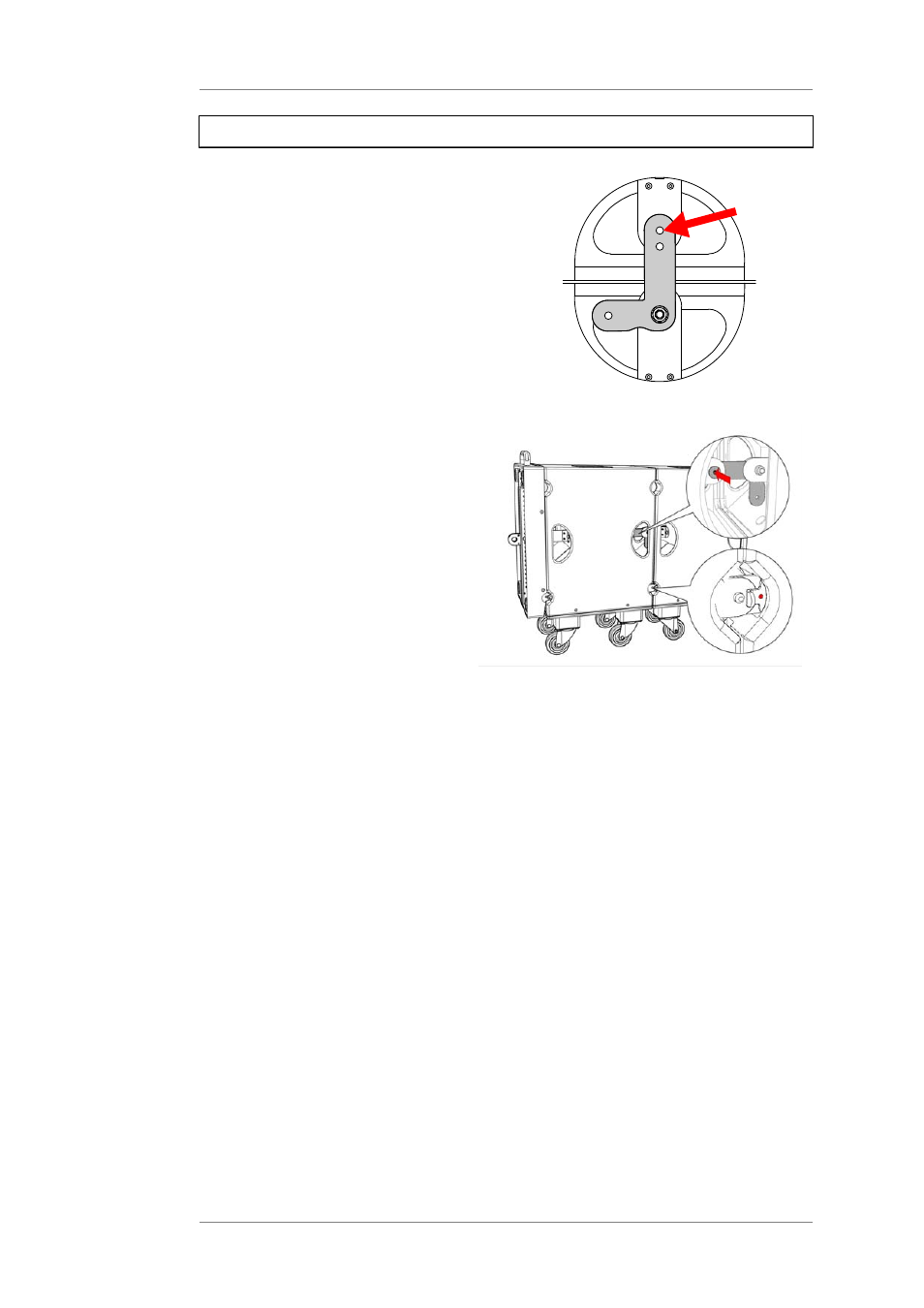

Please note that the outer drill hole of
the L-bracket's long side is connected to
the next speaker.
1. Connect the SEQUENZA 5 B
speaker with further
SEQUENZA 5 B speakers,
as described in Chapter
'Safe Connecting and
Disconnecting of the
Products' on page 21.
Make sure you can see the
red dot on the safety latch.
Swivel the L-bracket of the
already setup SEQUENZA 5 B
speaker downwards so that
the long leg is facing up.
Secure the L-bracket with
the ball lock pin.
2. The speaker is now completely assembled and secured.
If necessary, repeat the procedure for the next SEQUENZA 5 B speaker.
If you don't want to mount any more speakers, then you can now wire the speakers.
Further information in chapter 'Wiring' on page 65.
Detailed information for connecting the speakers and configuring the K&F system amplifier
TOPAS or the K&F SystemRack is in the hardware manuals.
