PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 9

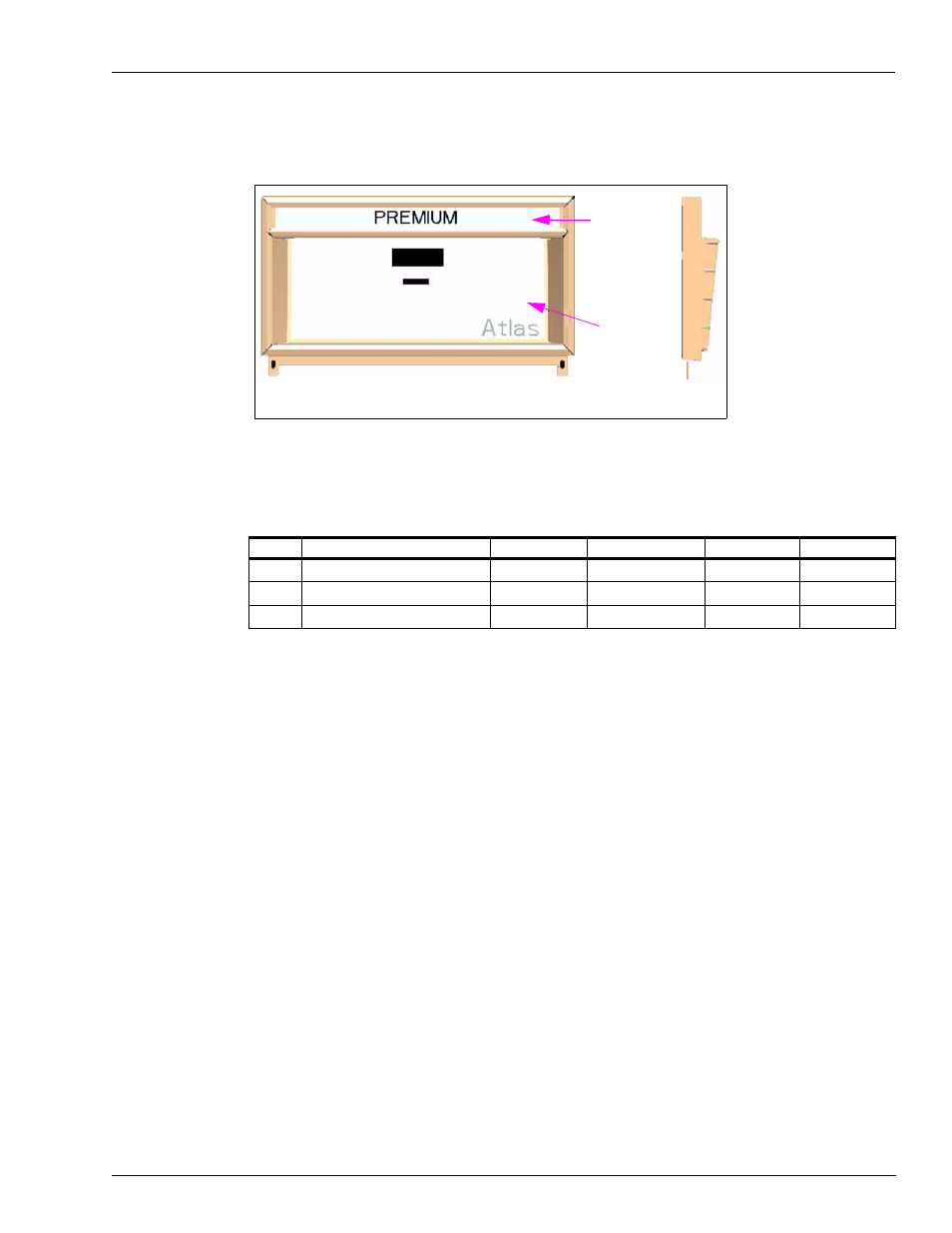

Bezels Sheathing, Doors, Bezels
Bezels
2
3
Bezel Assembly
(M08400A001)
Bezel Parts
Refer to the following table for bezel parts.
Item # Part Description Where Used Current Part Previous Part Quantity
1 Bezel Assembly All M08400A001 - 1 per bezel
2 Dial Face Graphic All See Note 1 - 1 per bezel
3 Brand Panel Graphic All See Note 2 - 1 per bezel
Notes:1) To specify Dial Face graphic, the unit model number and unit of measure must be
provided.
2) To specify the Brand Panel graphic, the description of the brand and the color of print
must be provided.
3) A wiper gasket, M08340B001 (see the figure on page 10 ), is used to seal the top inner
edge of the bezel, to prevent water leaks. Detail B, in the figure shows this gasket. It is
attached by the two screws that attach the metal top cover.
