INSTALLATIONS

IB893 User’s Manual

15


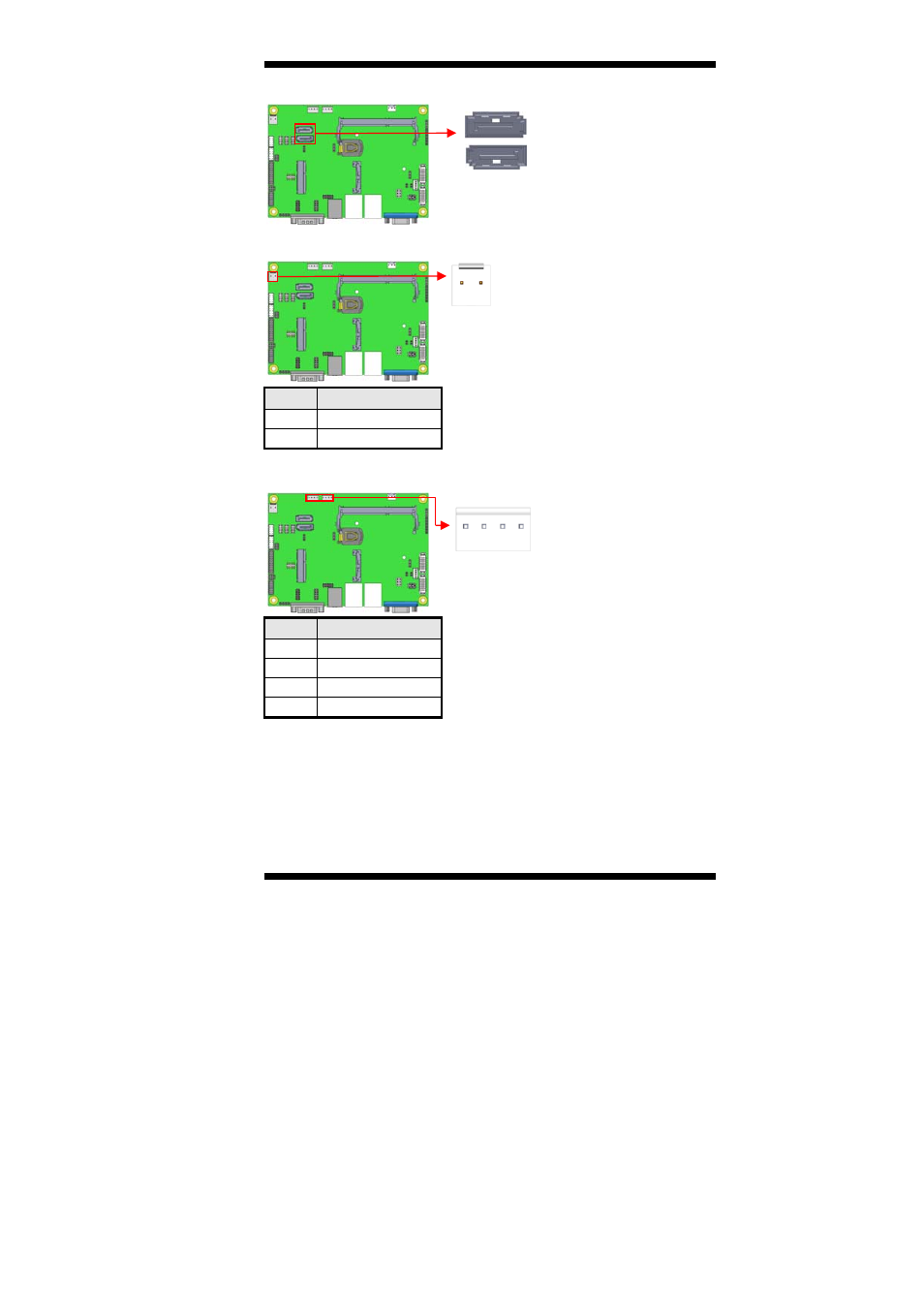

CN1, CN2: SATA Connectors


J1: Board Input Power Connector



Pin #

Signal Name

1 +12V
2 GND


J2/J22: HDD Power Connector (Output Only)

Pin #

Signal Name

1 +5V
2 Ground
3 Ground
4 +12V

2 1

1 4
