INSTALLATIONS
22
IB893 User’s Manual

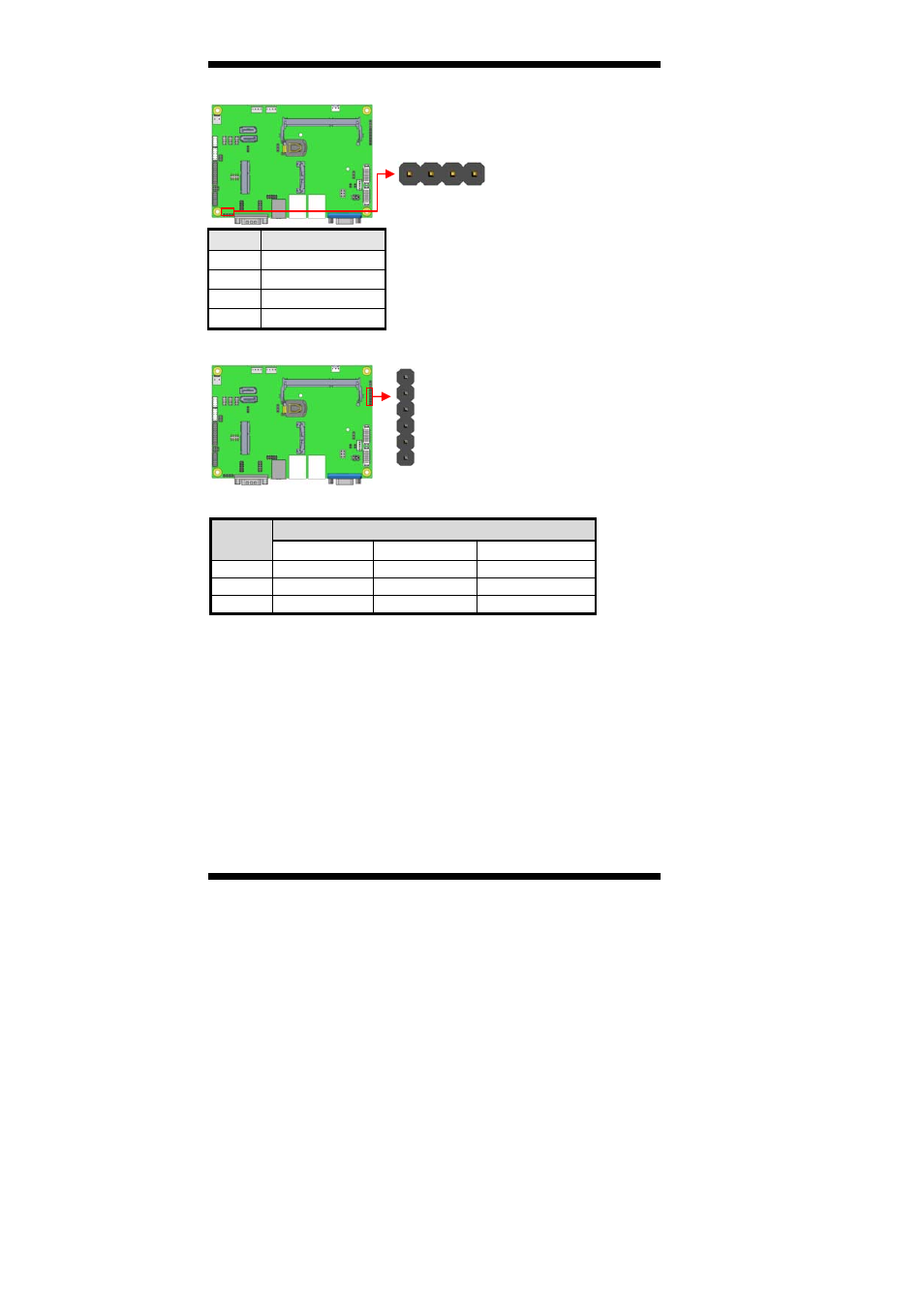

J21: Amplifier Connector
Pin #
Signal Name
1 OUTL+
2 OUTL-
3 OUTR-
4 OUTR+
J23: FPGA Program Connector
LVDS Setting (Bios\Advance\GPIO Configuration\ setting)
GPIO
LVDS Type
18Bit Single
24Bit Single
24Bit Dual
12 High
High
High
17 High
Low
High
18 Low
High
High
1 4
1
6
