6. Operation
Working with DSKs
This menu controls three things:
• DSK rates (slow, medium, and fast).
• Key parameters (clip, gain, and transparency).
• Key options (source, mode, and sense).
Clip, Gain, Transparency
Press the ‘Adjust CGT’ button to change the DSK’s clip, gain, and transparency values. The menu
will show a control at the bottom for each parameter (as shown in Figure 6-1 above):
Use the keypad icon or the knob proxy below the parameter’s green asterisk to change the value.
DSK Rates

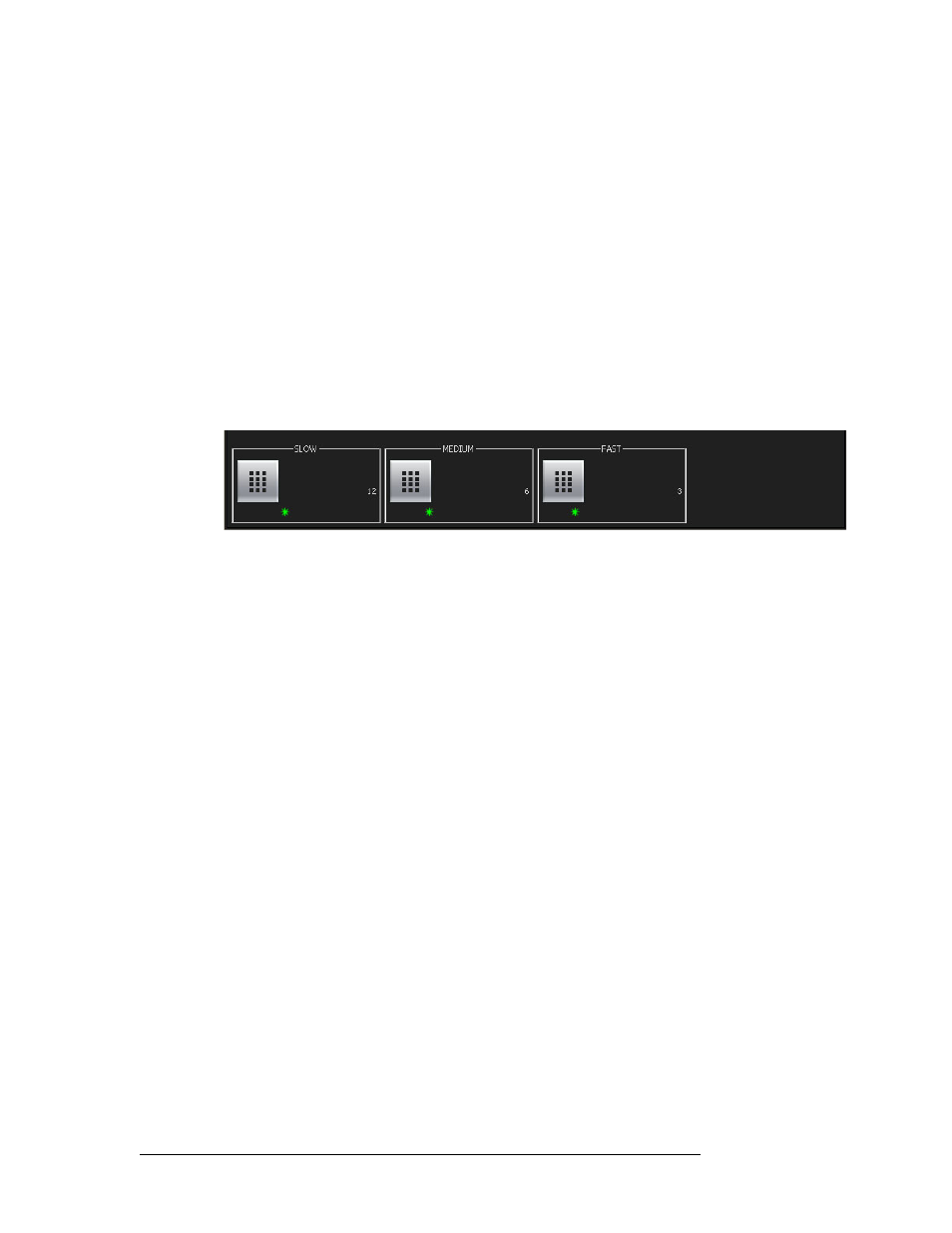

Press the ‘Adjust Rates’ button to change the DSK’s slow, medium, and fast rates. The menu will
show a control at the bottom for each rate:
Use the keypad icon or the knob proxy below the parameter’s green asterisk to change the value.
Key Options
The top 3 buttons are toggles:
• Key source — toggles between ‘Key’ and ‘Self’. Self-keys do not use a separate key input. The
key values are derived from the chroma values of the fill source.
• Key mode — full or linear.
• Key sense — normal or inverted.
Refer to the Imagestore 750 Reference Manual for definitions of these options.
